ECT and A/T Indicator for 1GR-FE: Notes

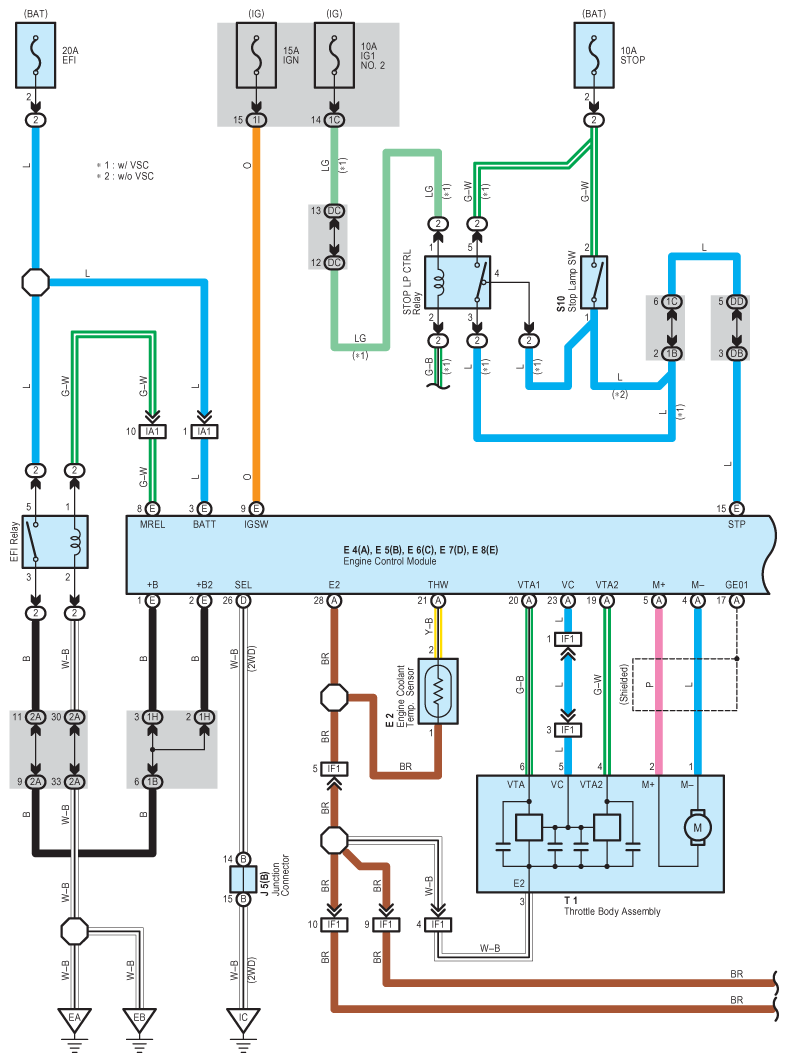

Fig 1: ECT And A/T Indicator For 1GR-FE System Wiring Diagram (1 Of 5)
G08796810Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

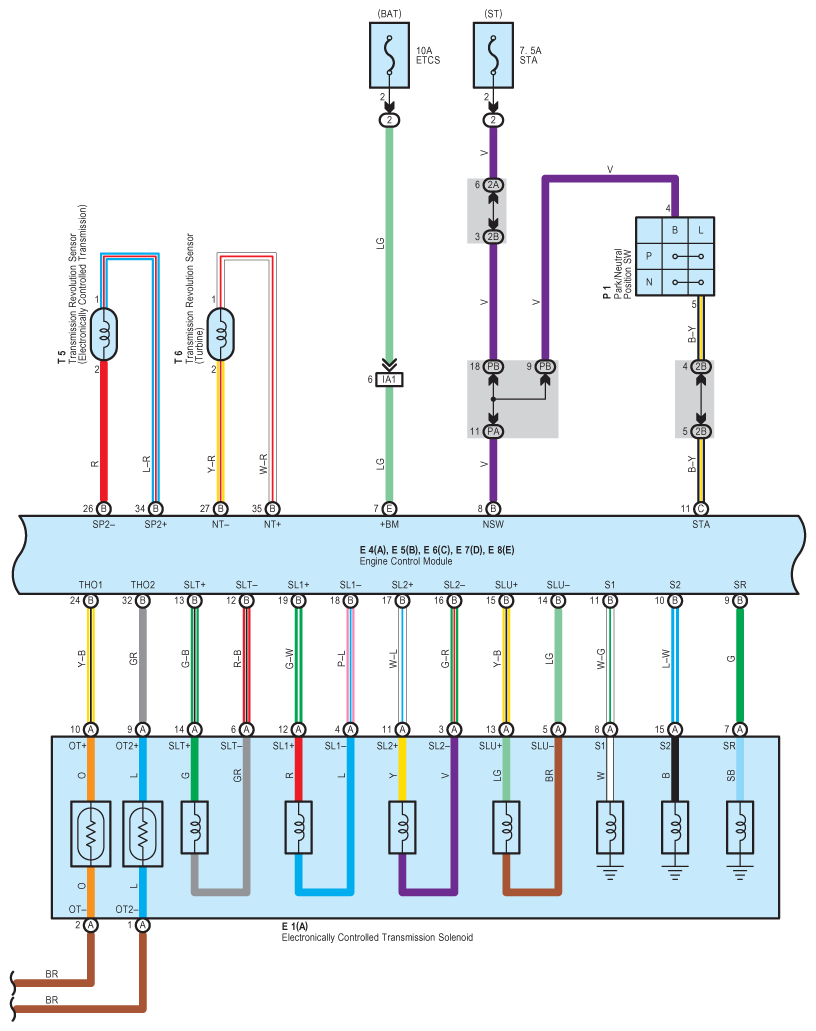

Fig 2: ECT And A/T Indicator For 1GR-FE System Wiring Diagram (2 Of 5)
G08796811Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

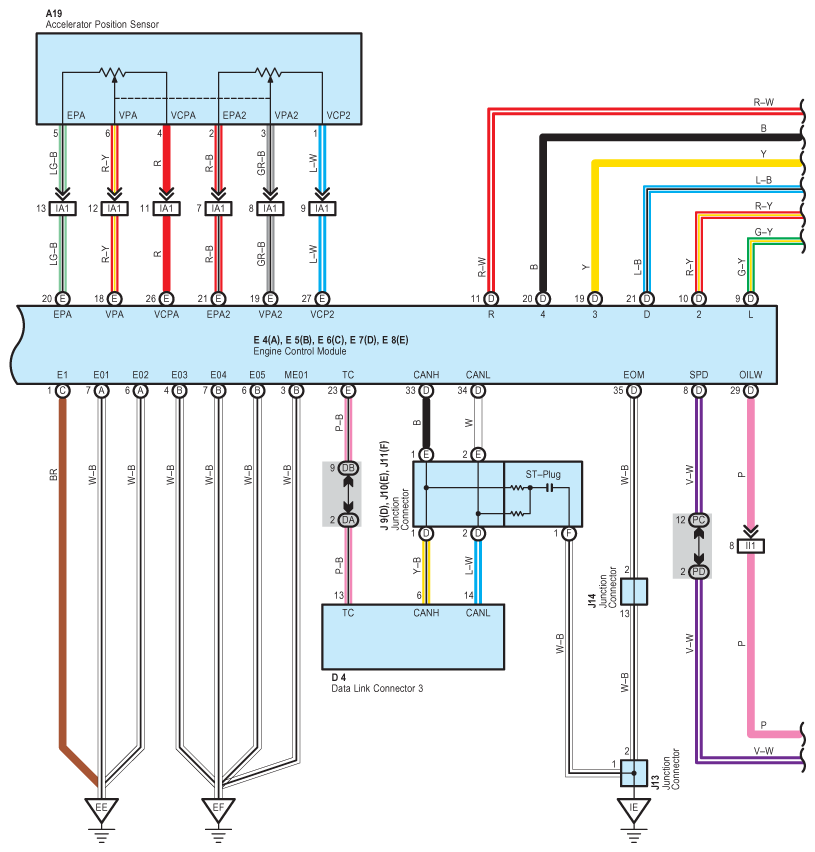

Fig 3: ECT And A/T Indicator For 1GR-FE System Wiring Diagram (3 Of 5)
G08796812Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

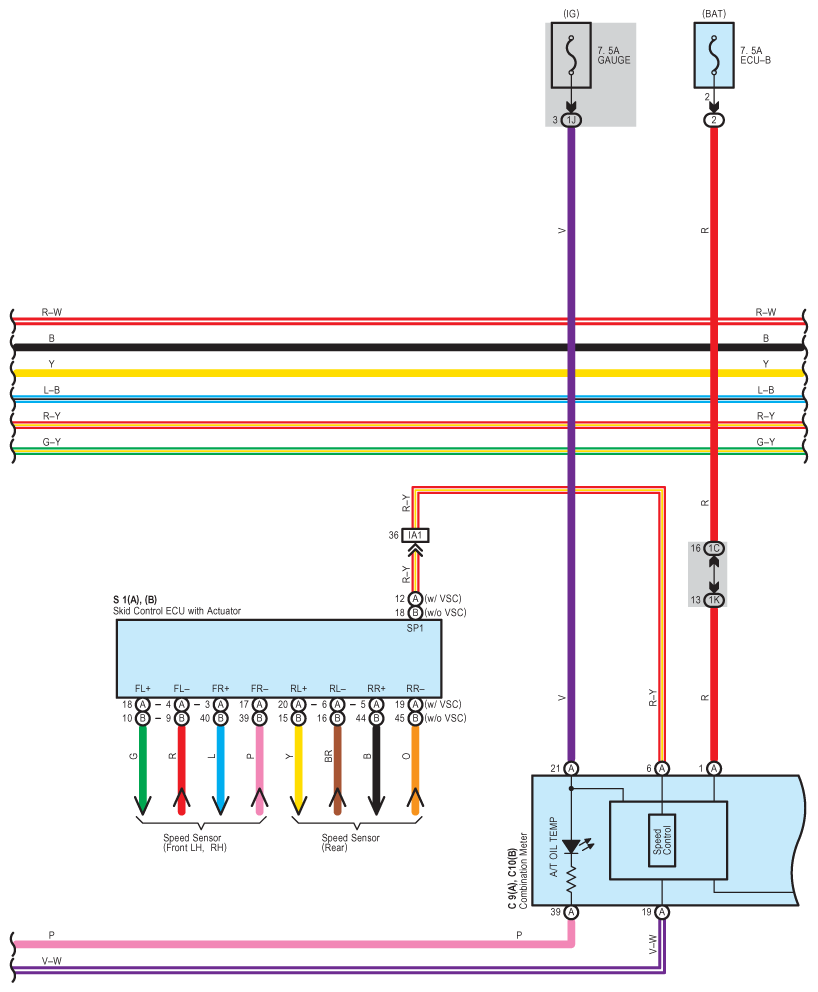

Fig 4: ECT And A/T Indicator For 1GR-FE System Wiring Diagram (4 Of 5)
G08796813Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

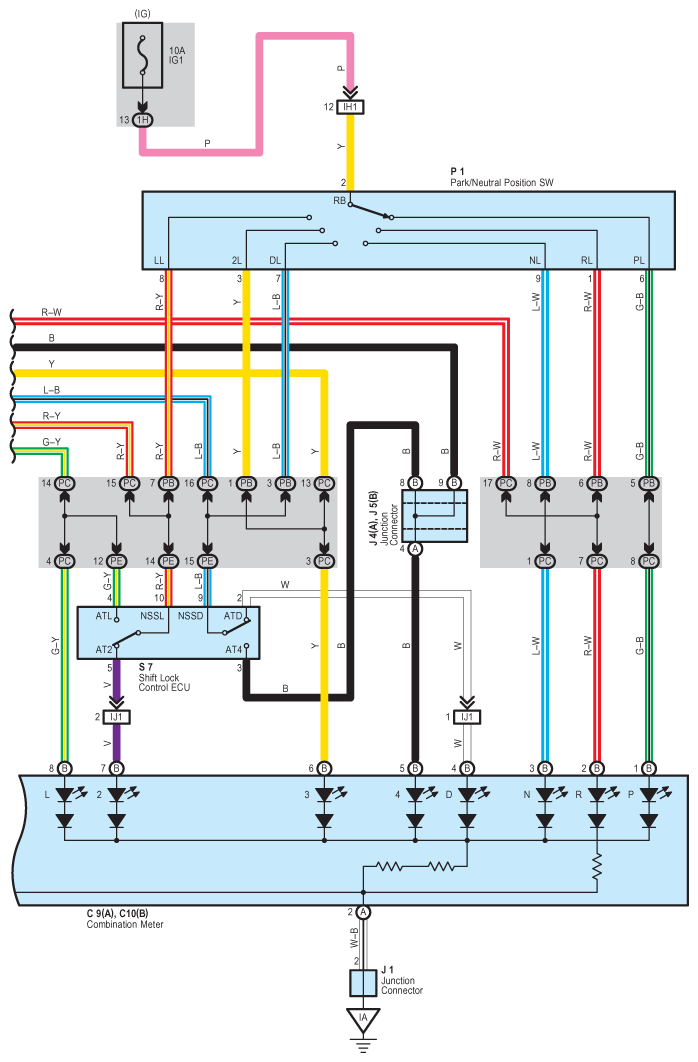

Fig 5: ECT And A/T Indicator For 1GR-FE System Wiring Diagram (5 Of 5)
G08796814Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
