Charging System (1GR-FE): Generator: Components

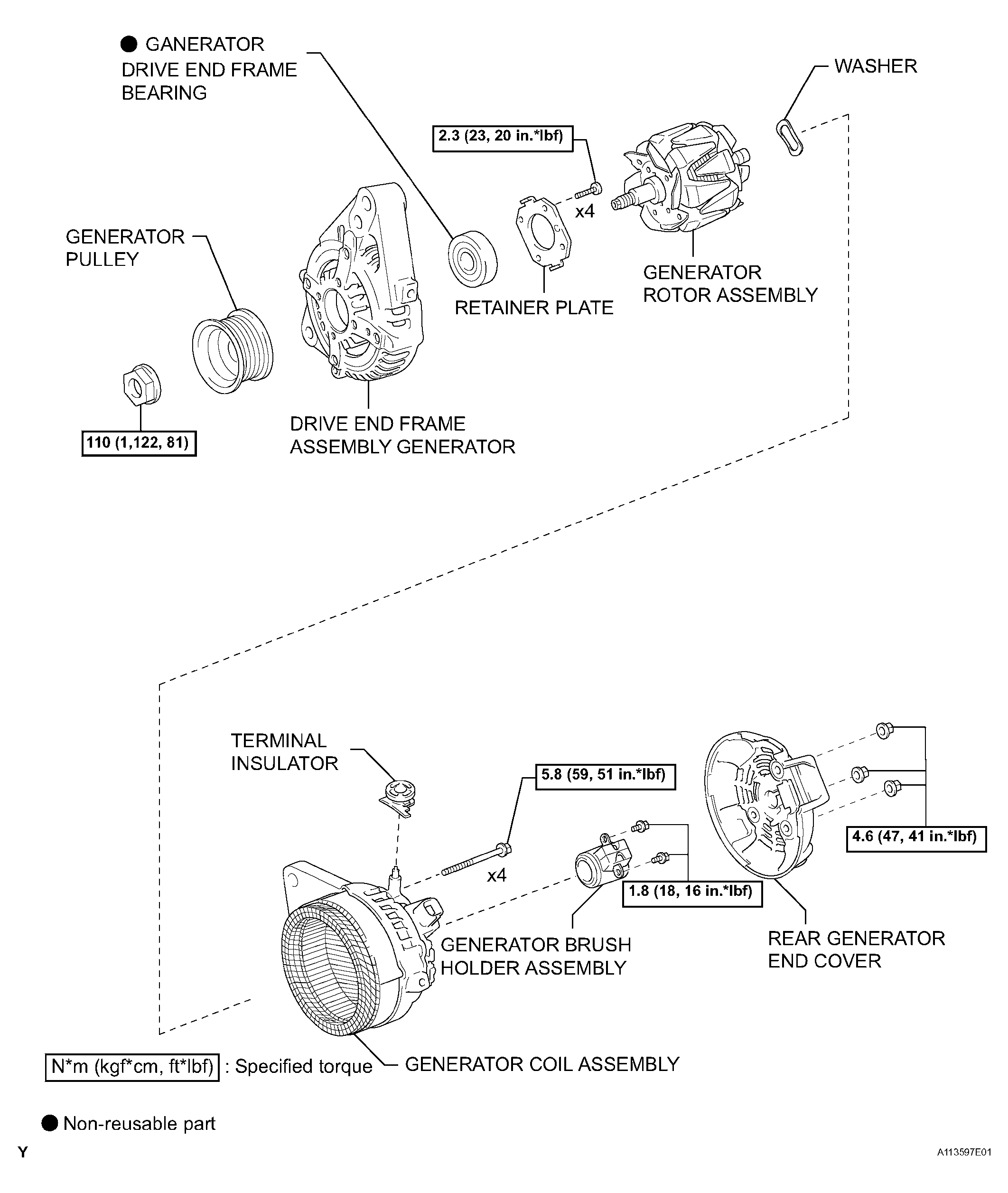

Fig 1: Identifying Generator Components & Replacements (For DENSO Made)

G04409723

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
