Home >> Toyota >> 2007 >> Sienna XLE, AWD >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Automatic Transmission - U151F >> Transmission Control Cable Assembly >> Components

Transmission Control Cable Assembly: Components

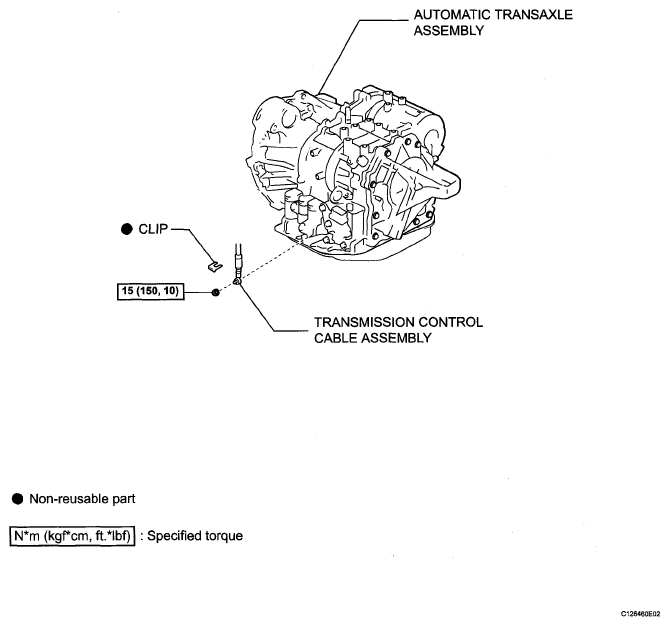

Fig 1: Transmission Control Cable Assembly Replacement Components With Torque Specifications

G05137104

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
