OEM System Circuits: Starting: Notes

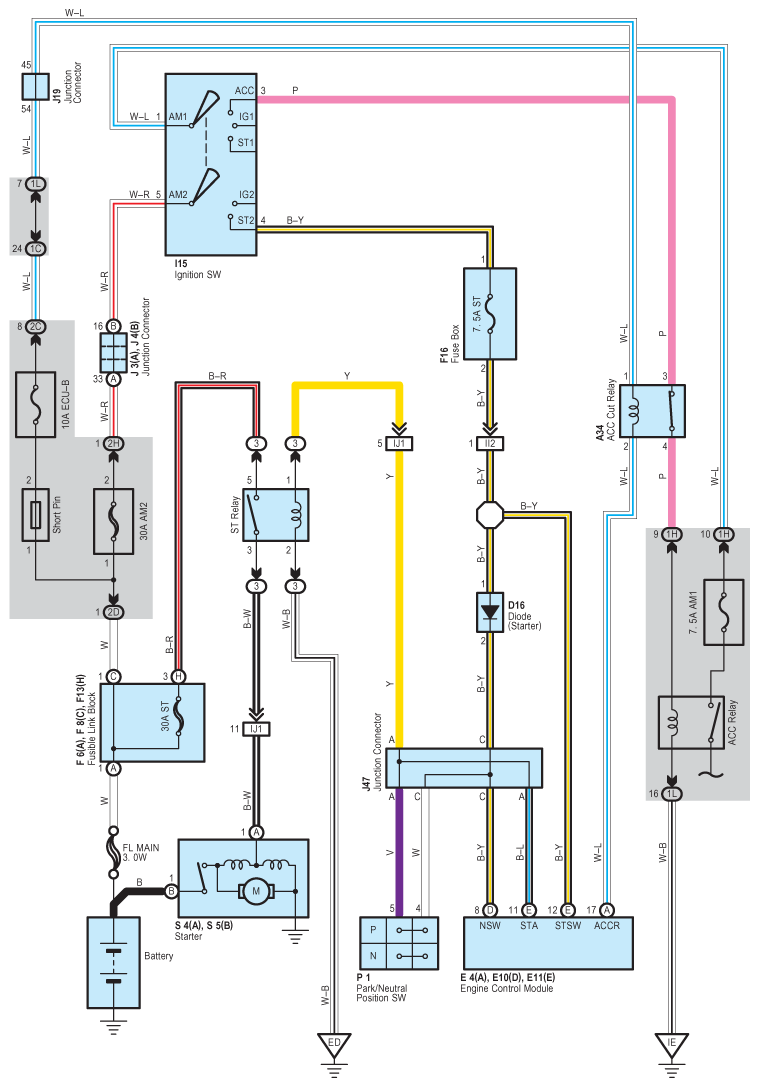

Fig 1: Starting System Wiring Diagram

G08841886

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
