Remote Control Mirror without Memory: Notes

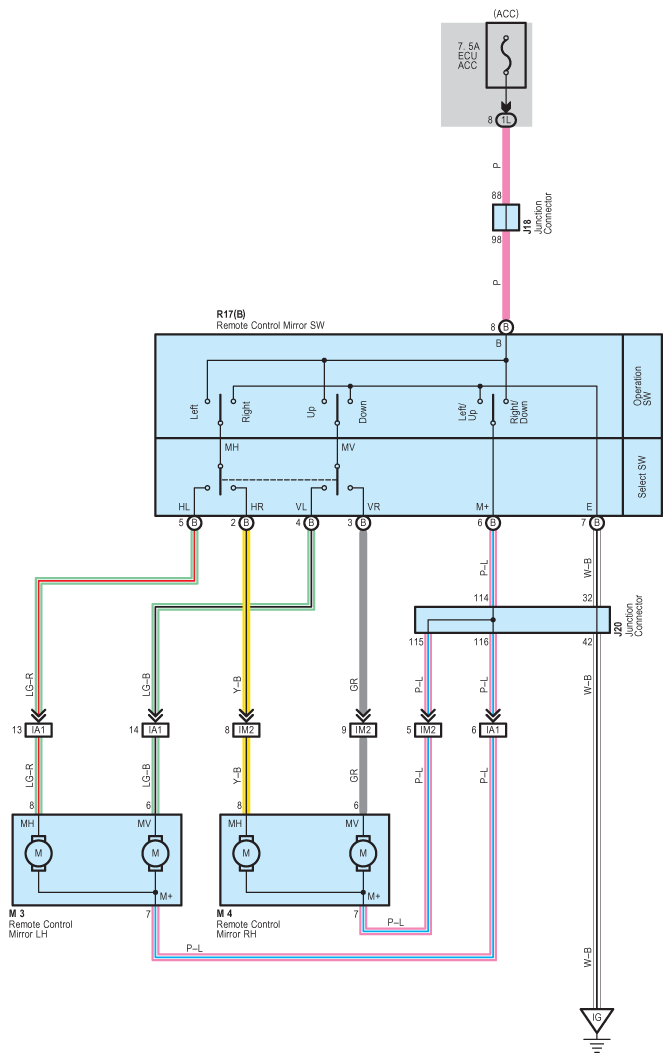

Fig 1: Remote Control Mirror System (Without Memory) Wiring Diagram

G08842041

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
