Power Seat for Driver's Seat with Memory: Notes

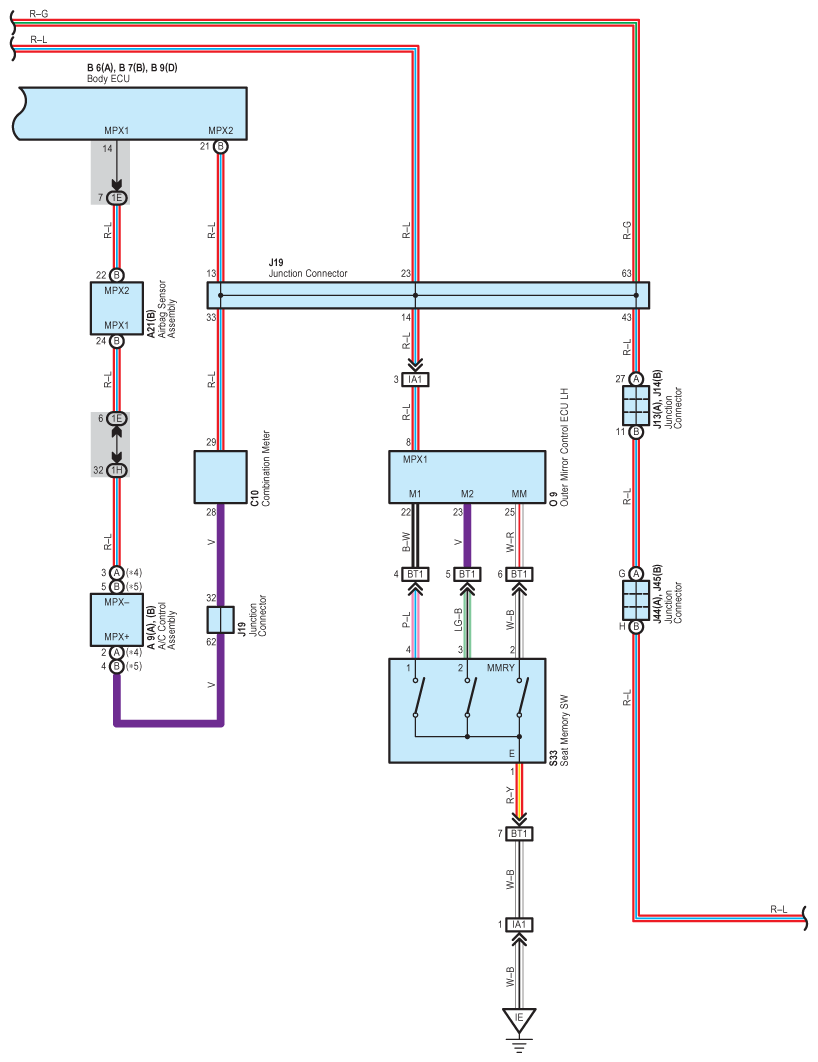

Fig 1: Power Seat For Driver's Seat System (With Memory) Wiring Diagram (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

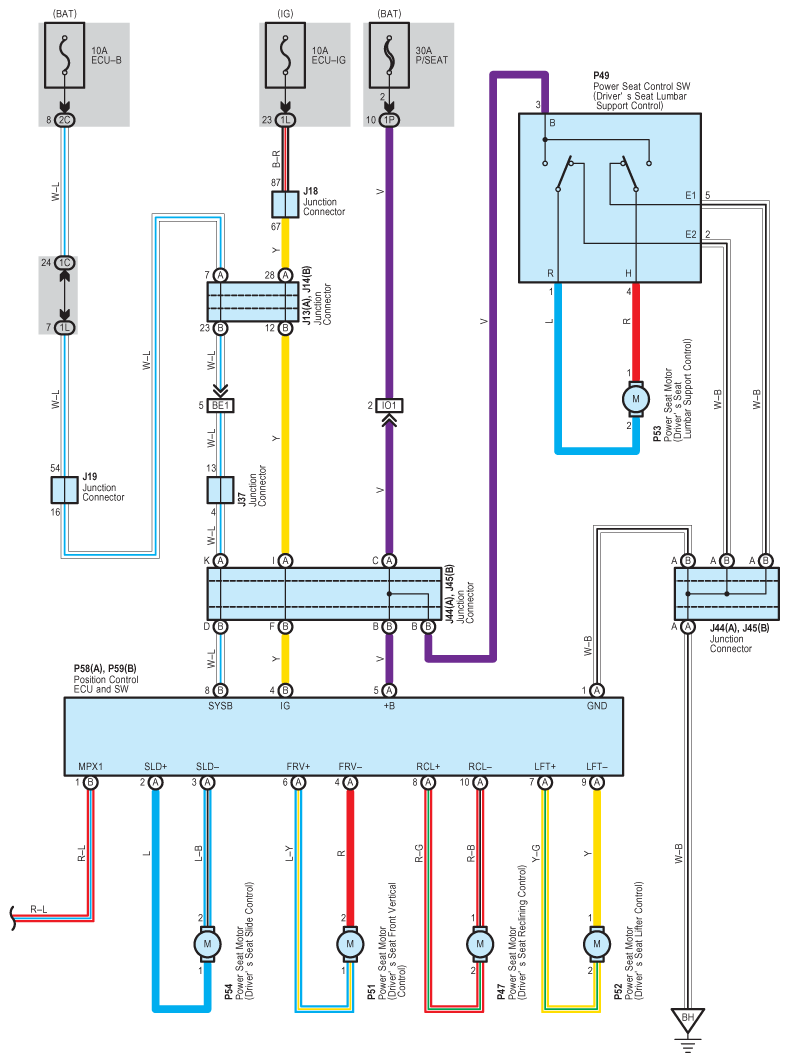

Fig 2: Power Seat For Driver's Seat System (With Memory) Wiring Diagram (2 Of 3)

Fig 3: Power Seat For Driver's Seat System (With Memory) Wiring Diagram (3 Of 3)
