Moon Roof: Notes

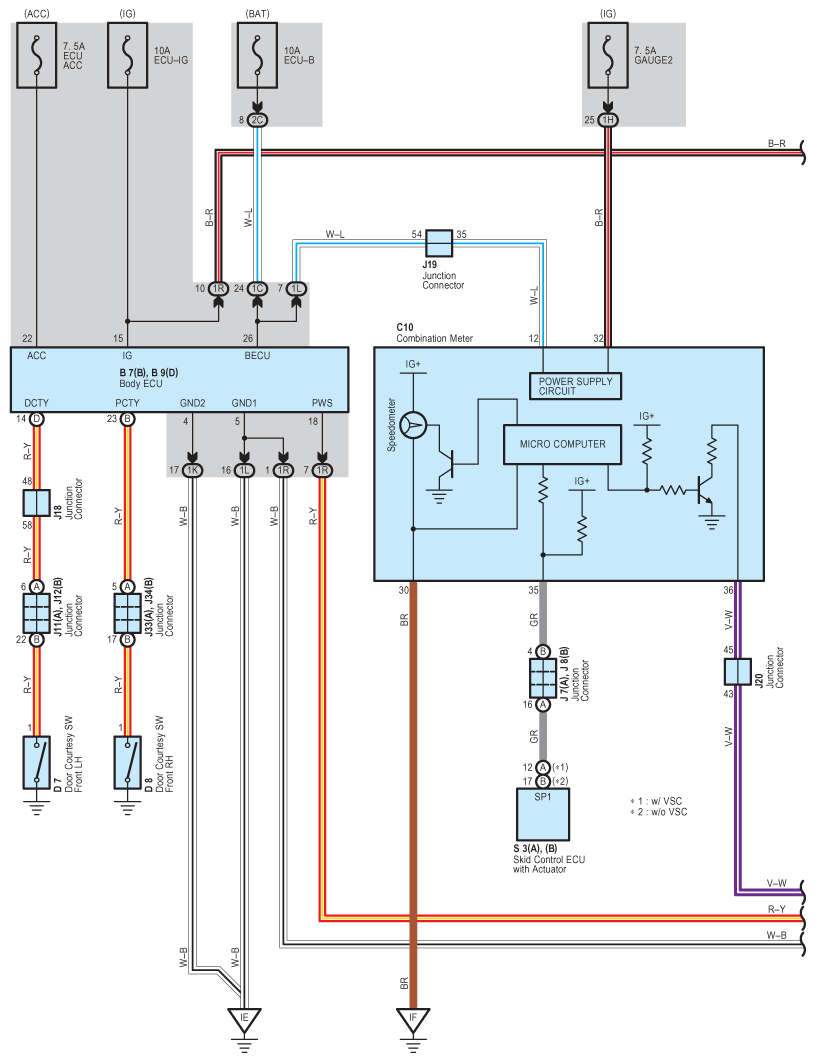

Fig 1: Moon Roof System Wiring Diagram (1 Of 2)
G08842034Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

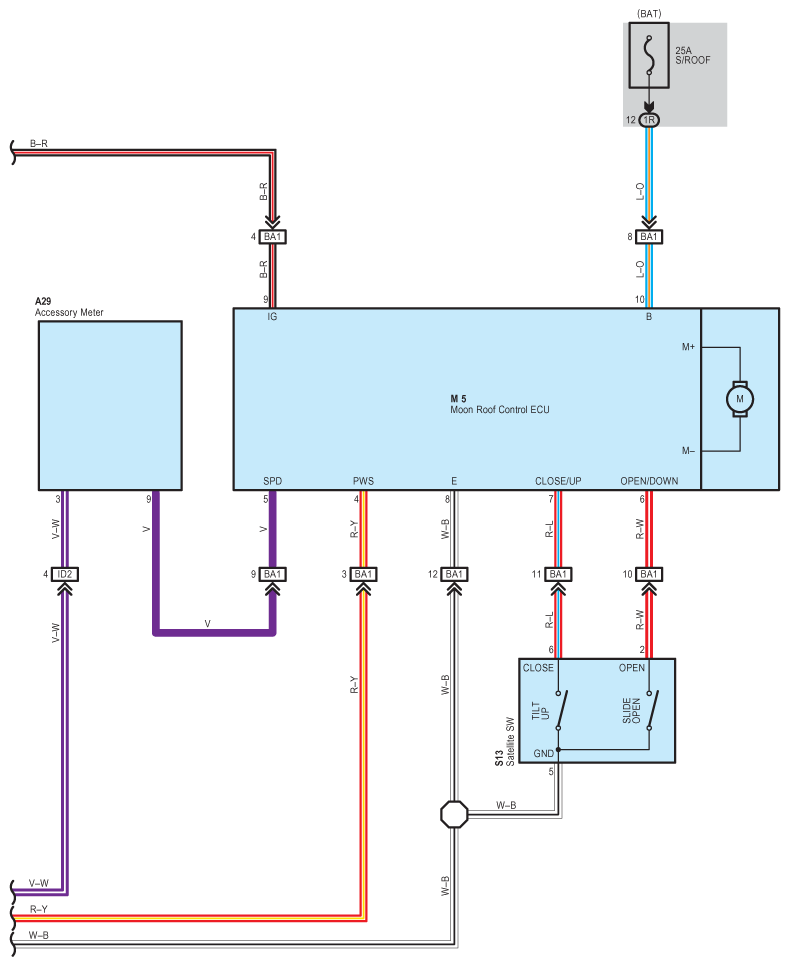

Fig 2: Moon Roof System Wiring Diagram (2 Of 2)
G08842035Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
