Parts Location

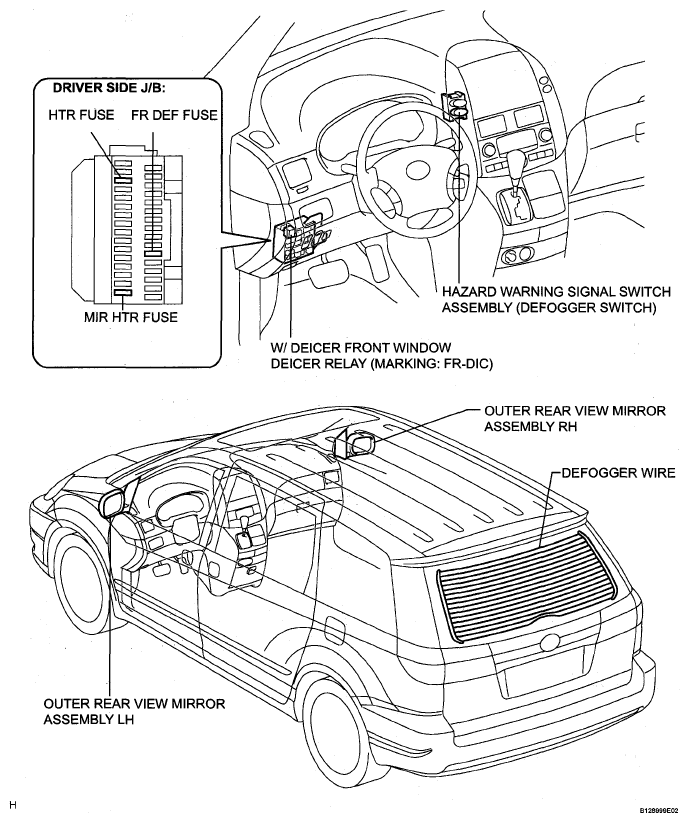

Fig 1: Identifying Window Defogger System Parts Location (1 Of 2)
G05141705Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

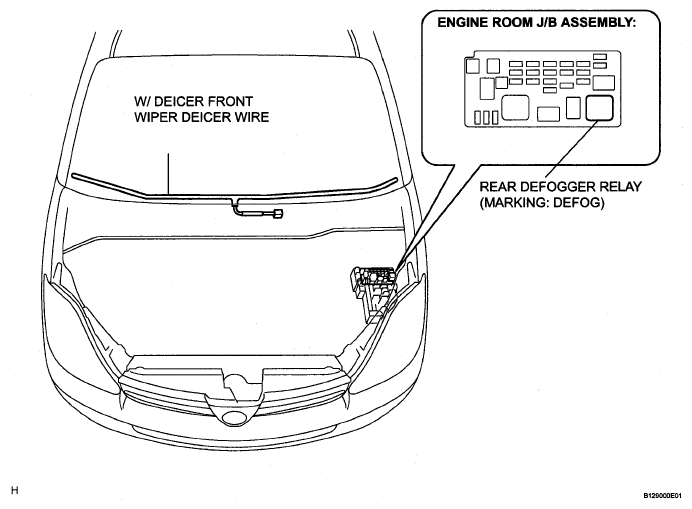

Fig 2: Identifying Window Defogger System Parts Location (2 Of 2)
G05141706Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
