Home >> Toyota >> 2007 >> Sienna XLE Limited, AWD >> Repair and Diagnosis >> Body & Frame >> Windows >> Windshield/WINDOWGLASS >> Rear Side Window Glass >> Components

Rear Side Window Glass: Components

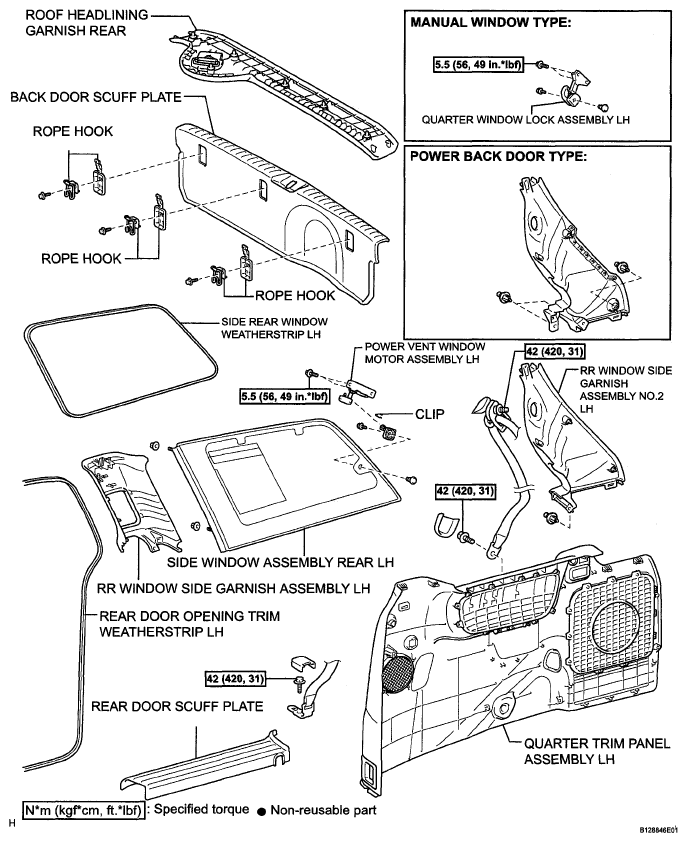

Fig 1: Rear Side Window Glass Replacement Components With Torque Specifications

G05141693

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
