POWER WINDOW CONTROL SYSTEM (w/o Jam Protection Function)
>>
Parts Location
Parts Location

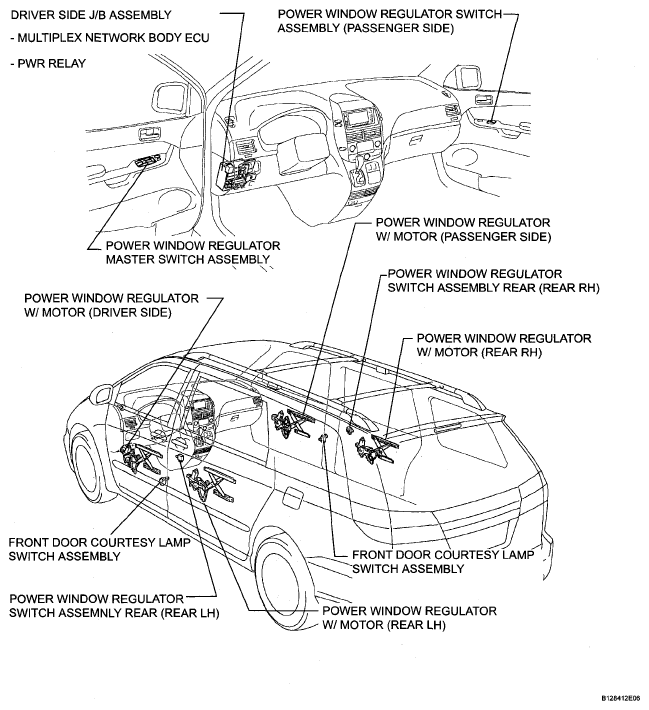

Fig 1: Identifying Power Window Control System Parts Location (W/O Jam Protection Function)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
