Home >> Toyota >> 2007 >> Sienna XLE Limited, AWD >> Repair and Diagnosis >> Body & Frame >> Windows >> Windshield/WINDOWGLASS >> Back Door Glass >> Components

Back Door Glass: Components

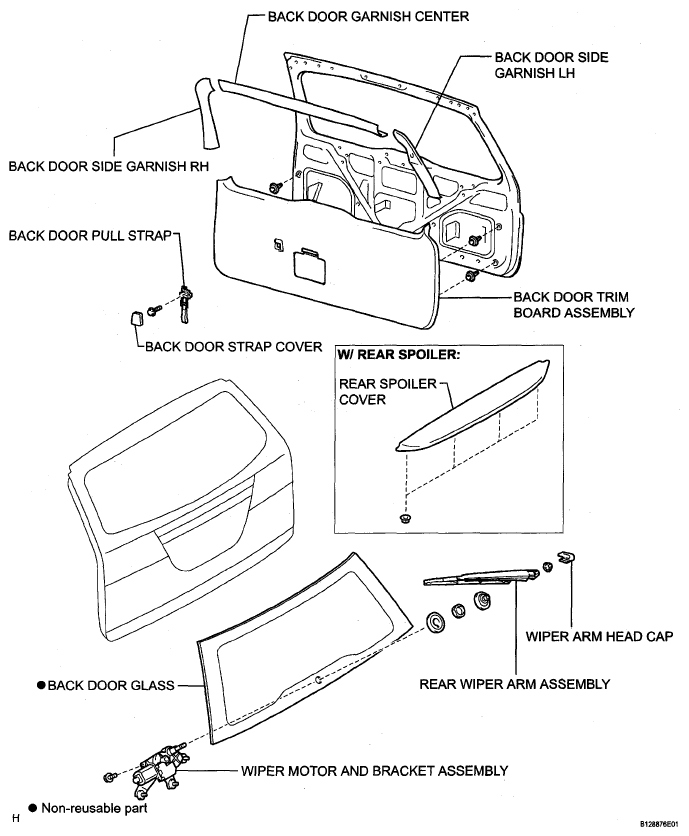

Fig 1: Identifying Back Door Glass Components

G05141696

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
