Home >> Toyota >> 2007 >> Sienna LE, FWD >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Automatic Transmission - U151E >> Transmission Control Cable Assembly >> Components

Transmission Control Cable Assembly: Components

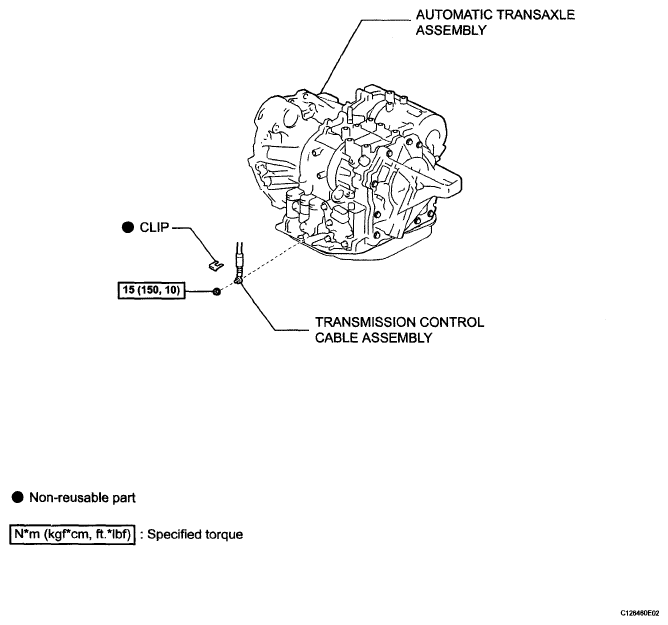

Fig 1: Transmission Control Cable Assembly Replacement Components With Torque Specifications

G05246700

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
