Shift Lever: Reassembly

INSTALL POSITION INDICATOR SLIDE COVER
1. Install the position indicator slide cover No.2 to the position indicator slide cover.

  Fig 1: Installing Position Indicator Slide Cover No. 2
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL POSITION INDICATOR SLIDE COVER
1. Install the position indicator slide cover to the shift lever assembly.
2. Install the shift lever slide cover guide to the shift lever assembly.
INSTALL POSITION INDICATOR LIGHT BULB
1. Install the shift position indicator light bulb to the indicator light wire sub-assembly.

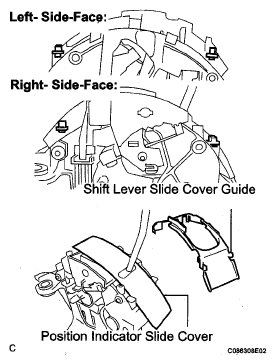

  Fig 2: Identifying Position Indicator Slide Cover And Shift Lever Slide Cover Guide
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL INDICATOR LIGHT WIRE SUB-ASSEMBLY
1. Install the indicator light wire sub-assembly to the shift lever assembly.

  Fig 3: Identifying Indicator Light Wire Sub-Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
