Shift Lever: Installation

1. Install shift lever assembly to the vehicle with the 4 bolts.

   Torque: 21 N*m (214 kgf*cm, 15 ft.*lbf)

   NOTE: Into datum hole of shift lever into datum pin of instrument lower.
2. Connect the 2 connectors to the shift lever assembly.
   Fig 1: Locating Shift Lever Assembly Bolts

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Install the cable outer to the shift lever plate
   Fig 2: Installing Cable Outer To Shift Lever Plate

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

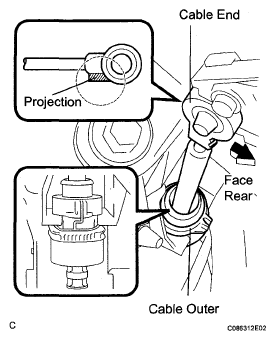

2. When installing the transmission control cable assembly on the shift lever plate, place the projection to the shift lever plate (Fig 3). Confirm that the spring in the shift cable outer has moved to the position (Fig 3) shown in the illustration.

   Confirm that the shift cable is installed on the shift lever plate properly.

   NOTE:

   • To prevent torsion of the inner cable, the projection on the eye end should face rear.
   • Push the cable end to the bottom of the pin.
     Fig 3: Identifying Shift Cable Outer Spring Position

     Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

(See INSTALLATION )

1. Install the shift lever cap to the floor shift position indicator housing assembly.
   Fig 4: Identifying Shift Lever Cap

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. install the position indicator housing assembly to the instrument cluster finish panel assembly center.
   Fig 5: Identifying Position Indicator Housing Assembly

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. install the shift lever knob sub-assembly.
   Fig 6: Identifying Shift Lever Knob Sub-Assembly

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

(See ADJUSTMENT )

HINT:

(See ADJUSTMENT )

HINT:

(See ON-VEHICLE INSPECTION )

HINT:

(See ON-VEHICLE INSPECTION )

HINT:

(See ON-VEHICLE INSPECTION )
