Shift Lever: Disassembly

REMOVE INDICATOR LIGHT WIRE SUB-ASSEMBLY
1. Remove the indicator light wire sub assembly from the position indicator light guide.
REMOVE POSITION INDICATOR LIGHT BULB
1. Remove the shift position indicator light bulb from the indicator light wire sub-assembly

  Fig 1: Identifying Indicator Light Wire Sub Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE POSITION INDICATOR SLIDE COVER
1. Remove the shift lever slide cover guide from the shift lever assembly.

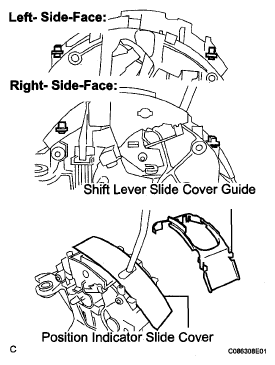

  Fig 2: Identifying Shift Lever Slide Cover Guide And Position Indicator Slide Cover
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Remove the position indicator slide cover from the shift lever assembly.

  Fig 3: Identifying Position Indicator Slide Cover
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE POSITION INDICATOR SLIDE COVER
1. Remove the position indicator slide cover No.2 from the position indicator slide cover.

  Fig 4: Removing Position Indicator Slide Cover No. 2
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
