Shift Lever: Components

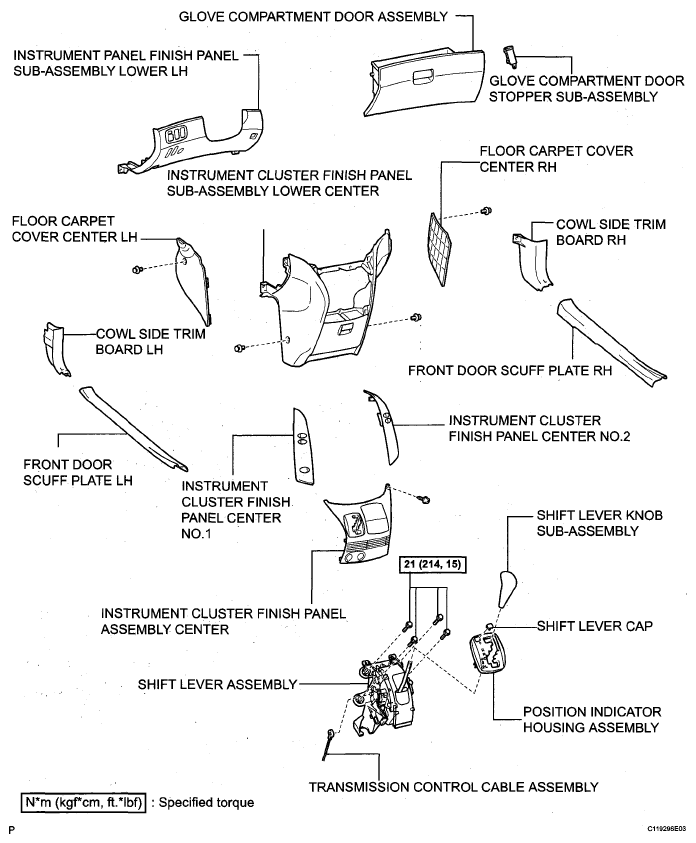

Fig 1: Shift Lever Replacement Components With Torque Specifications (1 Of 2)
G05137081Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

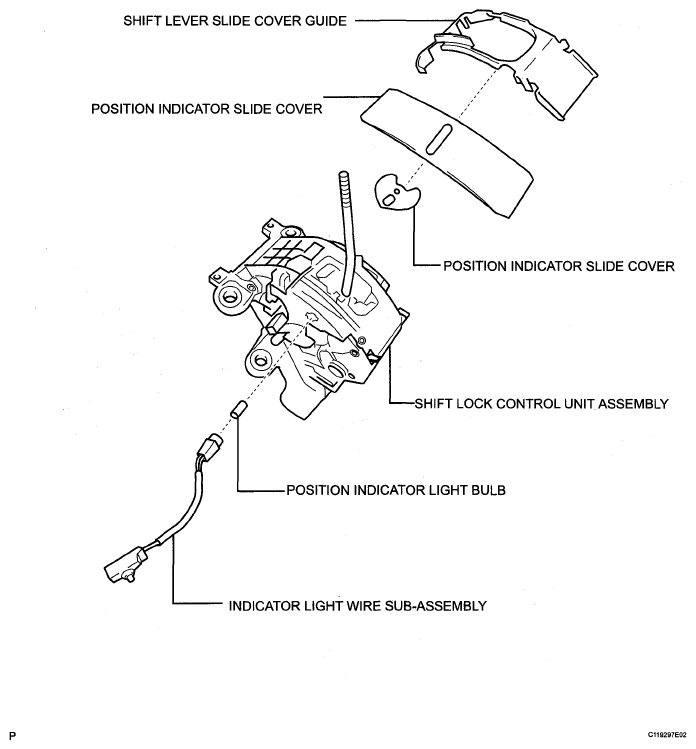

Fig 2: Identifying Shift Lever Components (2 Of 2)
G05137082Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
