Manual Air Conditioning (Rear): Notes

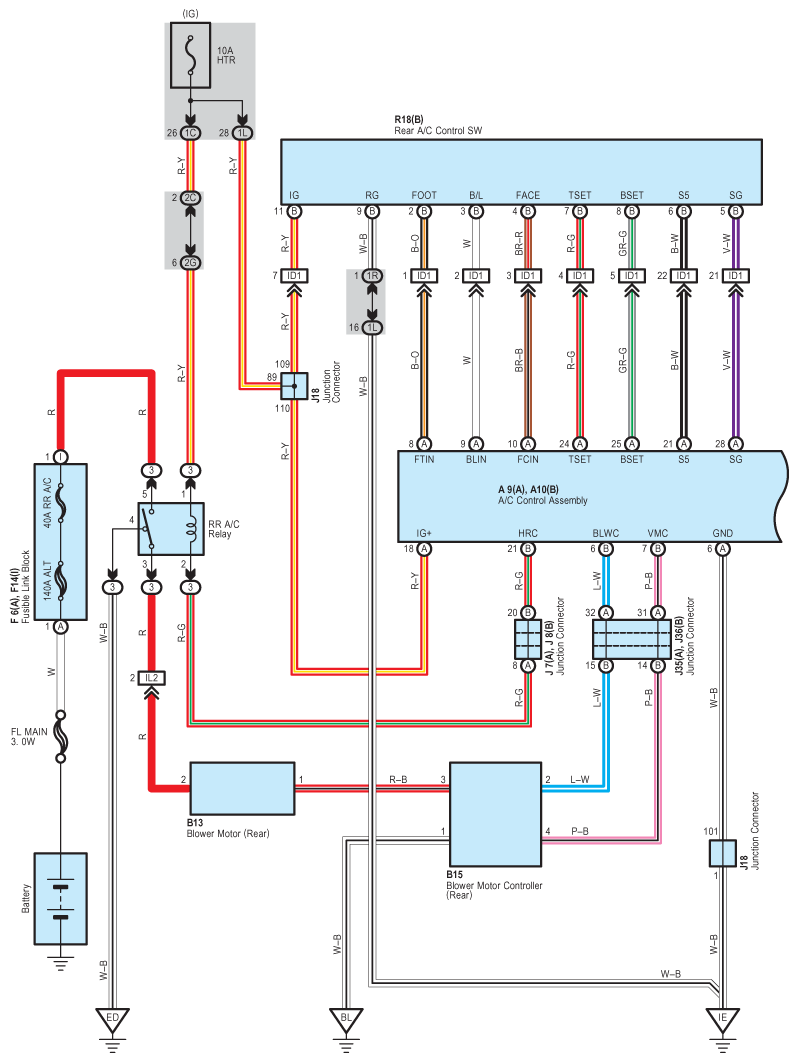

Fig 1: Rear Manual Air Conditioning System Wiring Diagram (1 Of 2)
G08842100Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

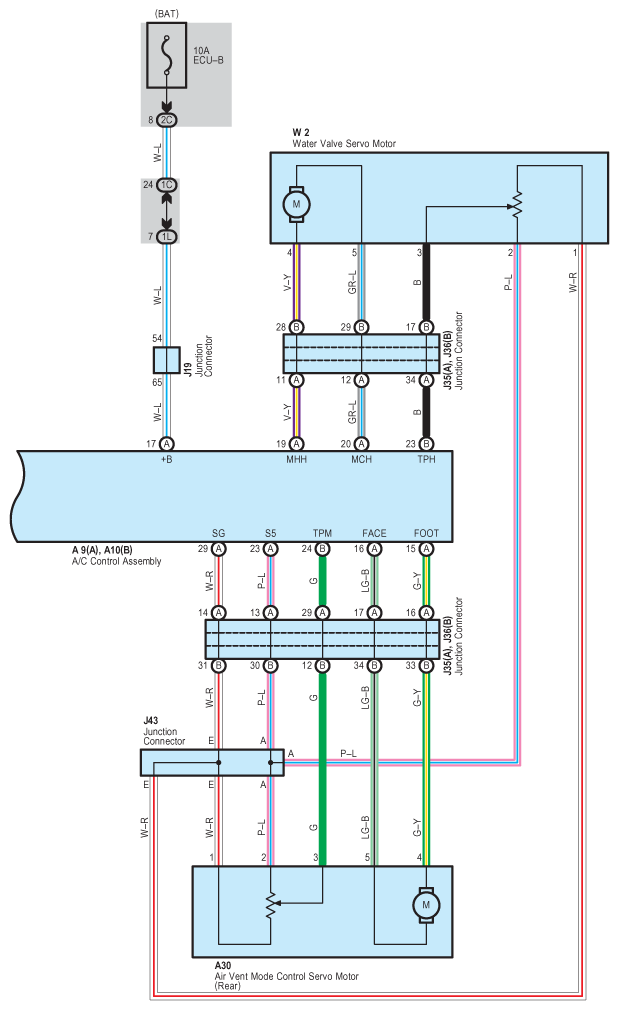

Fig 2: Rear Manual Air Conditioning System Wiring Diagram (2 Of 2)
G08842101Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
