Rear Axle Hub Bolt: Components

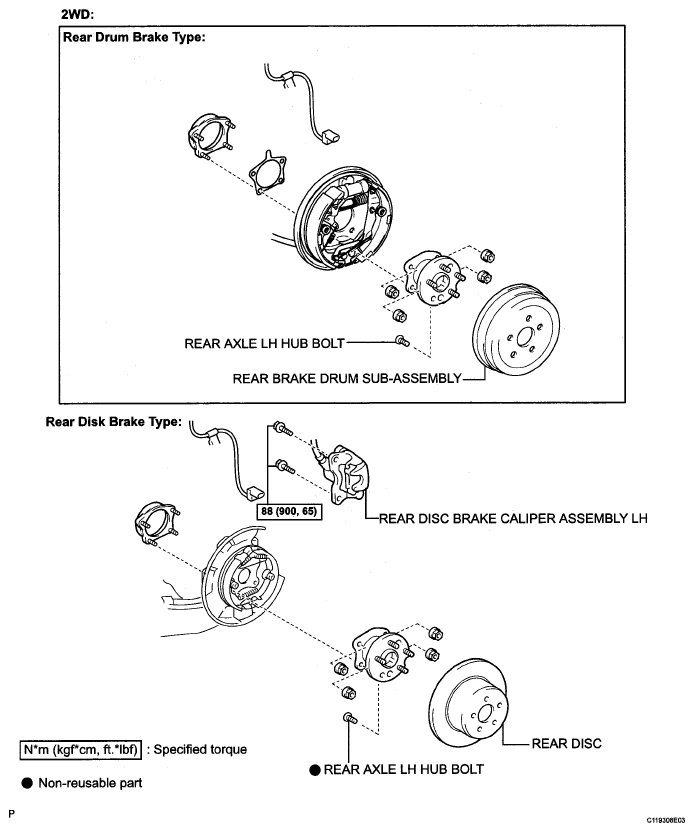

Fig 1: Rear Axle Hub Bolt Replacement Components With Torque Specifications (2WD)
G05140199Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

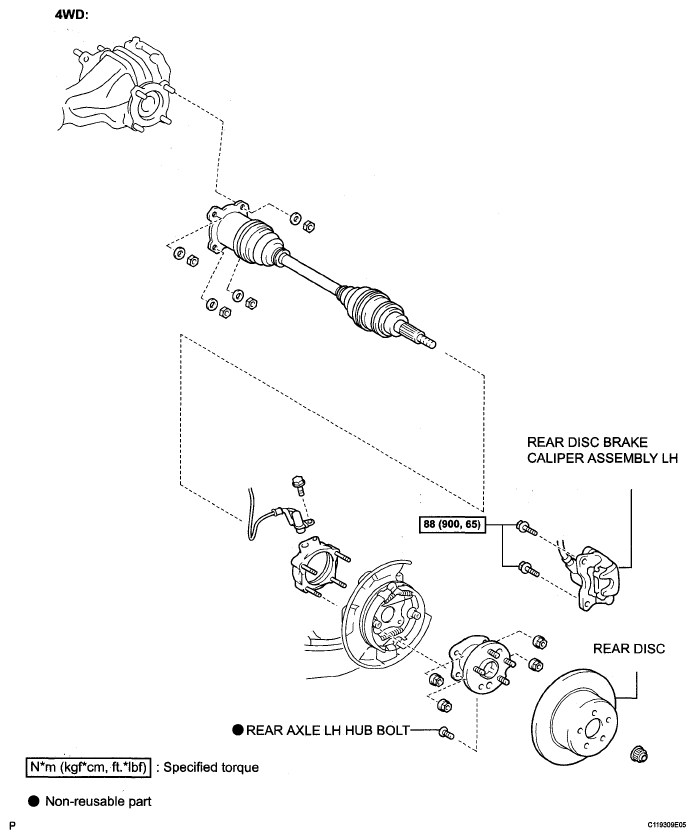

Fig 2: Rear Axle Hub Bolt Replacement Components With Torque Specifications (4WD)
G05140200Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
