Driving Position Memory Switch Circuit (w/ Memory): Wiring Diagram

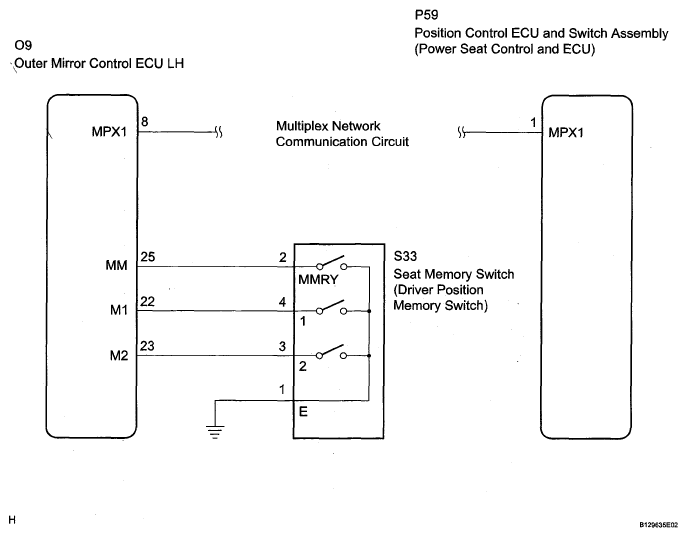

Fig 1: Driving Position Memory Switch (w/ Memory) - Wiring Diagram

G05141805

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
