Roof Headlining: Components

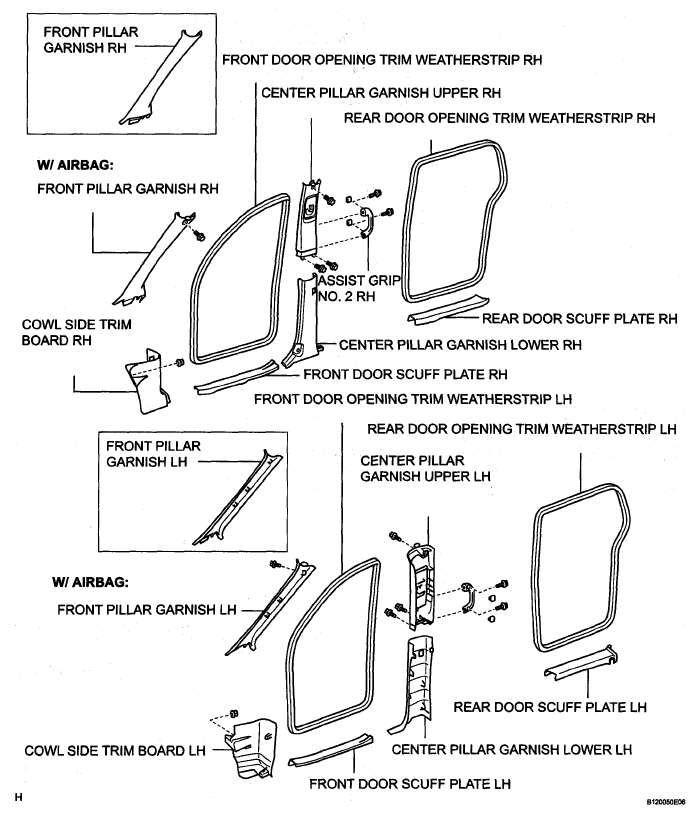

Fig 1: Identifying Roof Headlining Components (1 Of 4)
G05143187Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

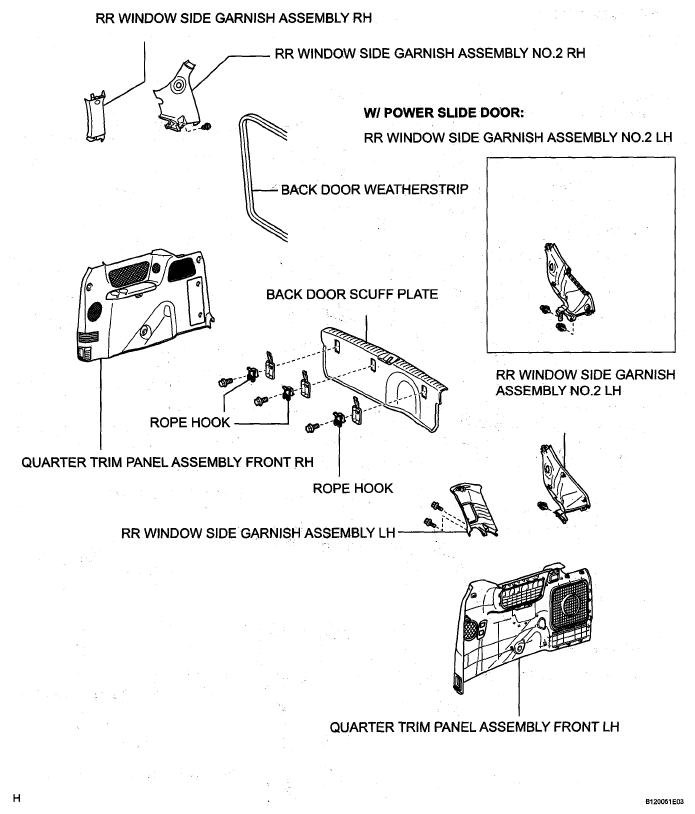

Fig 2: Identifying Roof Headlining Components (2 Of 4)
G05143188Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

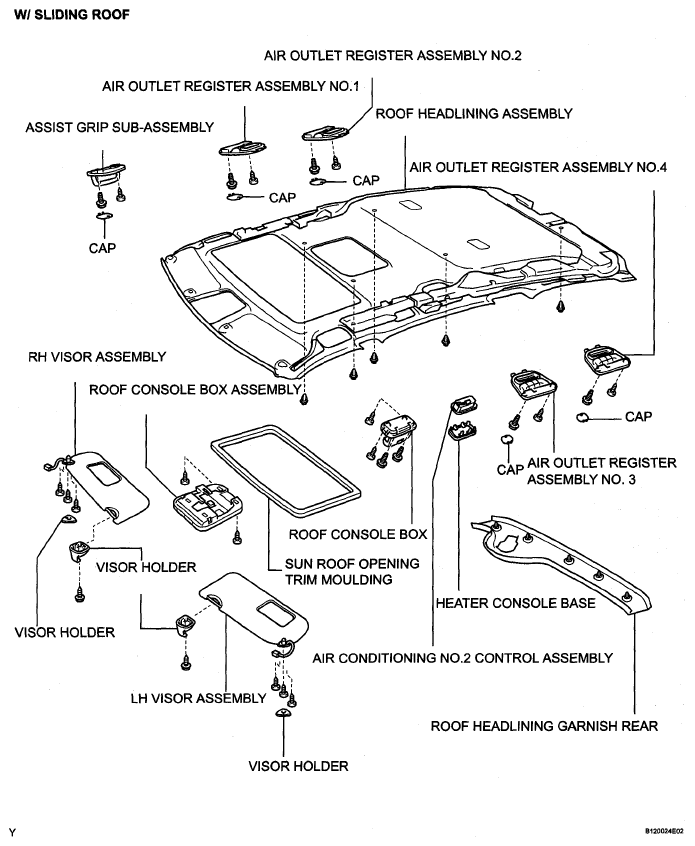

Fig 3: Identifying Roof Headlining Components (3 Of 4)
G05143189Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

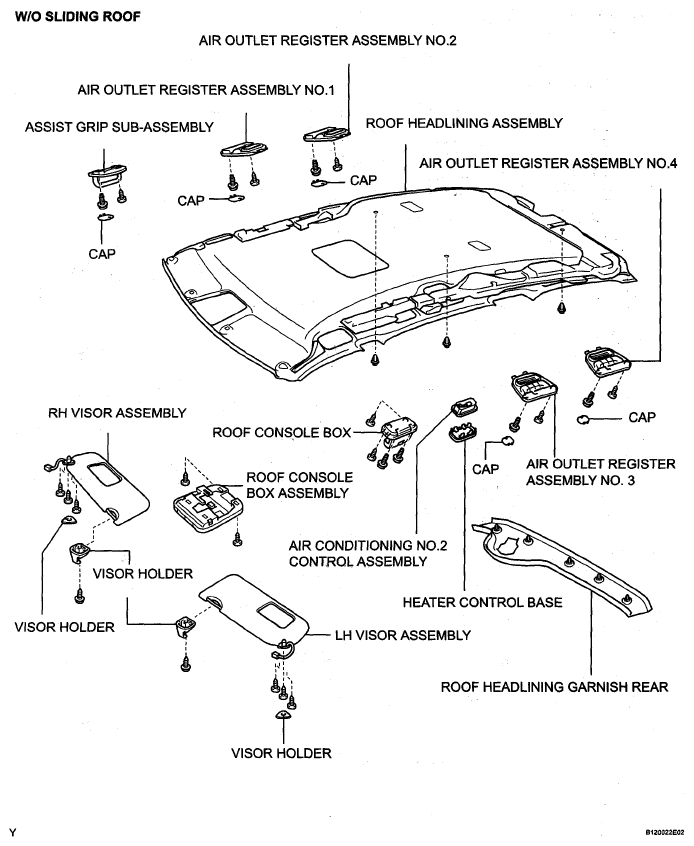

Fig 4: Identifying Roof Headlining Components (4 Of 4)
G05143190Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
