Slide Door Closer: Notes

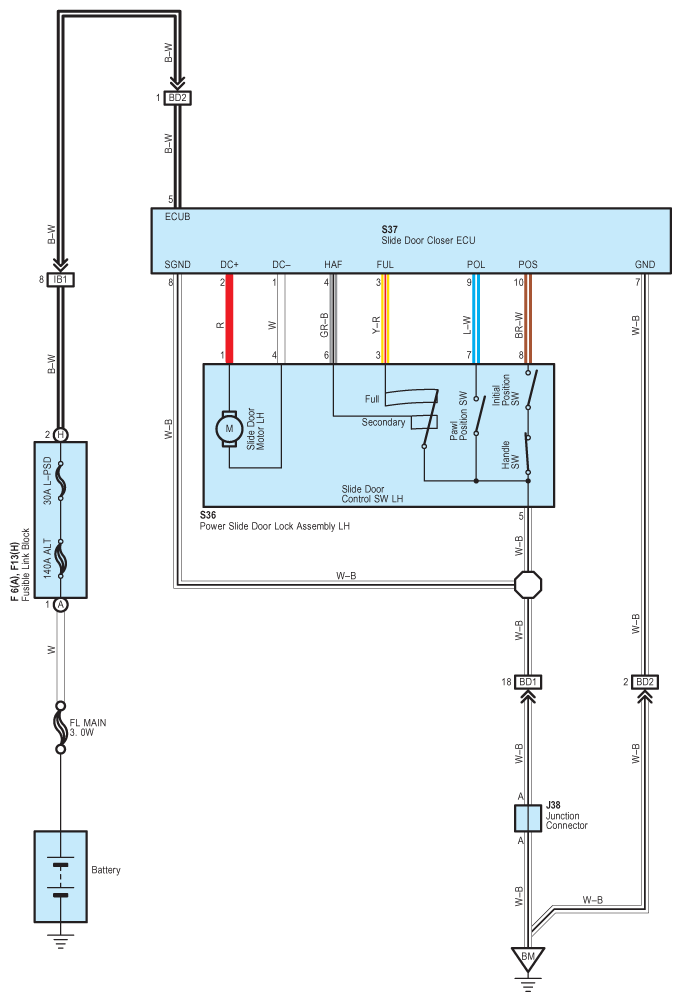

Fig 1: Slide Door Closer System Wiring Diagram

G08841969

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
