Power Slide Door (RH): Notes

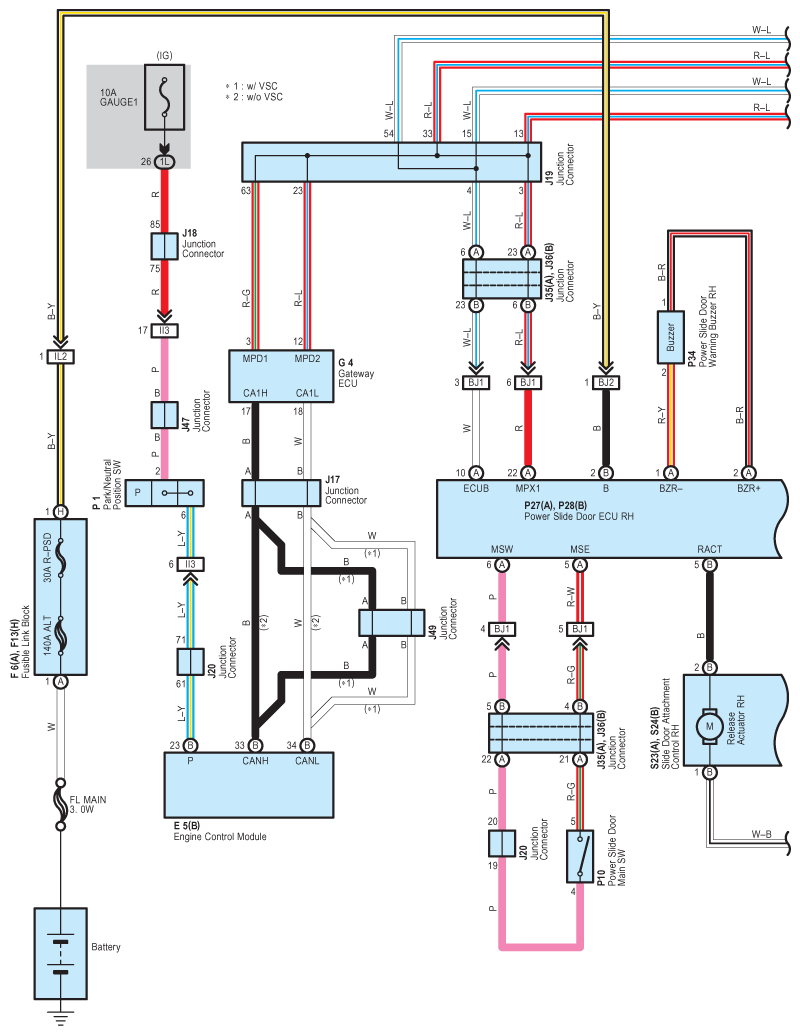

Fig 1: RH Power Slide Door System Wiring Diagram (1 Of 4)
G08841965Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

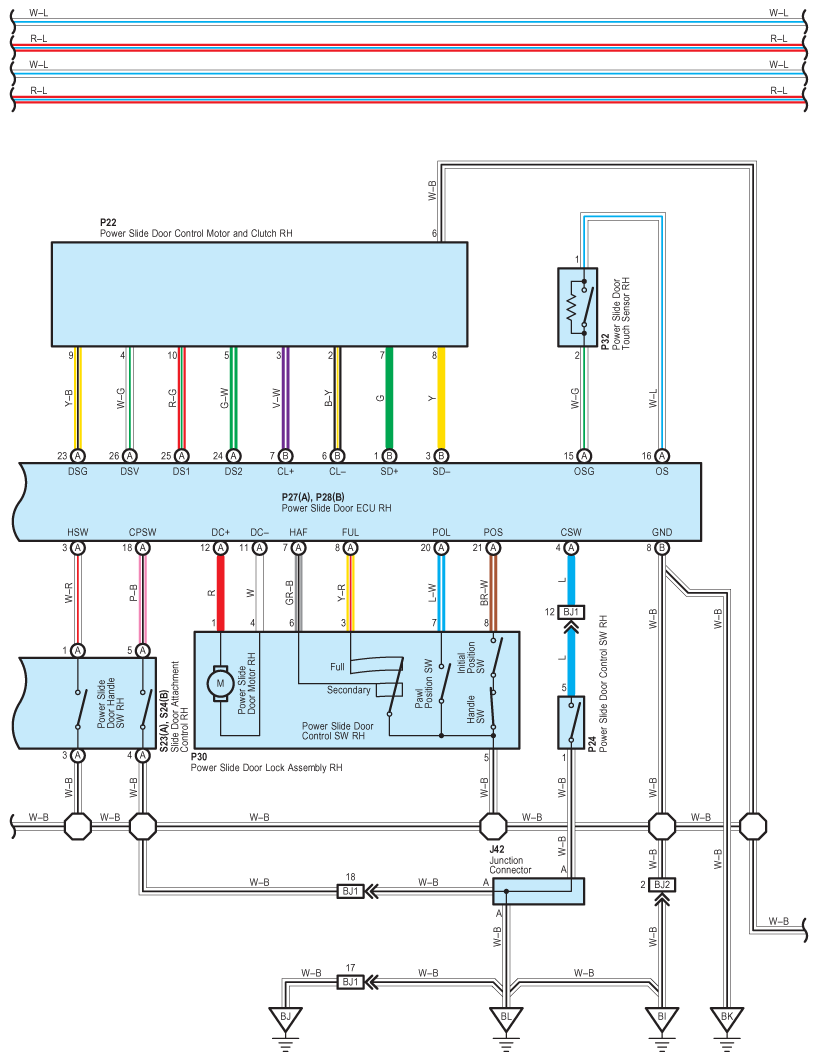

Fig 2: RH Power Slide Door System Wiring Diagram (2 Of 4)
G08841966Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

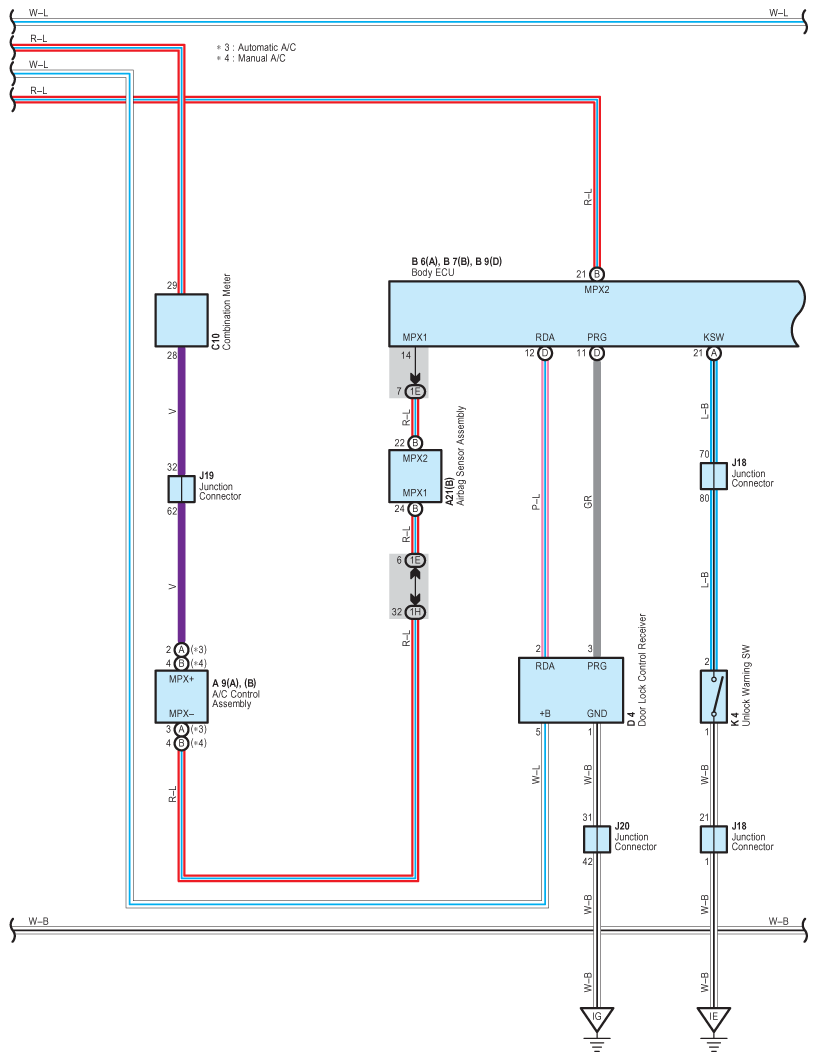

Fig 3: RH Power Slide Door System Wiring Diagram (3 Of 4)
G08841967Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

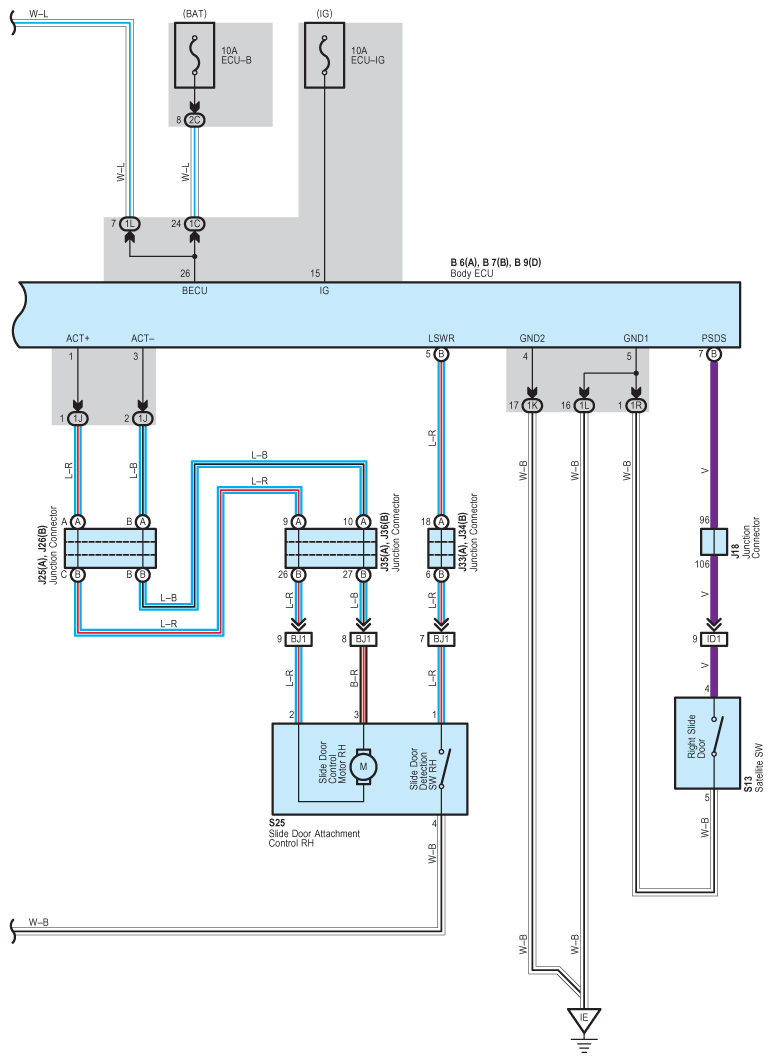

Fig 4: RH Power Slide Door System Wiring Diagram (4 Of 4)
G08841968Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
