Power Outlet (12V Front): Notes

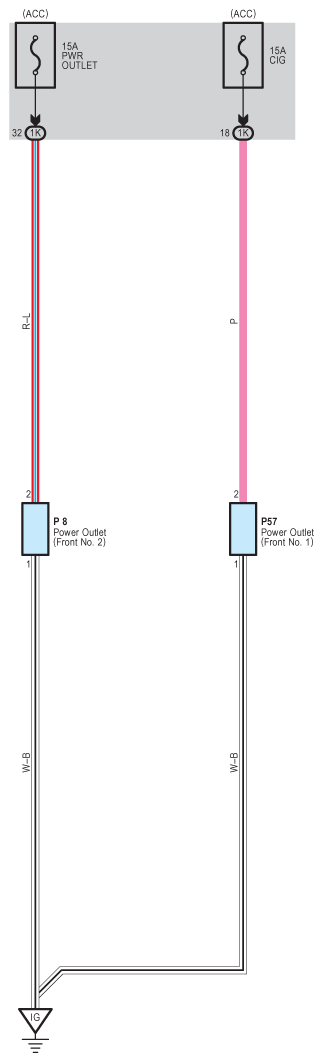

Fig 1: Power Outlet System (12V Front) Wiring Diagram

G08842045

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
