Power Outlet (115V): Notes

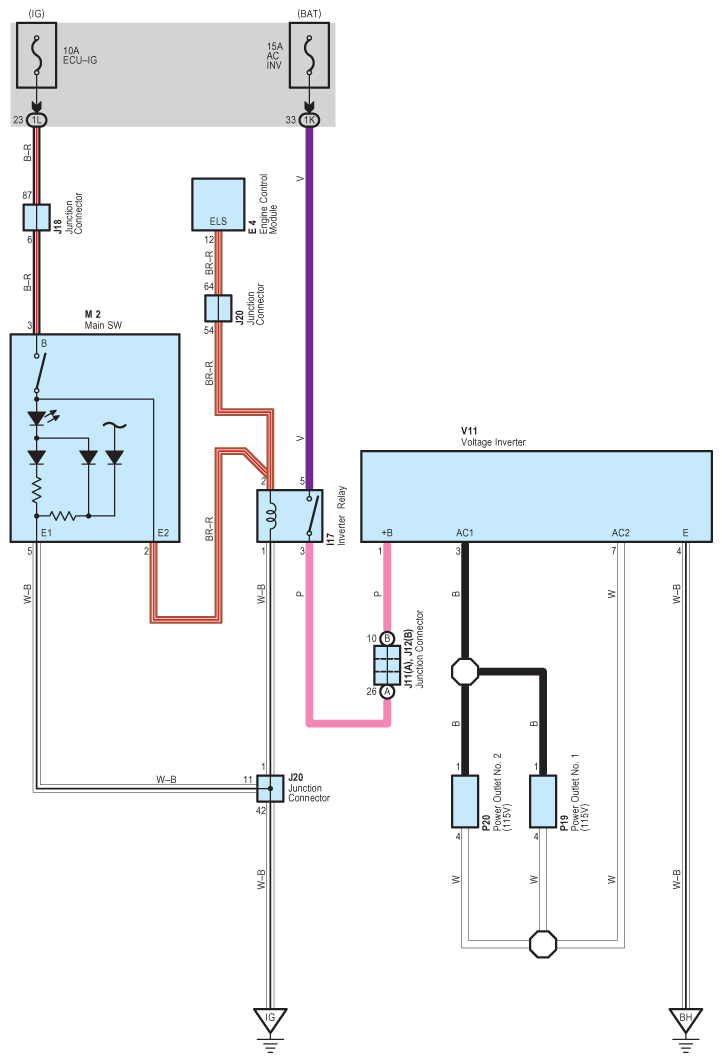

Fig 1: Power Outlet System (115V) Wiring Diagram

G08842044

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
