Manual Air Conditioning (Front): Notes

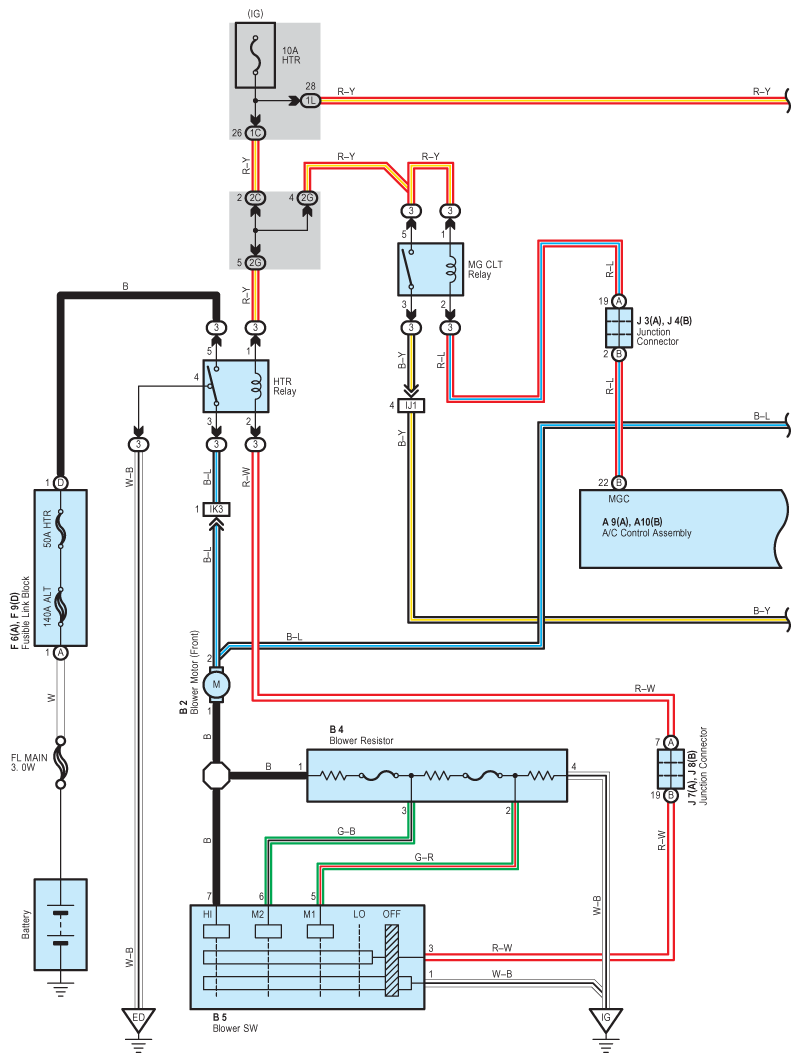

Fig 1: Front Manual Air Conditioning System Wiring Diagram (1 Of 4)
G08842094Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

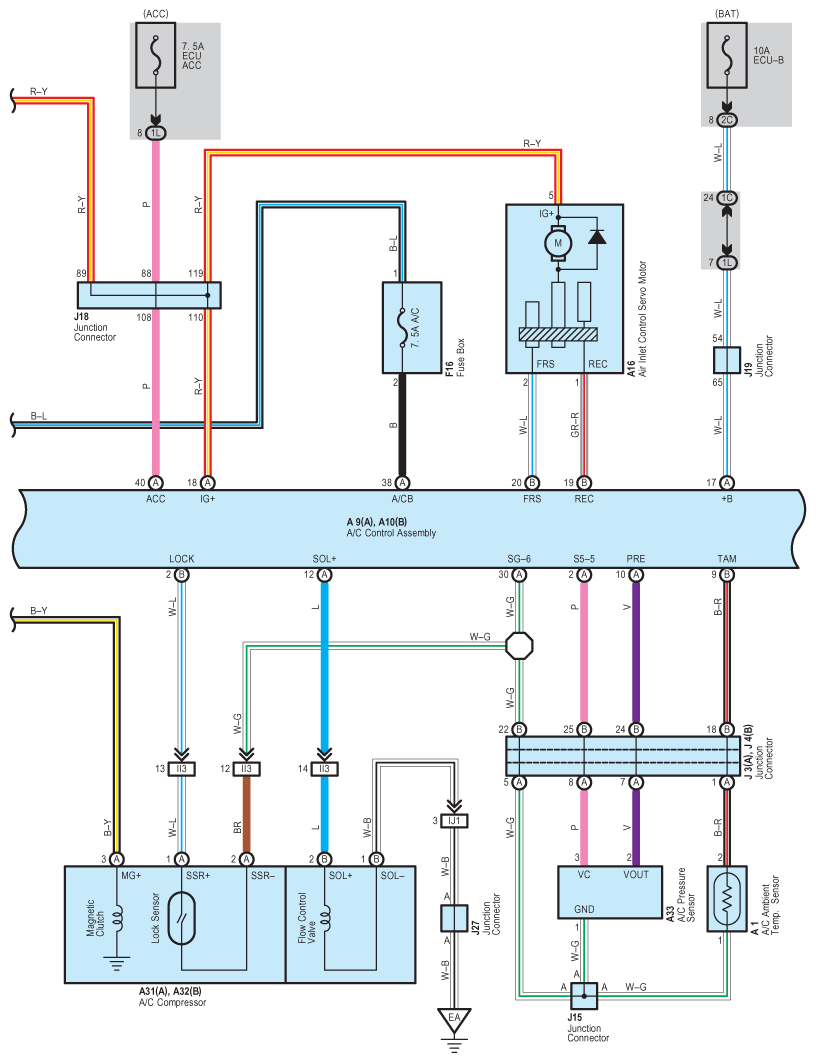

Fig 2: Front Manual Air Conditioning System Wiring Diagram (2 Of 4)
G08842095Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

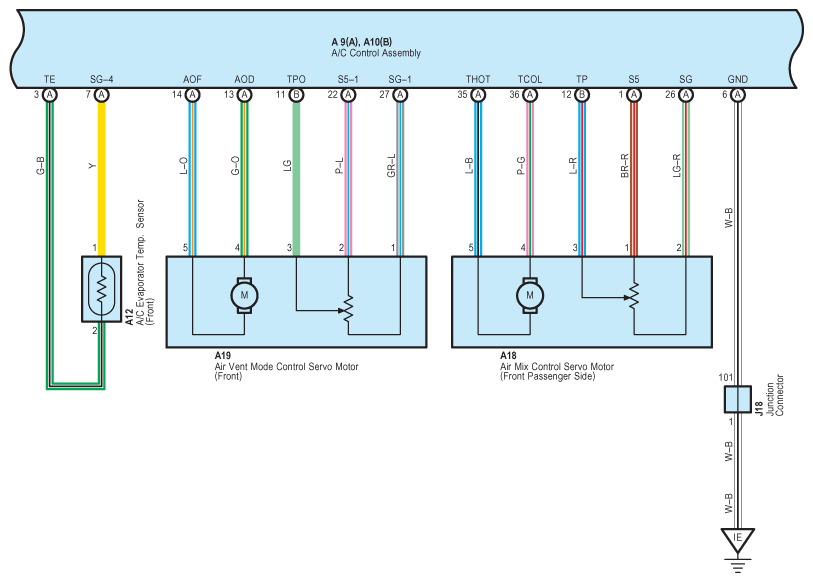

Fig 3: Front Manual Air Conditioning System Wiring Diagram (3 Of 4)
G08842096Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

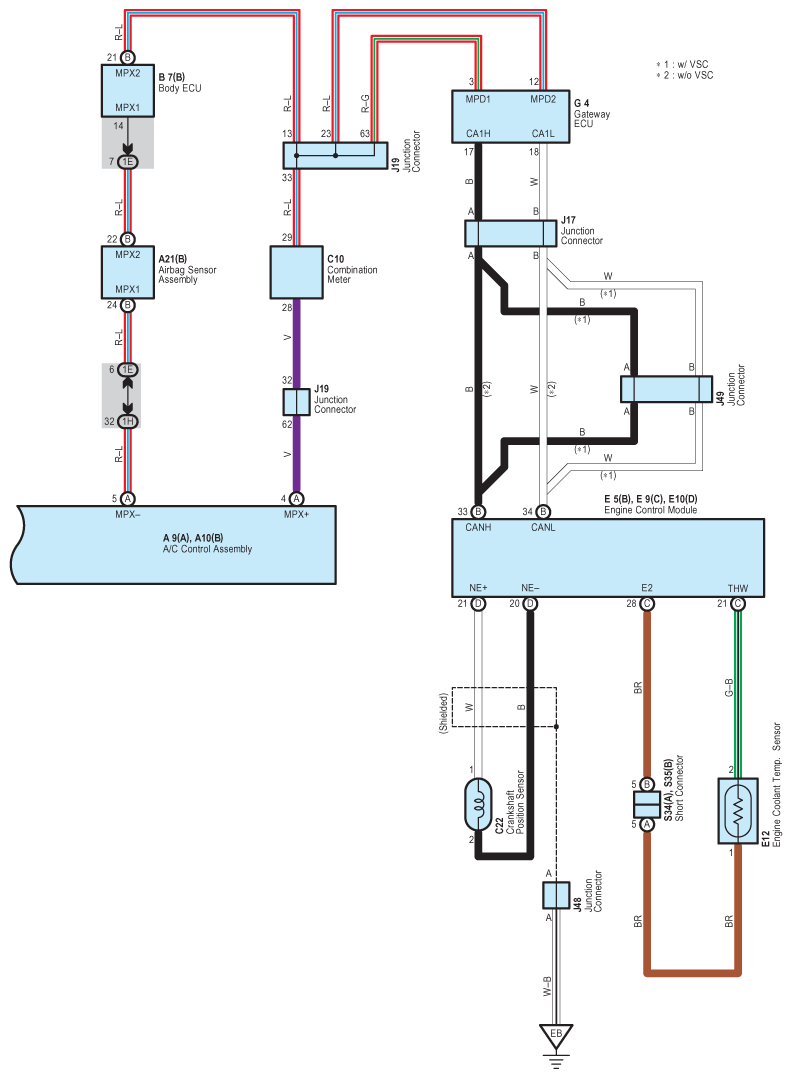

Fig 4: Front Manual Air Conditioning System Wiring Diagram (4 Of 4)
G08842097Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
