Back Door Closer: Notes

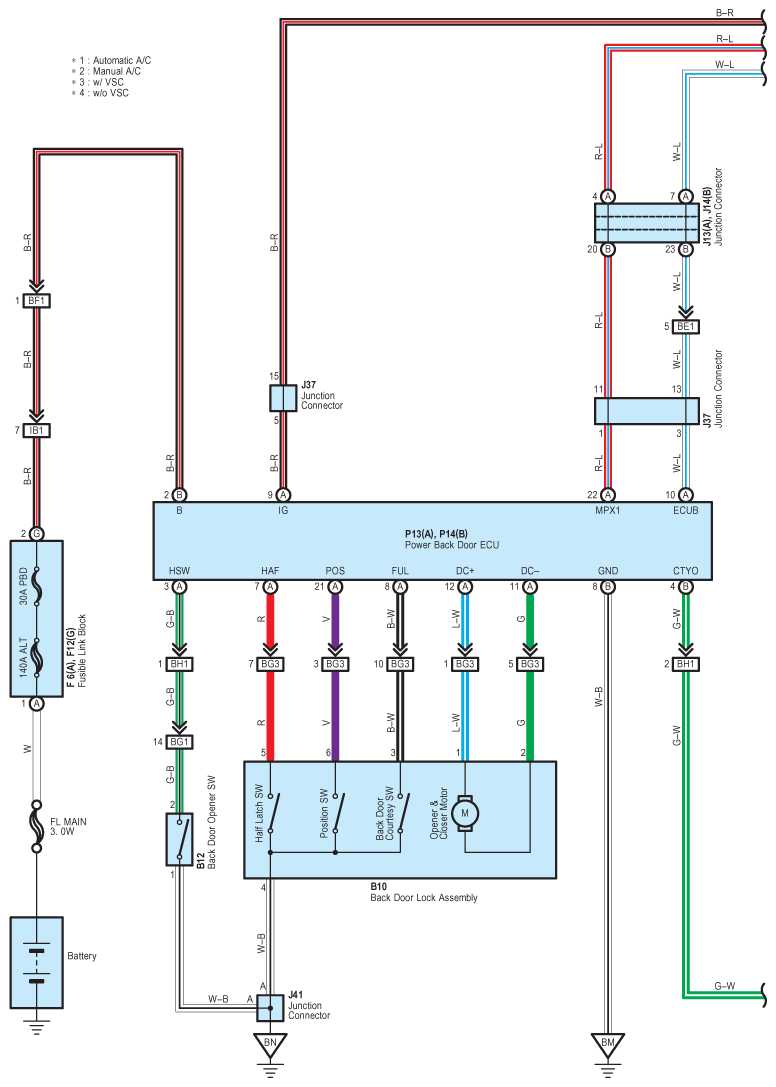

Fig 1: Back Door Closer System Wiring Diagram (1 Of 4)
G08841974Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

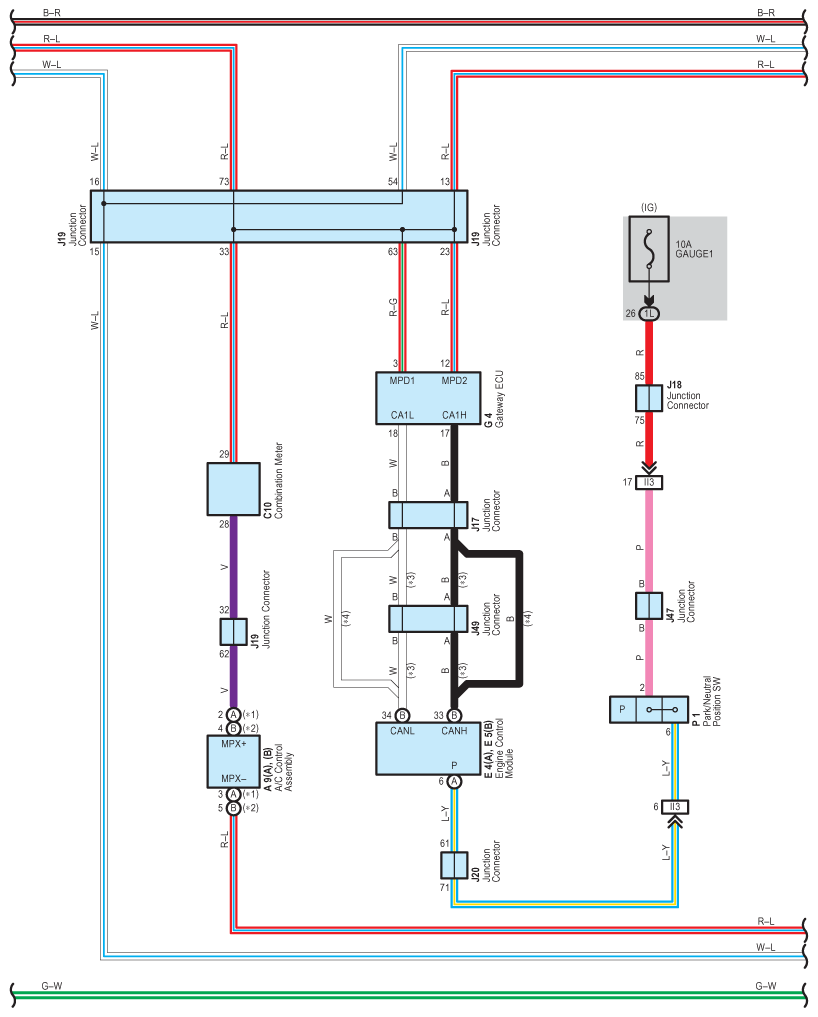

Fig 2: Back Door Closer System Wiring Diagram (2 Of 4)
G08841975Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

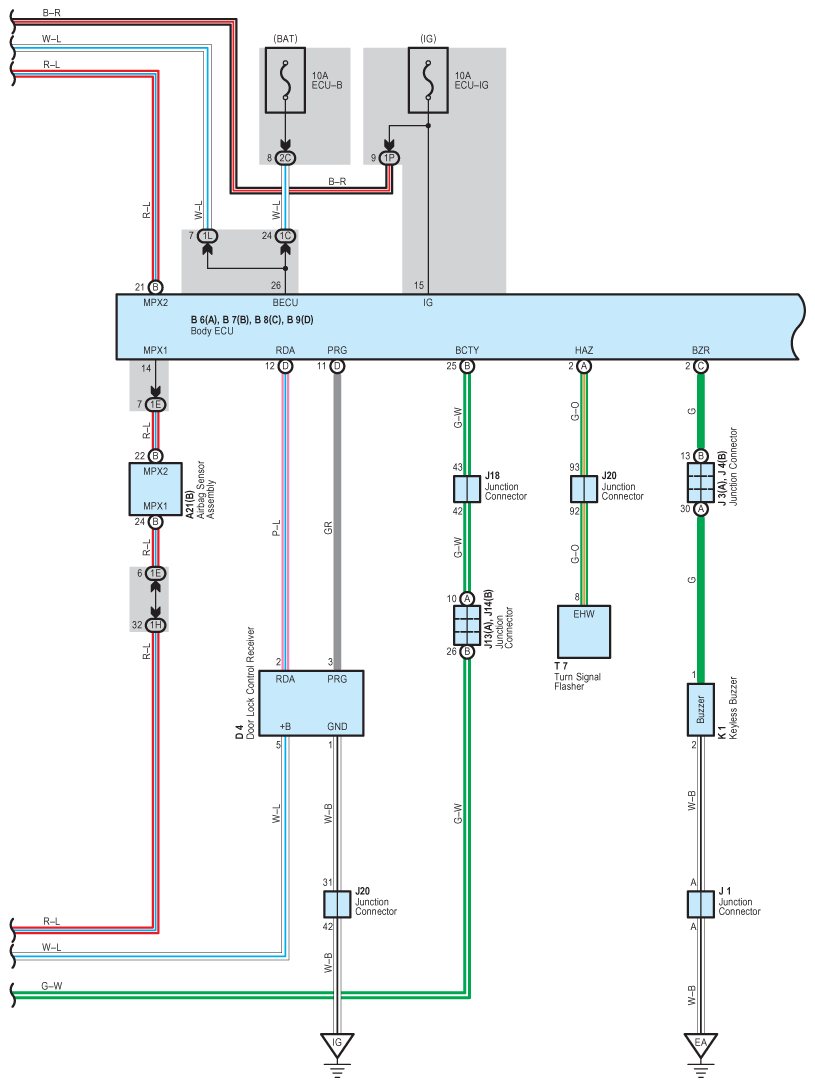

Fig 3: Back Door Closer System Wiring Diagram (3 Of 4)
G08841976Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

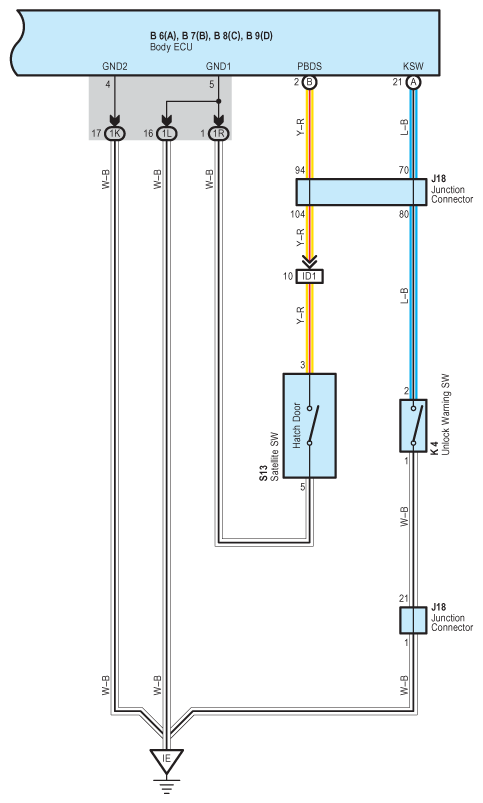

Fig 4: Back Door Closer System Wiring Diagram (4 Of 4)
G08841977Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
