Automatic Air Conditioning (Rear): Notes

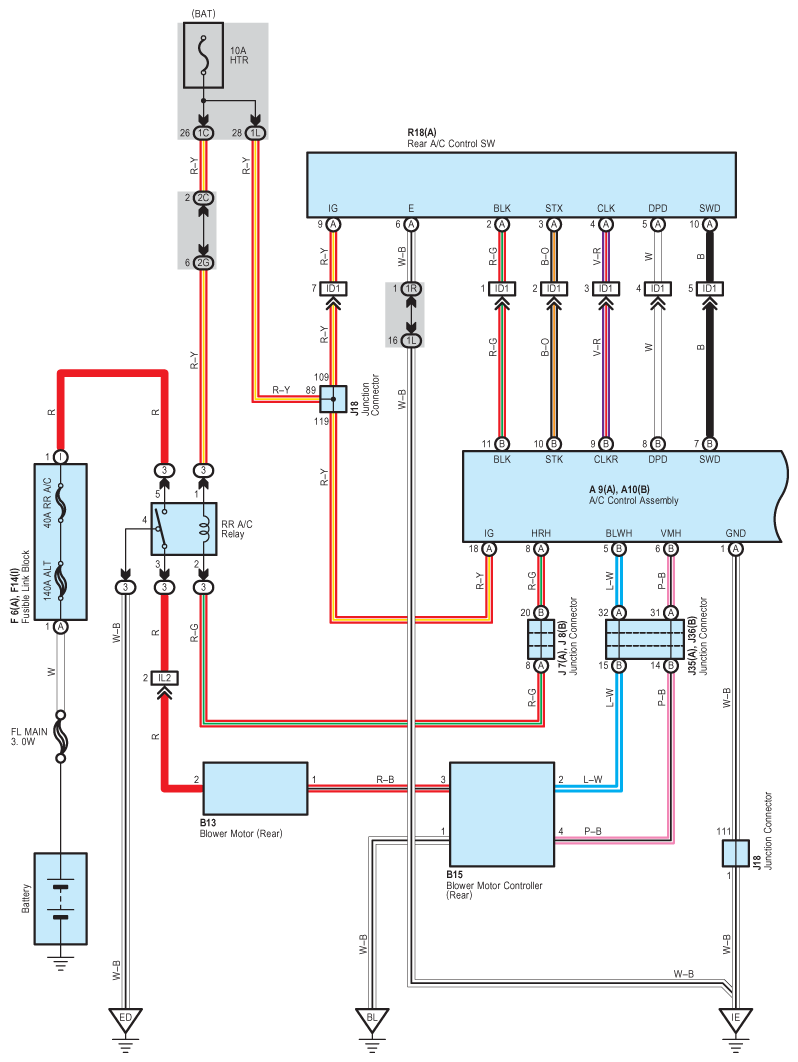

Fig 1: Rear Automatic Air Conditioning System Wiring Diagram (1 Of 2)
G08842098Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

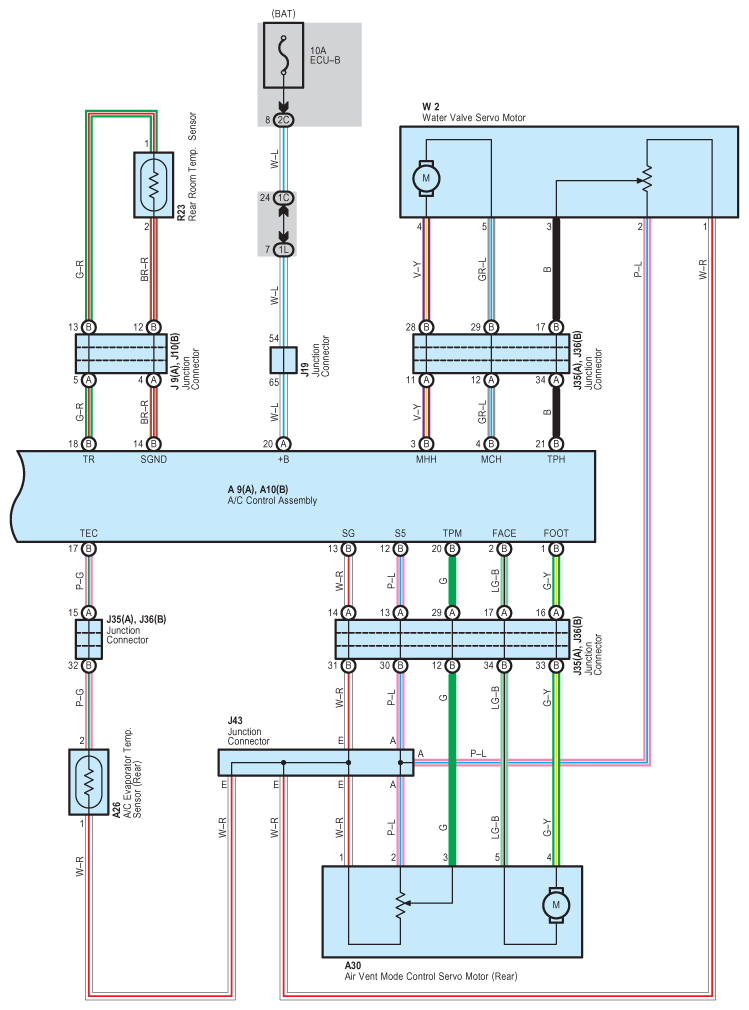

Fig 2: Rear Automatic Air Conditioning System Wiring Diagram (2 Of 2)
G08842099Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
