Audio System with 6 Speaker: Notes

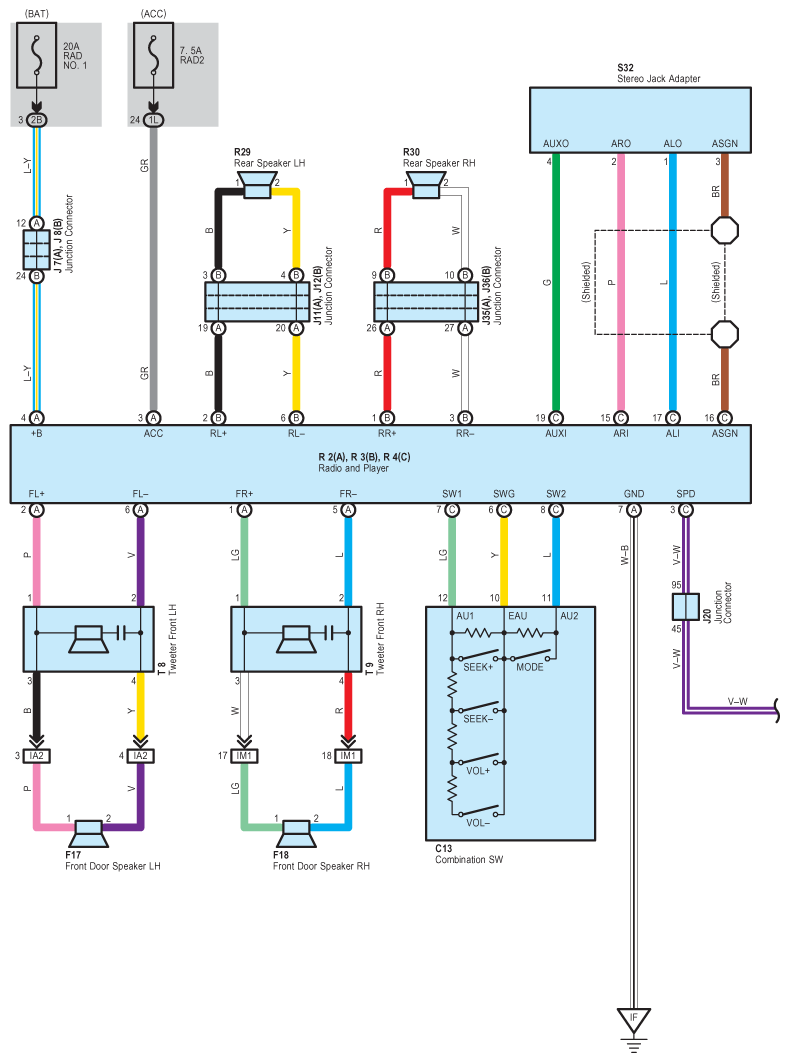

Fig 1: Audio System (With 6 Speaker) Wiring Diagram (1 Of 2)
G08842080Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Audio System (With 6 Speaker) Wiring Diagram (2 Of 2)
G08842081Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
