ABS with VSC, TRAC and VSC: Notes

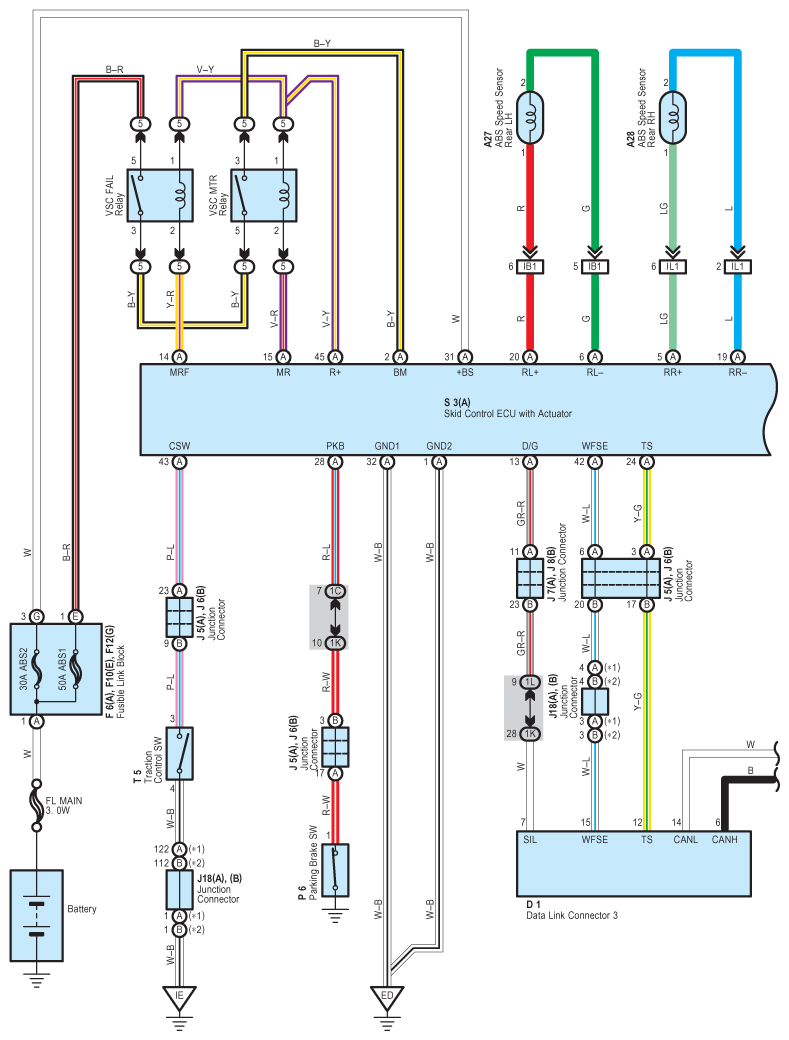

Fig 1: ABS (With VSC), TRAC And VSC System Wiring Diagram (1 Of 5)
G08842018Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

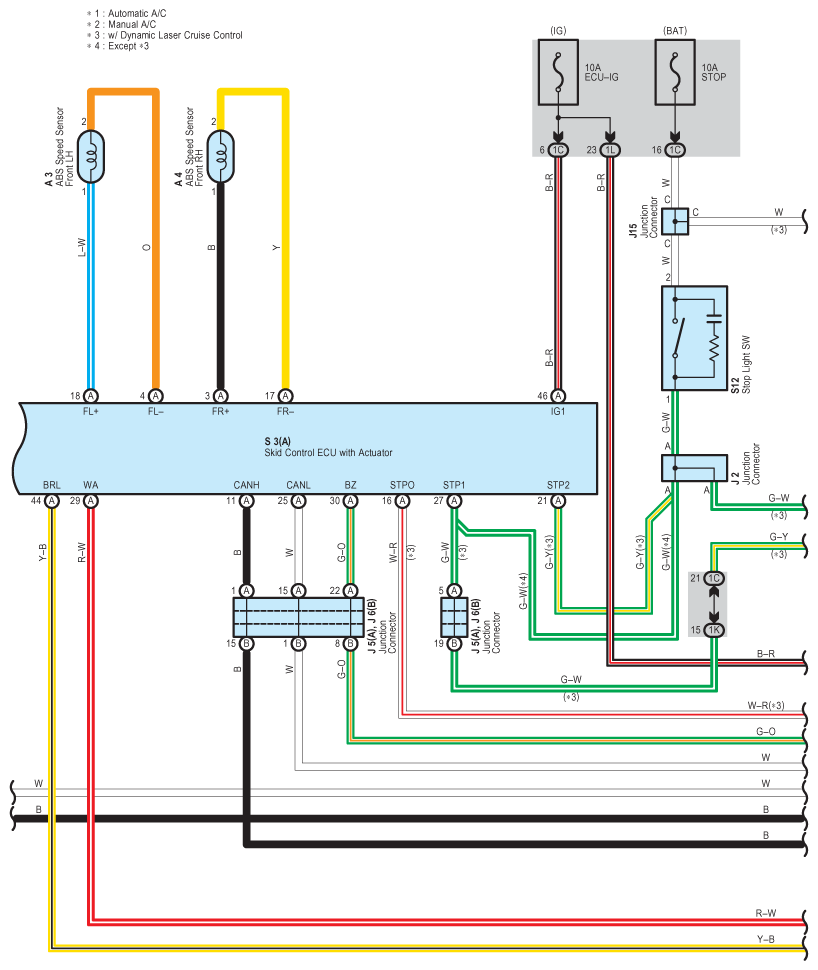

Fig 2: ABS (With VSC), TRAC And VSC System Wiring Diagram (2 Of 5)
G08842019Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

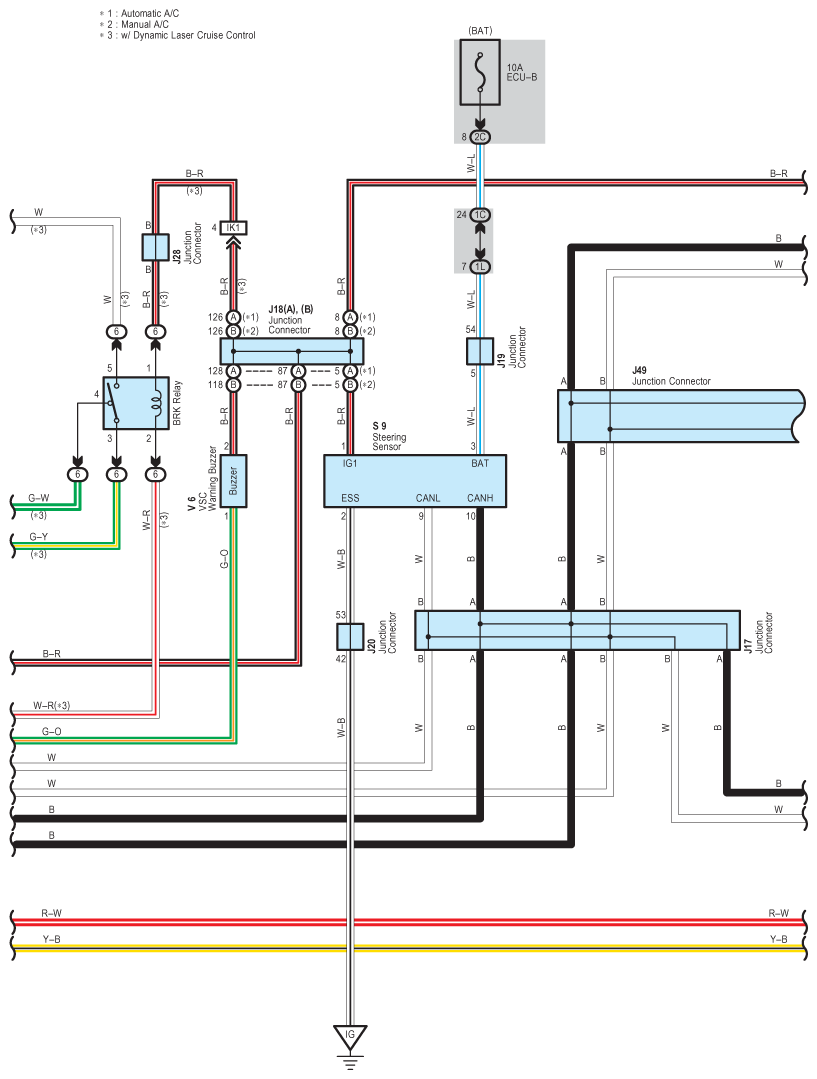

Fig 3: ABS (With VSC), TRAC And VSC System Wiring Diagram (3 Of 5)
G08842020Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

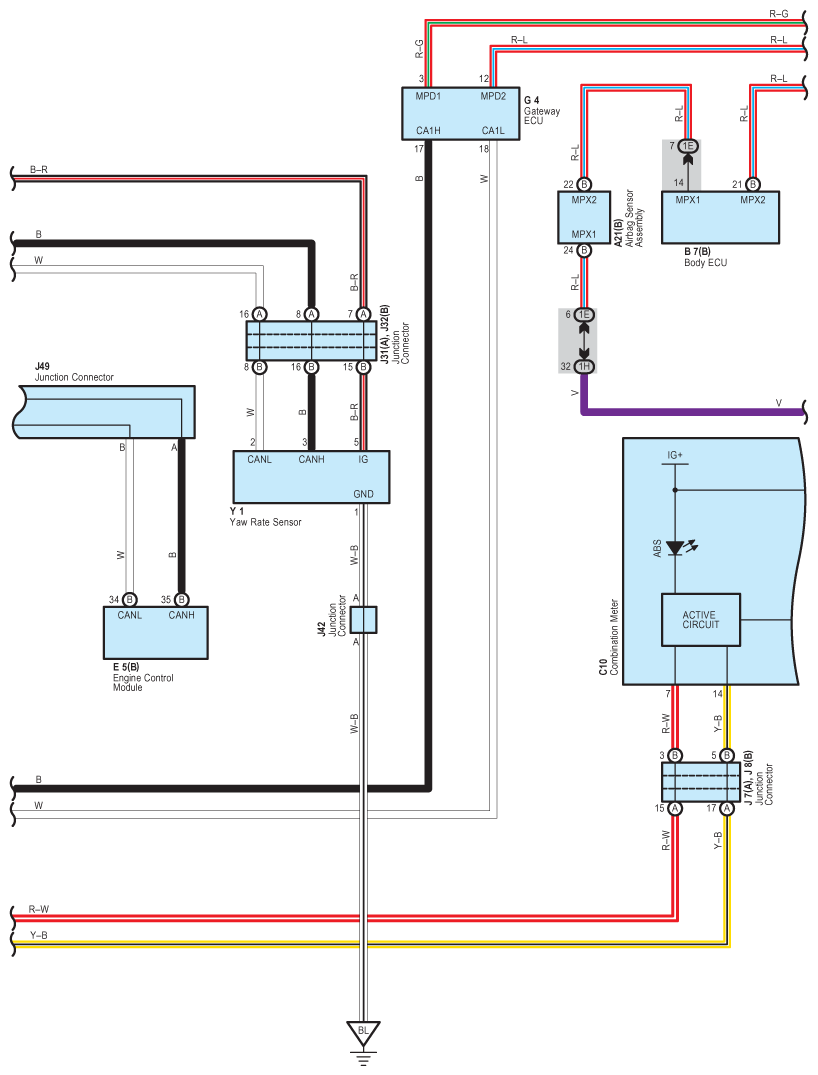

Fig 4: ABS (With VSC), TRAC And VSC System Wiring Diagram (4 Of 5)
G08842021Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

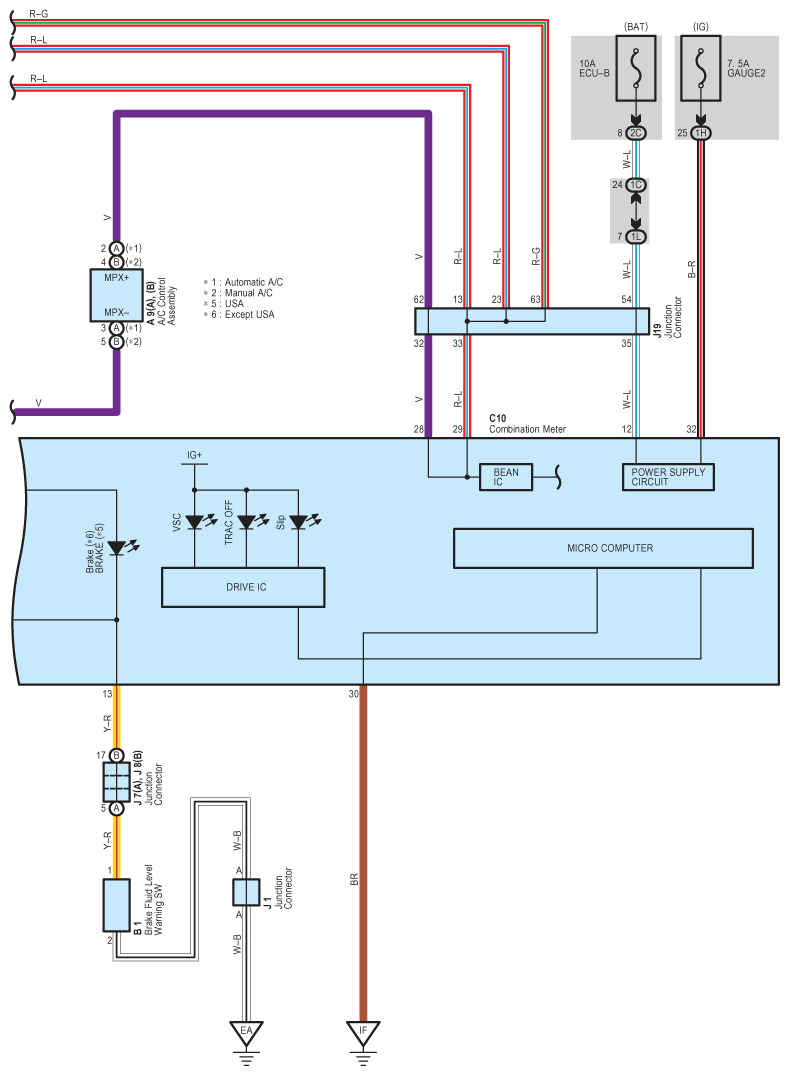

Fig 5: ABS (With VSC), TRAC And VSC System Wiring Diagram (5 Of 5)
G08842022Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
