Rear Side Window Glass: Removal

HINT:

On the RH side, use the same procedures as on the LH side.

1. REMOVE REAR NO. 1 SEAT ASSEMBLY LH

   HINT:

   • Captain seat type: See REMOVAL
   • Center seat type: See REMOVAL
2. REMOVE REAR DOOR WEATHERSTRIP LH
3. REMOVE ROPE HOOK ASSEMBLY
4. REMOVE BACK DOOR SCUFF PLATE  (See REMOVAL )
5. REMOVE ROOF HEADLINING GARNISH REAR
6. REMOVE REAR DOOR SCUFF PLATE LH
7. REMOVE QUARTER TRIM PANEL ASSEMBLY LH
8. REMOVE RR WINDOW SIDE GARNISH ASSEMBLY NO.2 LH
9. REMOVE RR WINDOW SIDE GARNISH ASSEMBLY LH
10. REMOVE SIDE WINDOW ASSEMBLY REAR LH
    1. Disconnect the connectors.
    2. Remove the 2 nuts and 2 bolts.

       Torque: Bolt 5.5 N*m (56 kgf*cm, 49 in.*lbf)

    3. Remove the window.

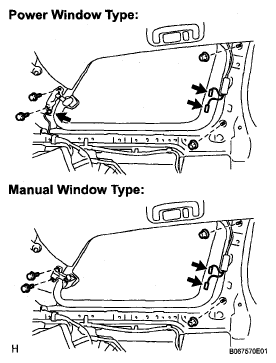

       Fig 1: Locating Side Window Assembly Rear LH Bolts, Connector And Nuts

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
11. REMOVE POWER VENT WINDOW MOTOR ASSEMBLY LH (POWER WINDOW TYPE)
    1. Using a screwdriver, remove the window motor.
    Fig 2: Removing Window Motor Using Screwdriver
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
12. REMOVE QUARTER WINDOW LOCK ASSEMBLY LH (MANUAL WINDOW TYPE)
    1. Remove the screw and window lock.
13. REMOVE SIDE REAR WINDOW WEATHERSTRIP LH
