Distance Control Ecu: Components

Fig 1: Identifying Distance Control ECU Components (1 Of 3)
G05140692Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Identifying Distance Control ECU Components (2 Of 3)
G05140693Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

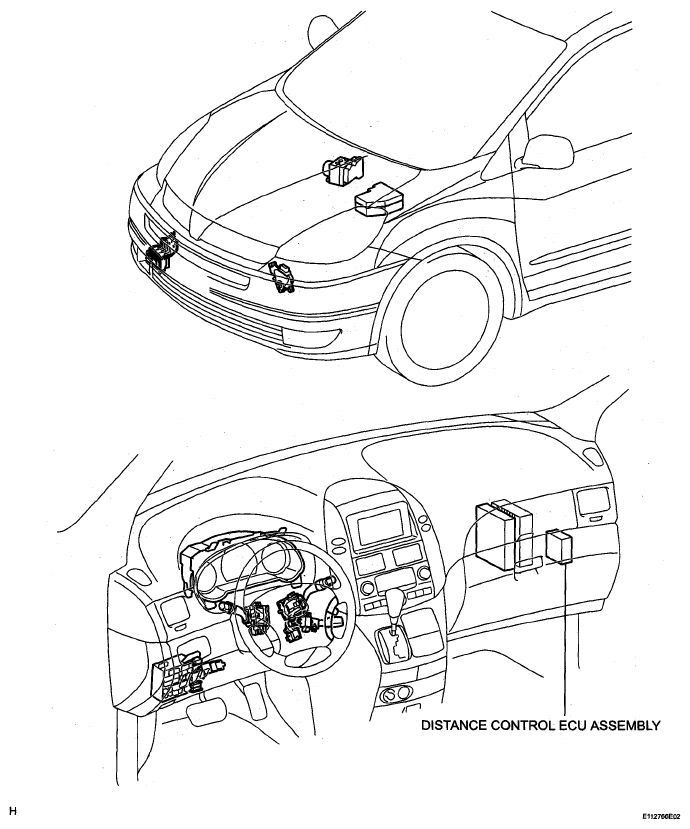

Fig 3: Identifying Distance Control ECU Components (3 Of 3)
G05140694Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
