Fuel Pump: Reassembly

REMOVE FUEL SUCTION PLATE NO.2
1. Install the 2 springs and suction plate No.2 to the suction plate No.1.
2. Using a needle-nose pliers, install the 2 new E-rings to the suction plate No.2.

  Fig 1: Install Springs & Suction Plate No.2 To Suction Plate No.1
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL FUEL PUMP
1. Apply a light coat of gasoline or spindle oil to a new O- ring, and install it to the fuel pump.

  Fig 2: Installing O-Rings To Fuel Pump
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Connect the fuel pump harness connector to the fuel pump.

  Fig 3: Connecting Fuel Pump Harness Connector To Fuel Pump
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Install the fuel pump with the suction filter to the fuel filter.

  Fig 4: Installing Fuel Pump With Suction Filter To Fuel Filter
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL FUEL FILTER
1. Install the fuel filter to the fuel sub-tank.

  Fig 5: Installing Fuel Filter To Fuel Sub-Tank
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL FUEL SUB-TANK

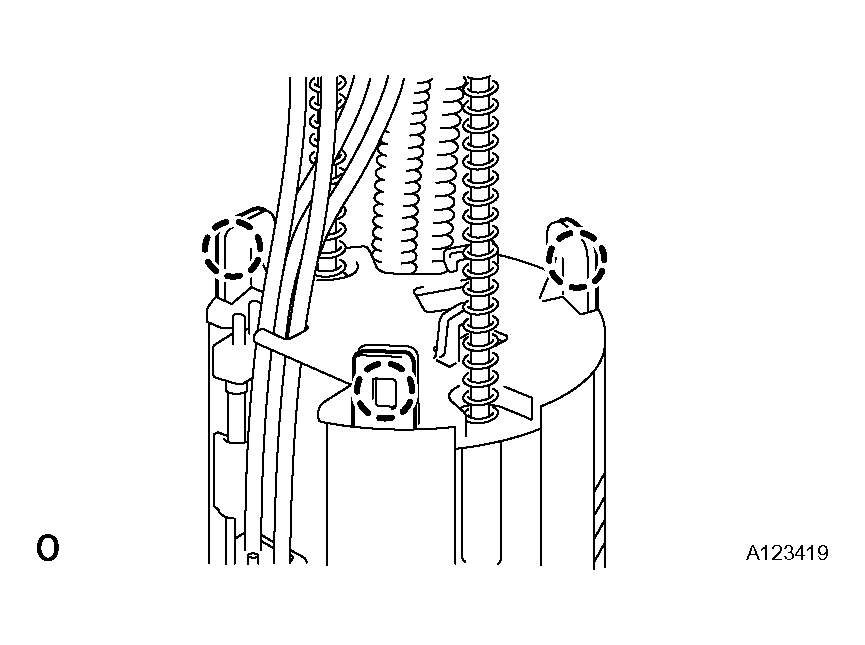

1. Connect the fuel suction plate No.2 to the fuel sub-tank with the 3 snap-claws engaged.

  Fig 6: Connecting Fuel Suction Plate No.2 To Fuel Sub-Tank With Snap-Claws Engaged
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

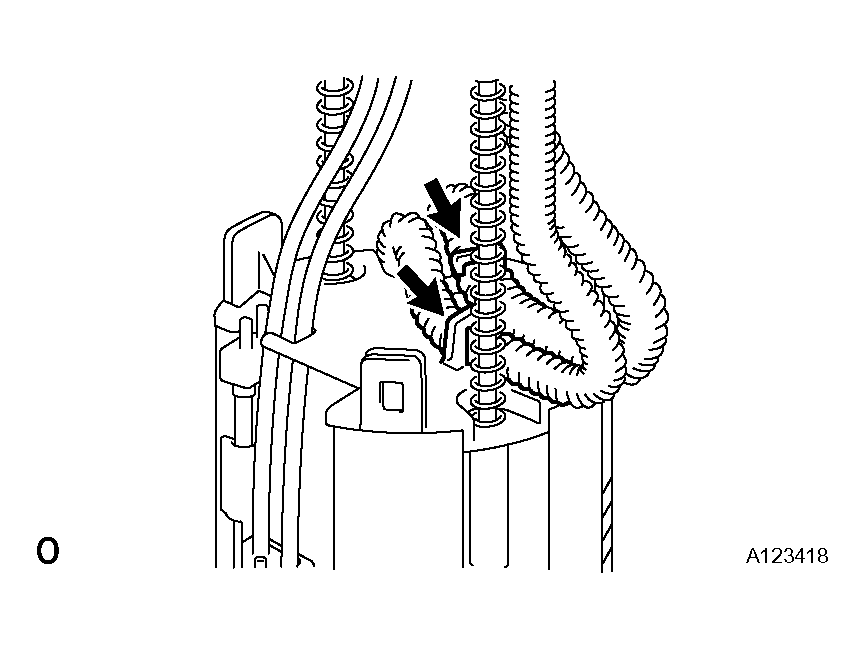

2. Connect the 2 tubes to the tube clamps.

  Fig 7: Connecting Tubes To Tube Clamps
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Connect the suction filter hose to the fuel sub-tank.

  Fig 8: Connecting Suction Filter Hose To Fuel Sub-Tank
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

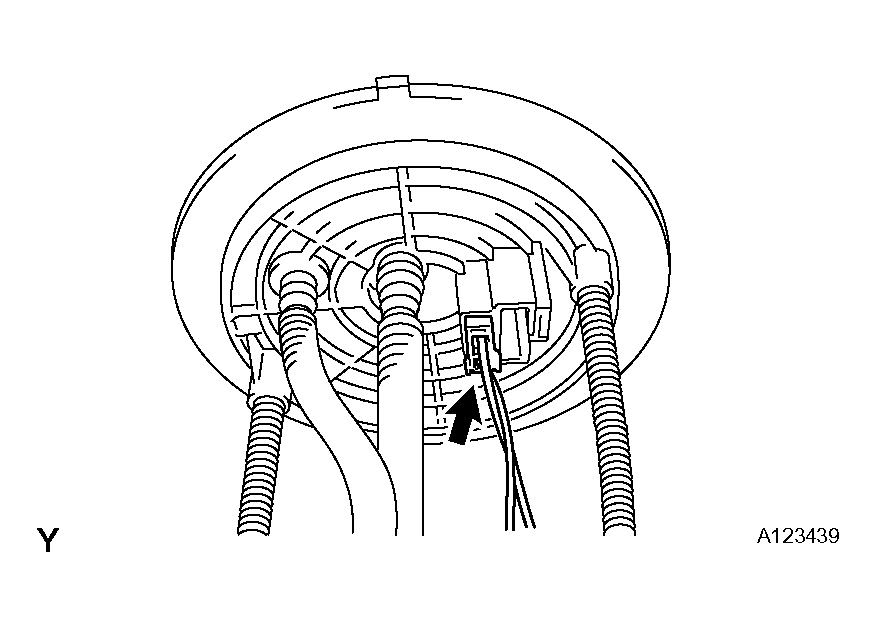

4. Connect the fuel pump harness connector to the fuel suction plate No.1.

  Fig 9: Connecting Fuel Pump Harness Connector To Fuel Suction Plate
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL FUEL SENDER GAUGE

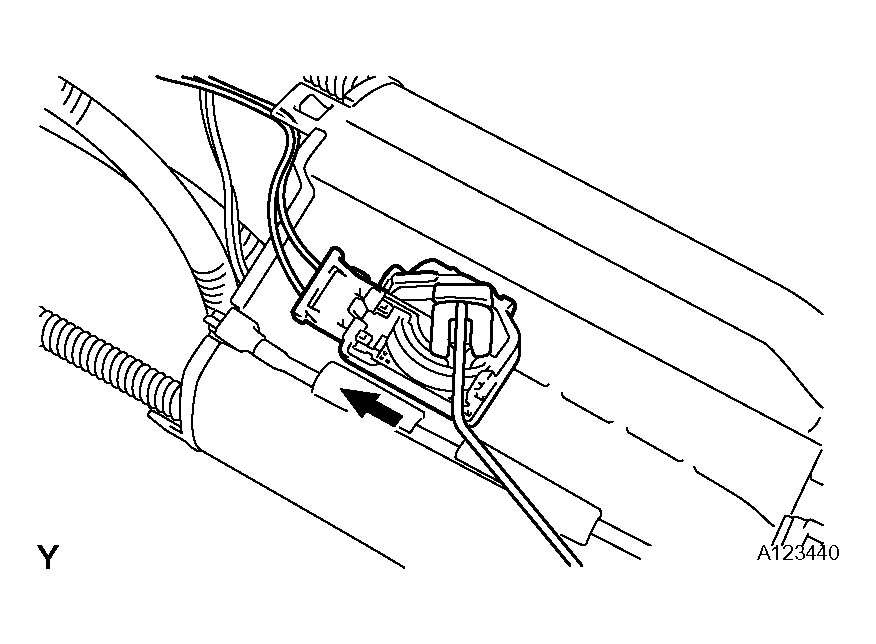

1. Install the fuel sender gauge to the fuel suction support.

  Fig 10: Installing Fuel Sender Gauge To Fuel Suction Support
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

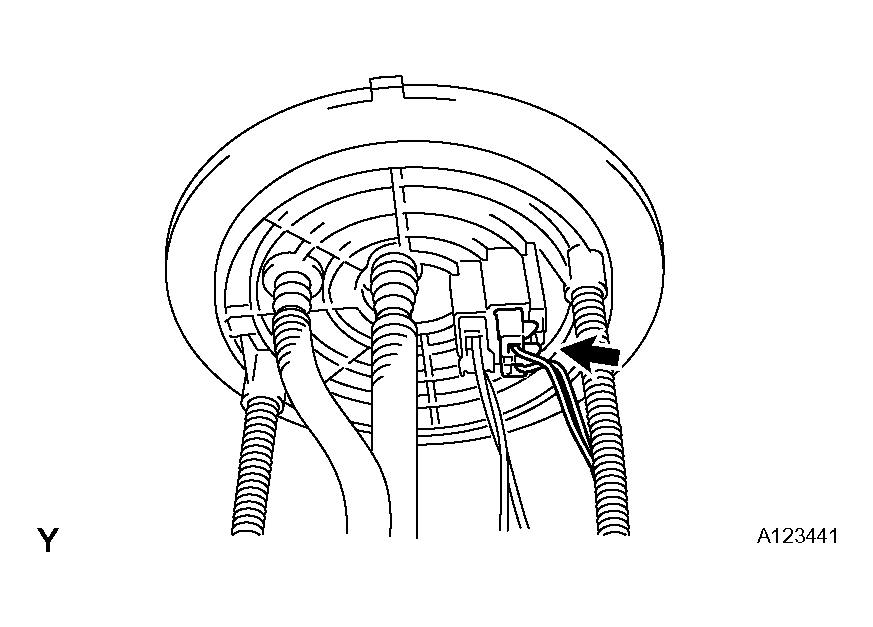

2. Connect the sender gauge connector to the fuel suction plate No.1.

  Fig 11: Connecting Sender Gauge Connector To Fuel Suction Plate No.1
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
