Windshield Glass: Components

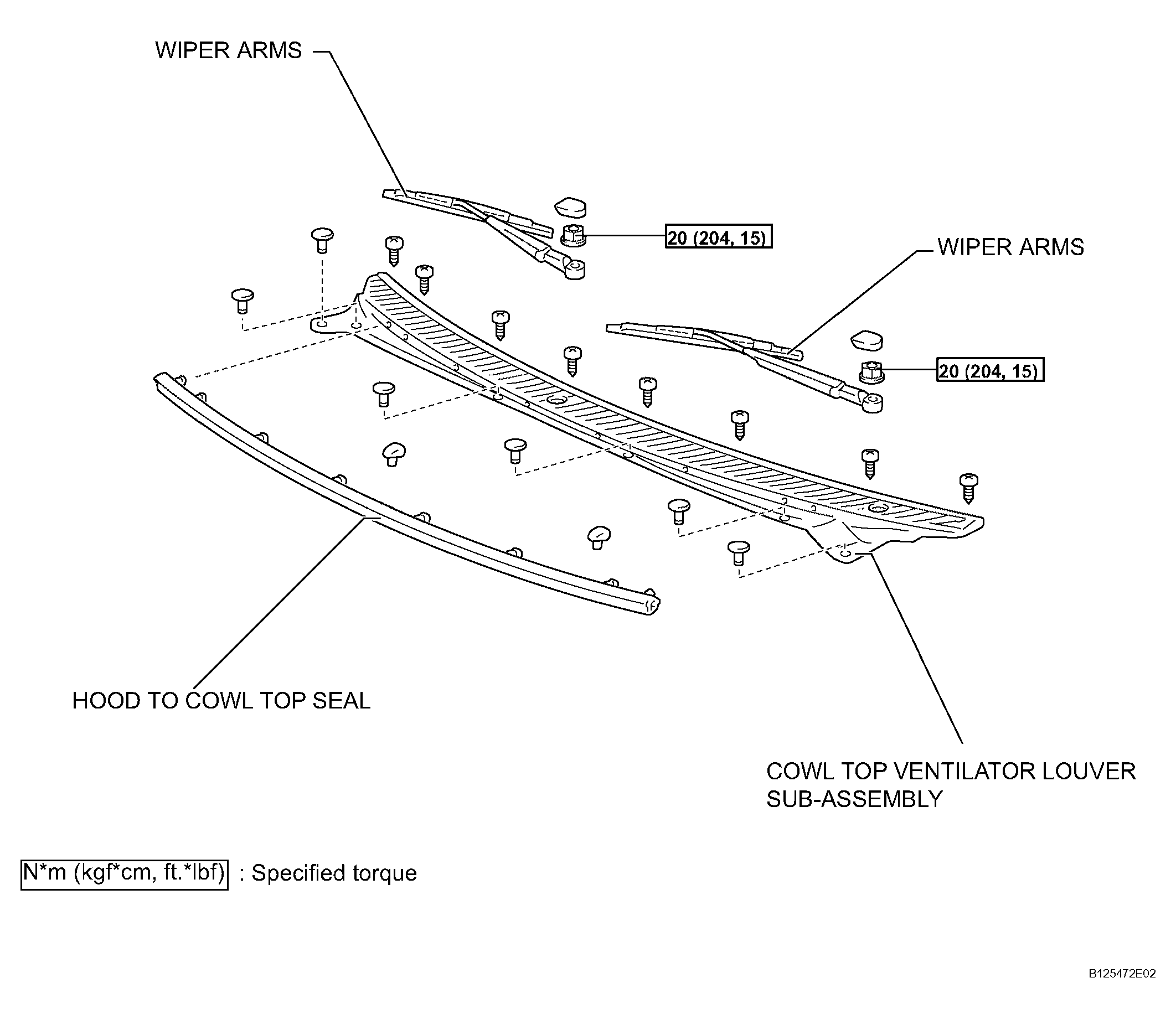

Fig 1: Windshield Glass Replacement Components With Torque Specifications (1 Of 2)
G04511057Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

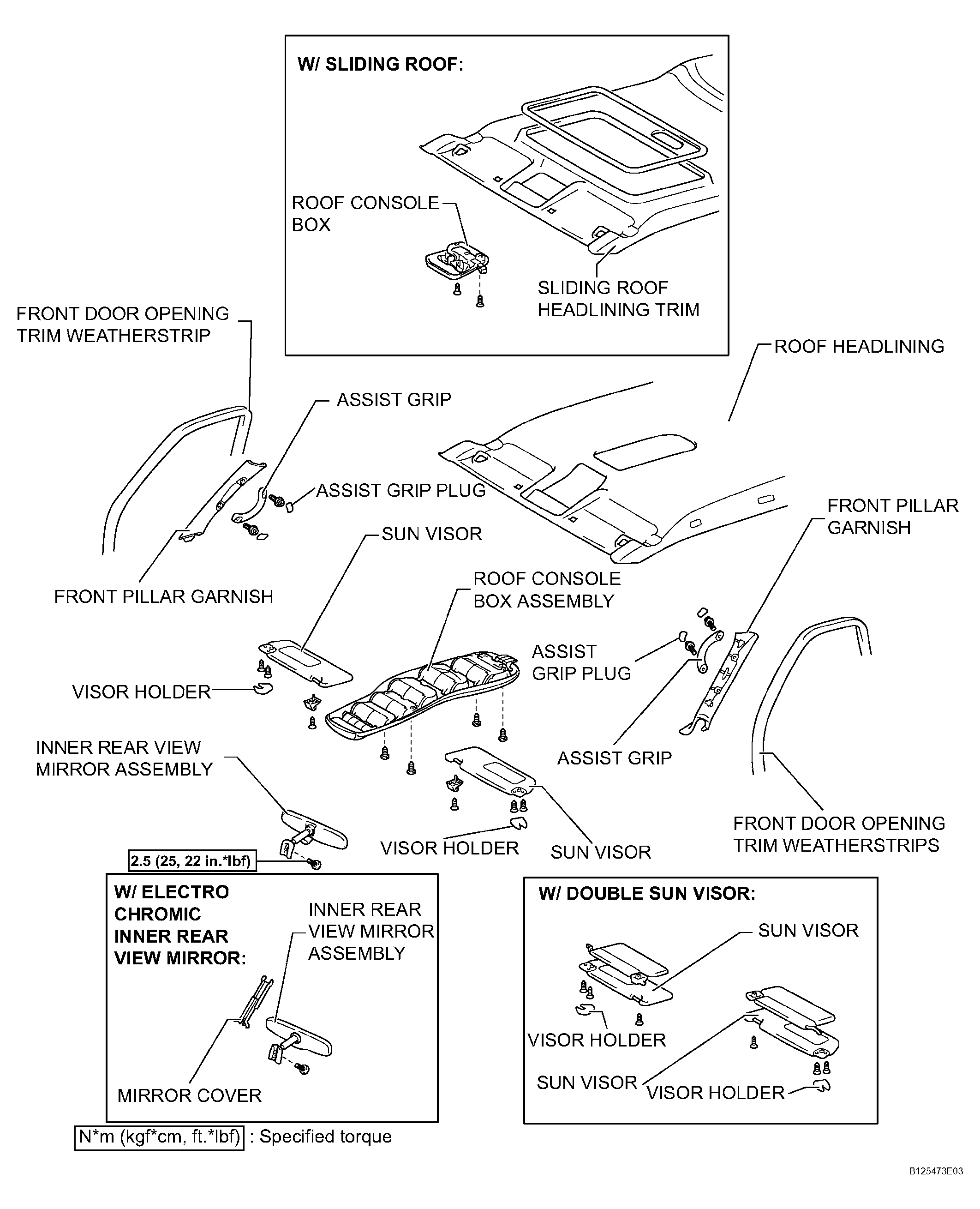

Fig 2: Windshield Glass Replacement Components With Torque Specifications (2 Of 2)
G04511058Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

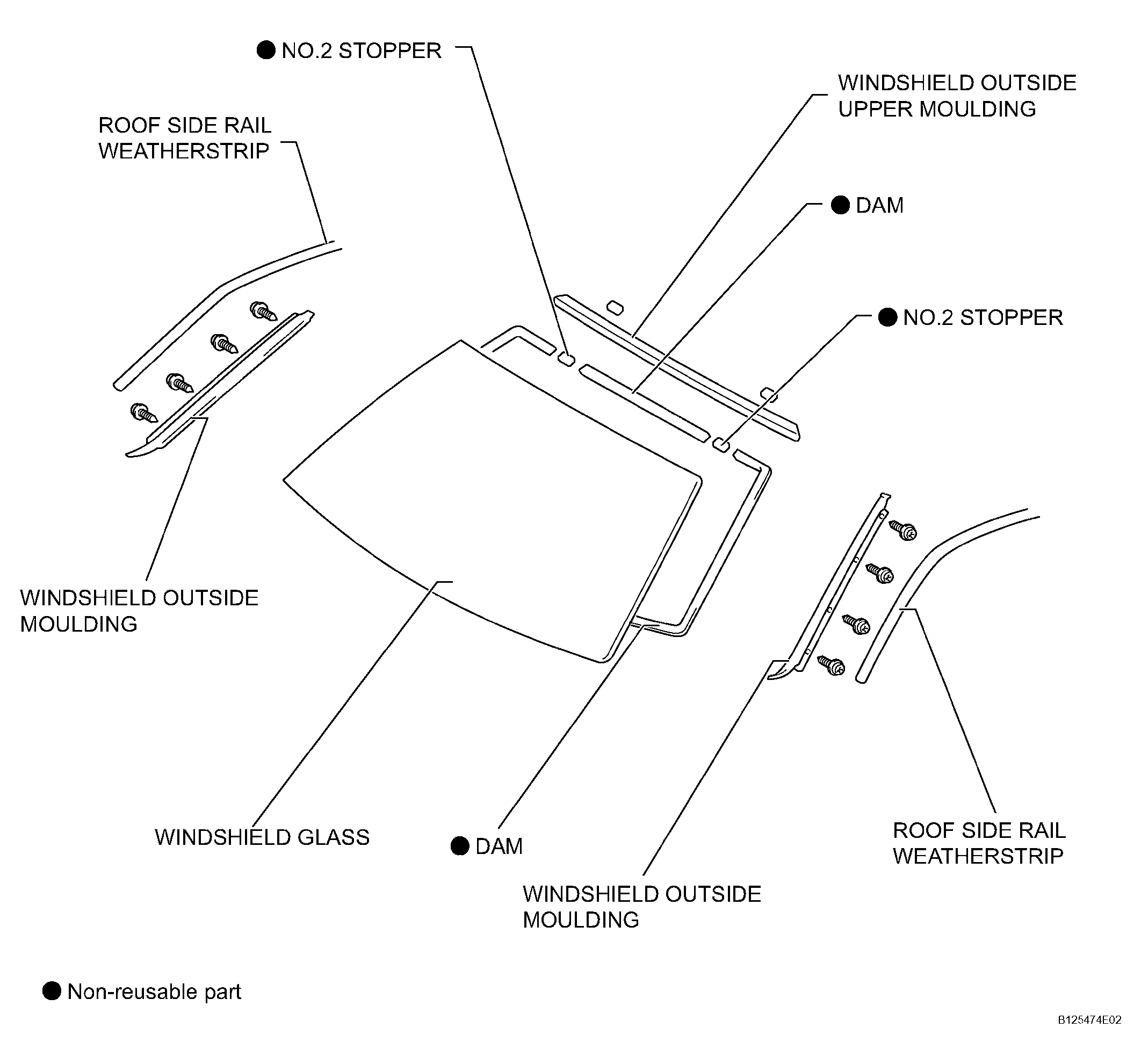

Fig 3: Identifying Windshield Glass Components
G04511059Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
