System Diagram

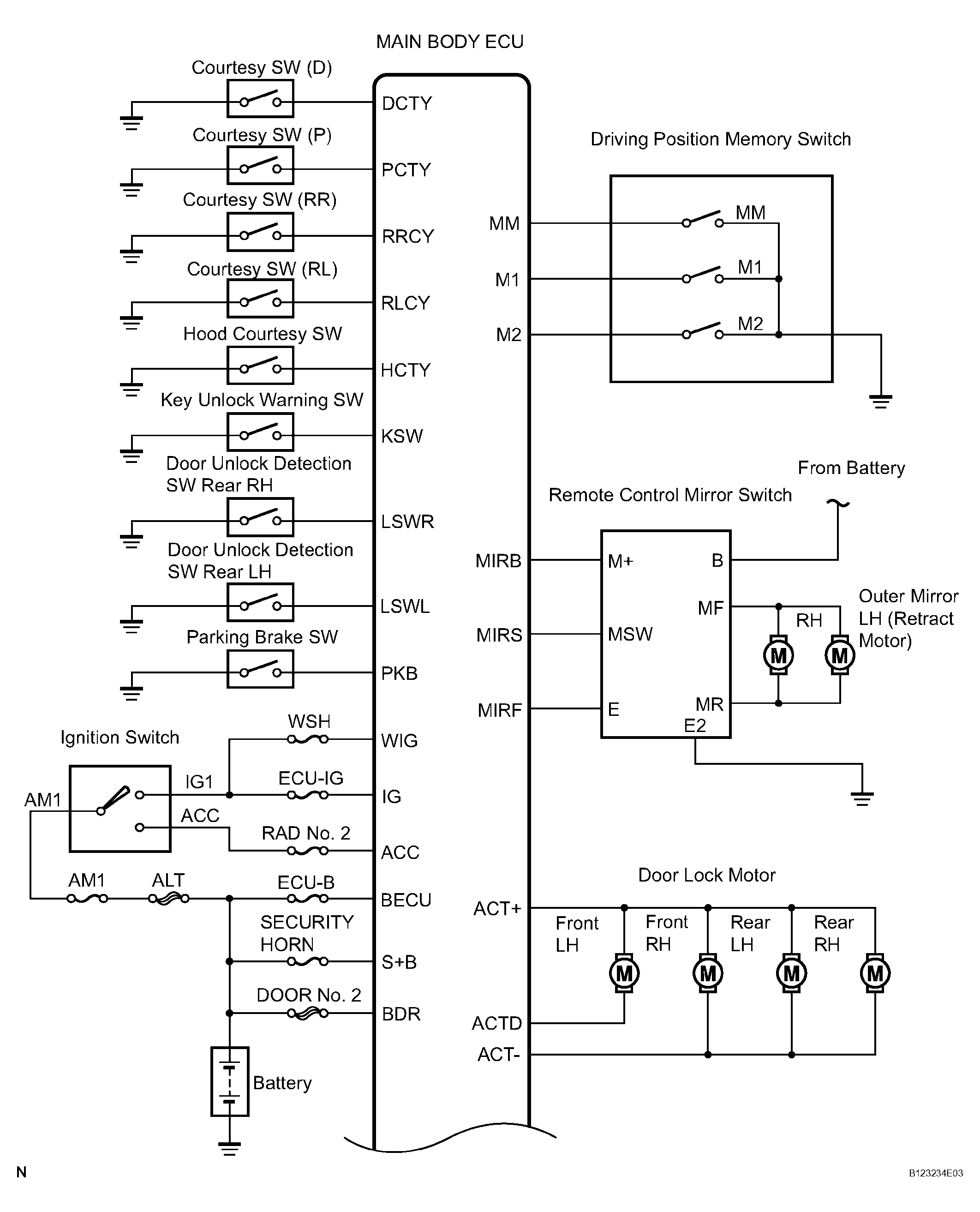

Fig 1: Power Window Control System Diagram (1 Of 6)
G04511014Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

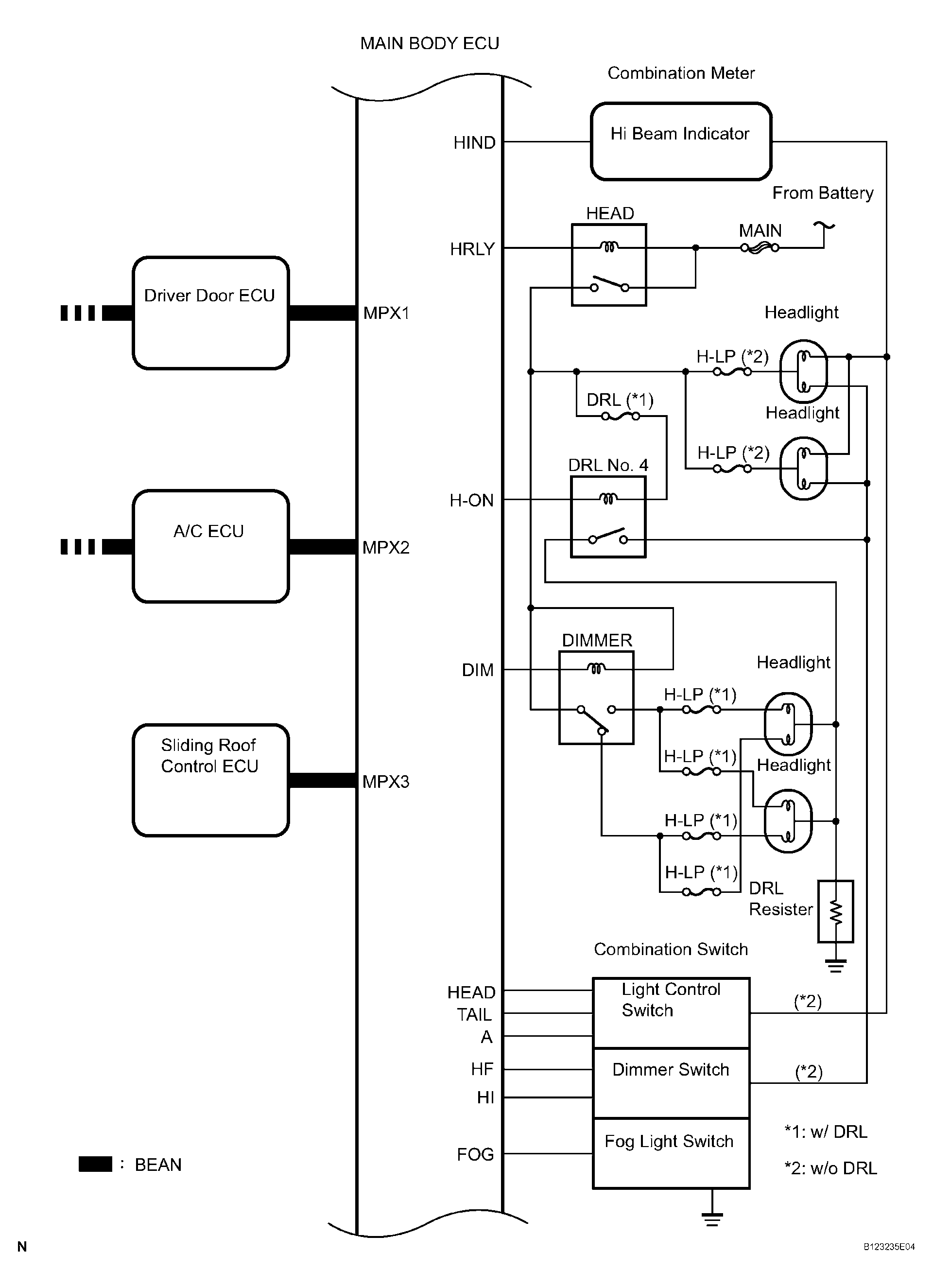

Fig 2: Power Window Control System Diagram (2 Of 6)
G04511015Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

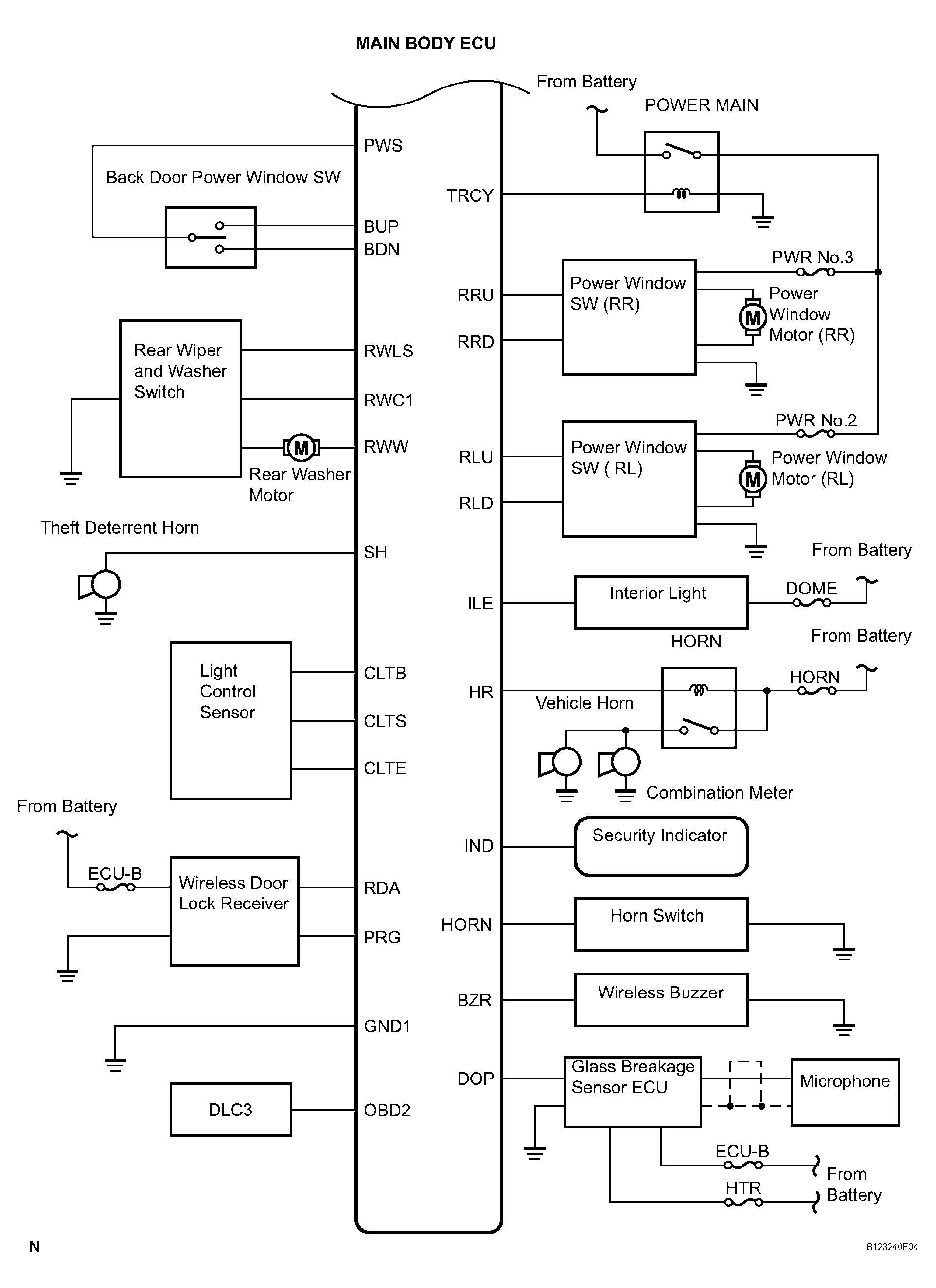

Fig 3: Power Window Control System Diagram (3 Of 6)
G04511016Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 4: Power Window Control System Diagram (4 Of 6)
G04511017Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 5: Power Window Control System Diagram (5 Of 6)
G04511018Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

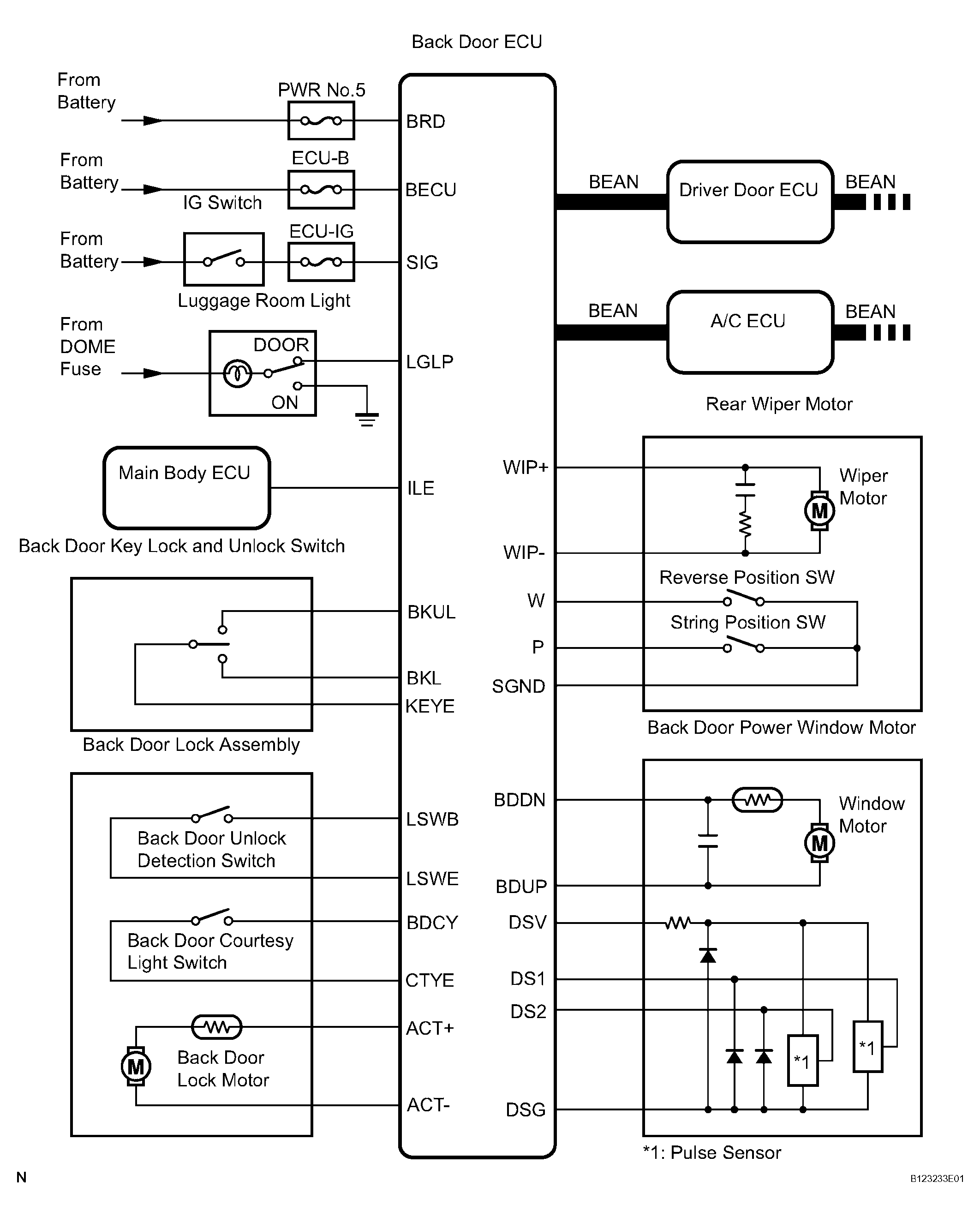

Fig 6: Power Window Control System Diagram (6 Of 6)
G04511019Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
