Rear Stabilizer Bar: Components

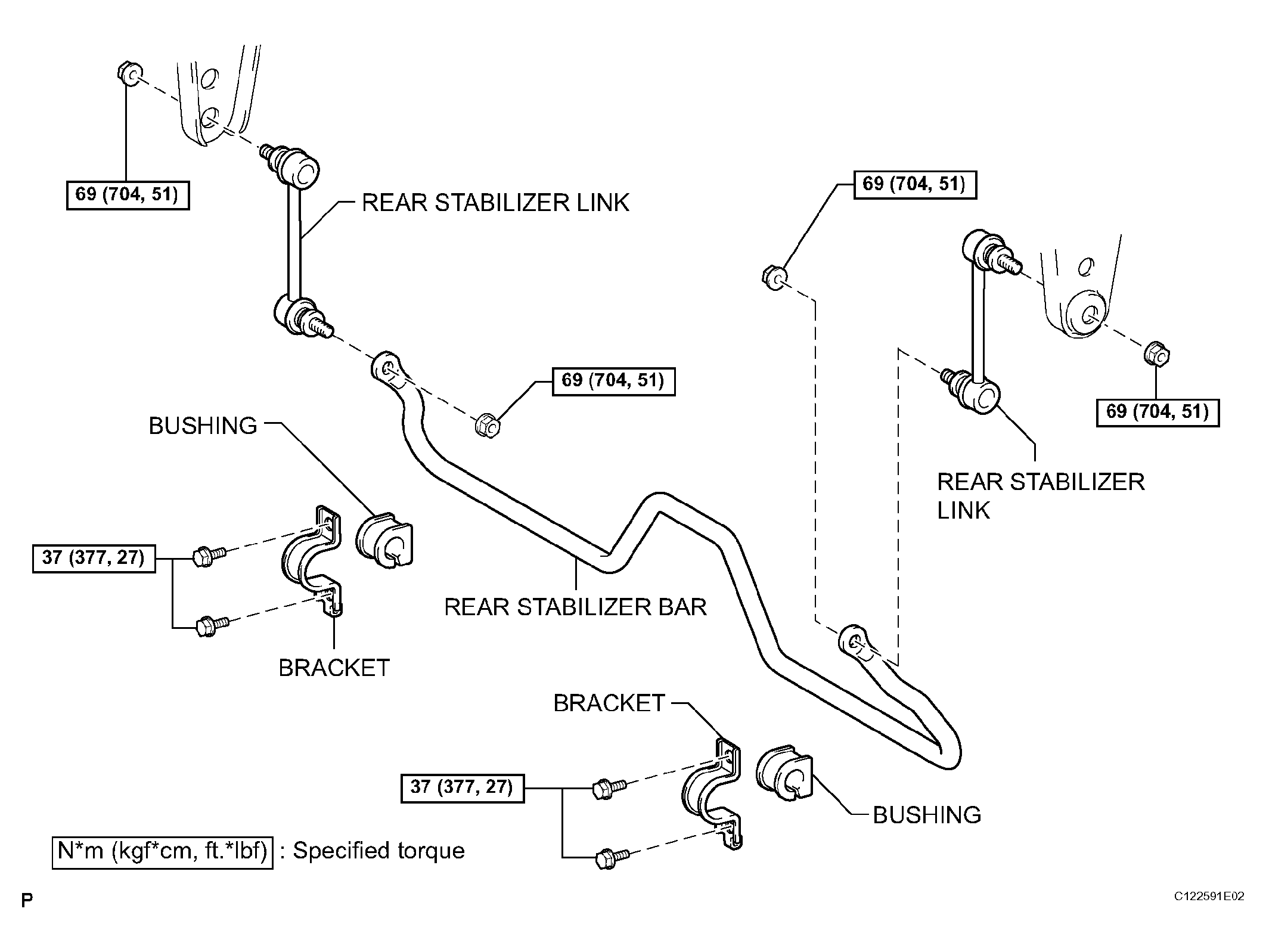

Fig 1: Identifying Rear Stabilizer Bar Components & Replacements

G04509324

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
