Rear Shock Absorber With Coil Spring: Components

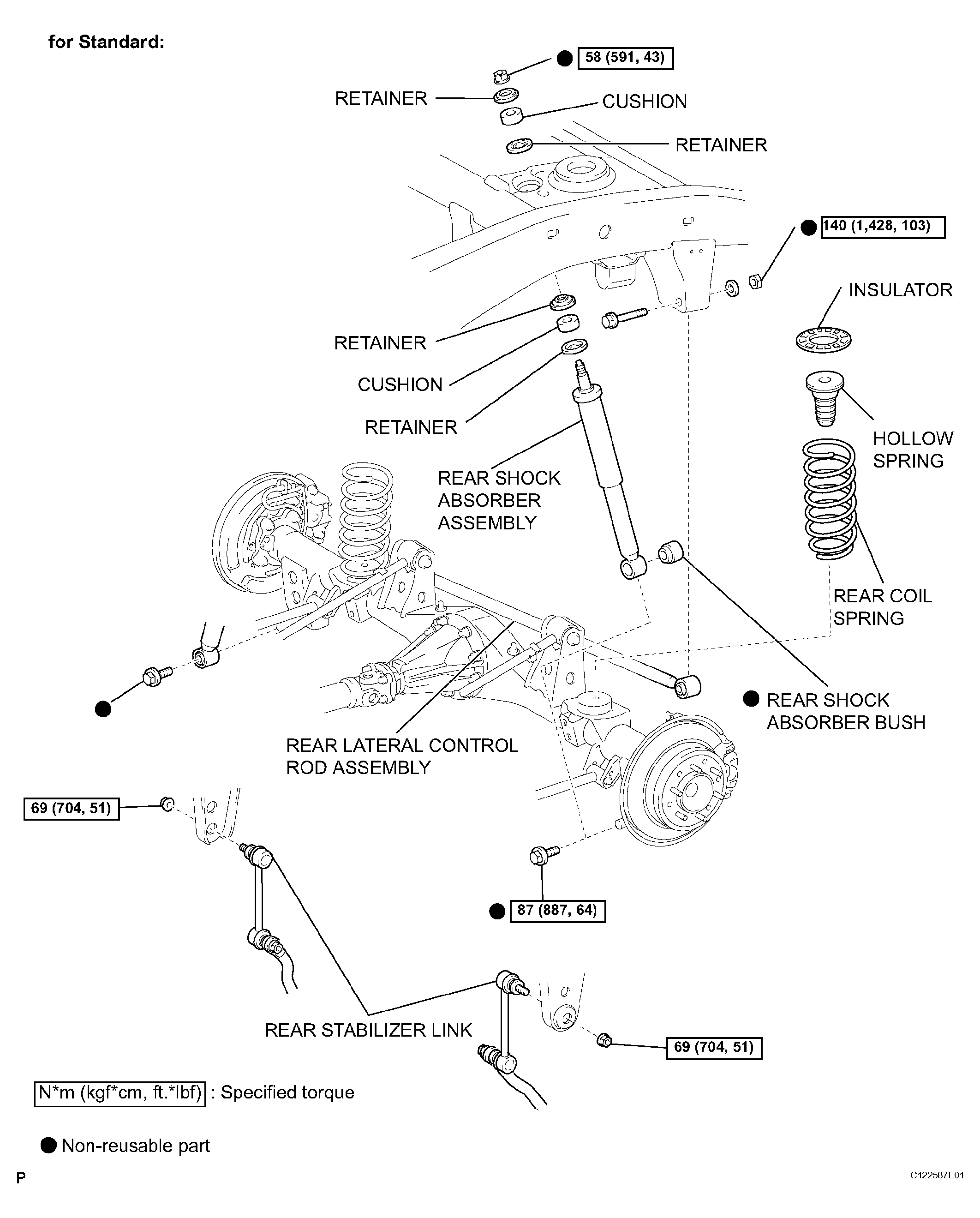

Fig 1: Identifying Rear Shock Absorber With Coil Spring Components & Replacements (1 Of 2)
G04509304Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

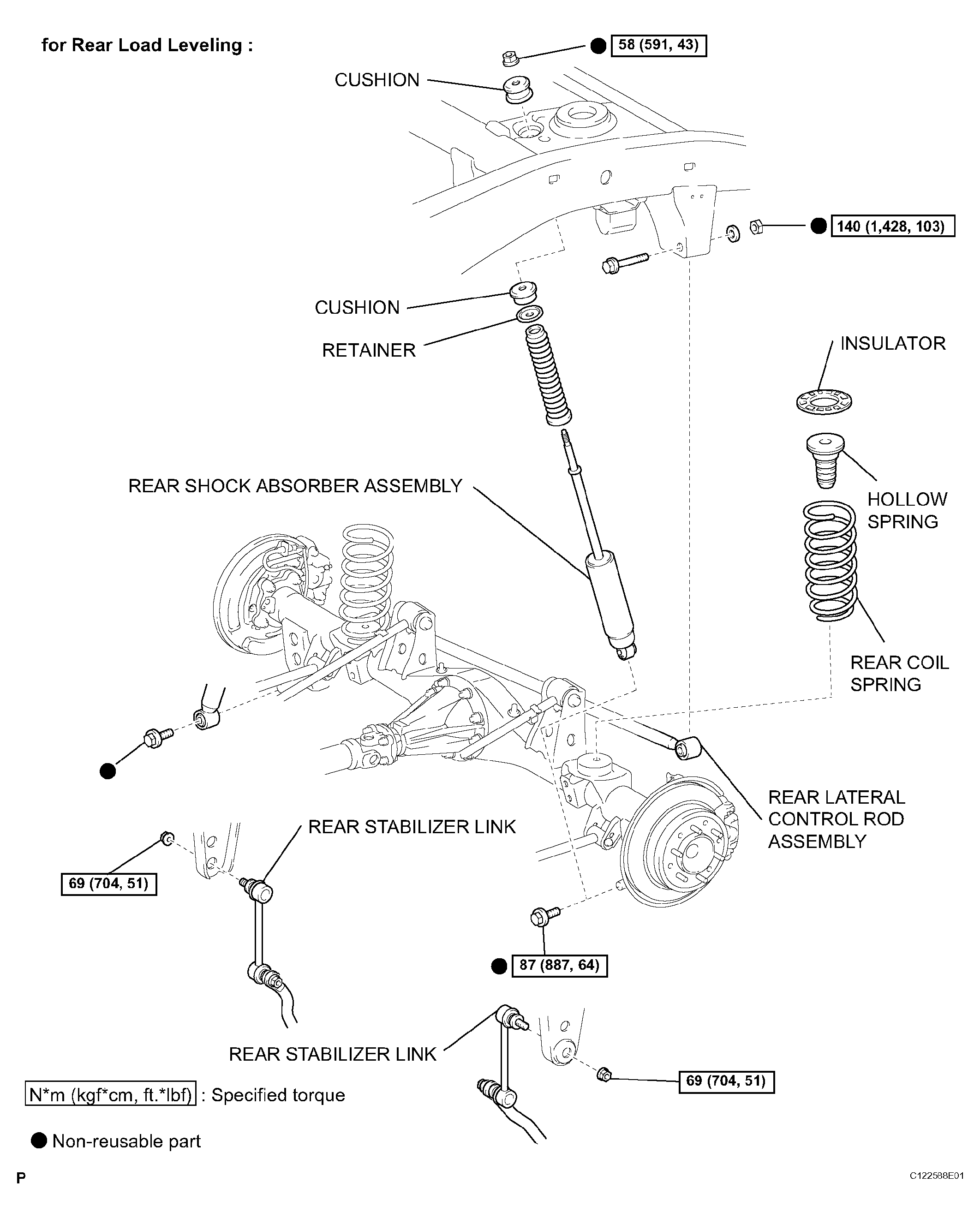

Fig 2: Identifying Rear Shock Absorber With Coil Spring Components & Replacements (2 Of 2)
G04509305Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
