Rear Lower Control Arm: Components

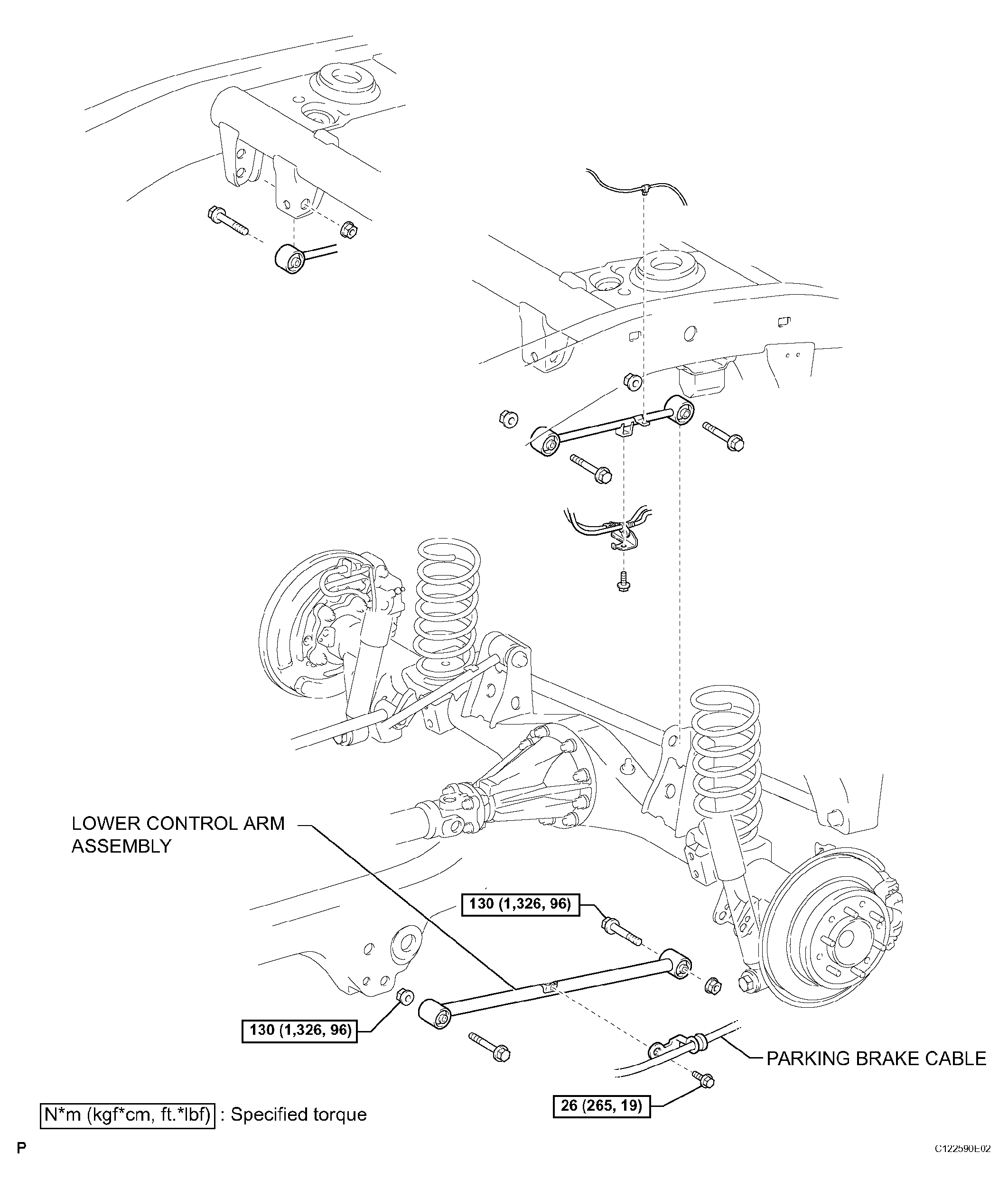

Fig 1: Identifying Rear Lower Control Arm Components & Replacements

G04509320

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
