Rear Lateral Control Rod: Removal

SUPPORT REAR AXLE HOUSING WITH JACK
REMOVE REAR LATERAL CONTROL ROD ASSEMBLY
1. Remove the 2 bolts, nut, washer and lateral control rod.
  Torque: 140 N*m (1, 428 kgf*cm, 103 ft.*lbf) 130 N*m (1, 326 kgf*cm, 96 ft.*lbf)

  HINT:

  At the time of installation, please refer to the following items.
  - Replace the used nut with a new one.
  - After stabilizing the suspension, torque the nut and bolt.

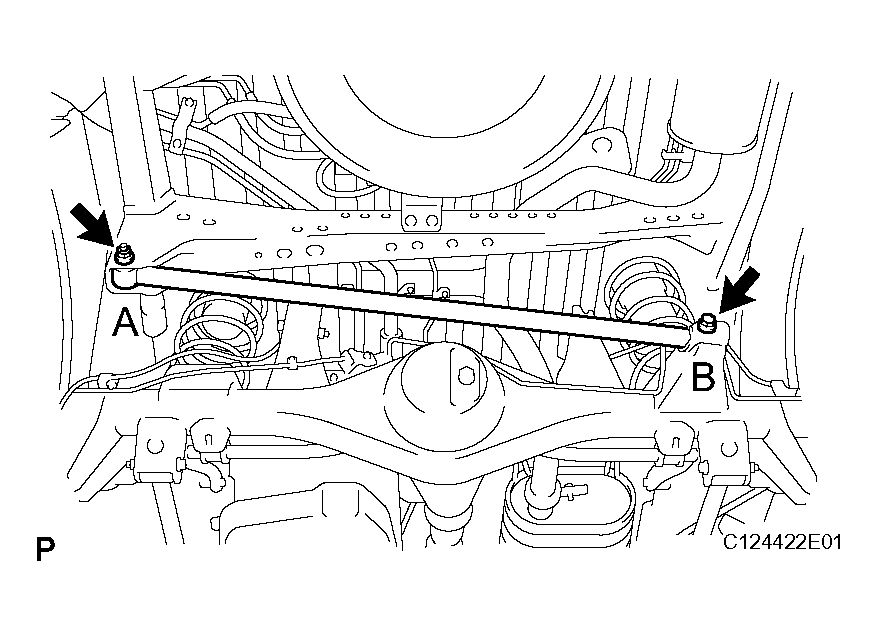

  Fig 1: Removing Rear Lateral Control Rod Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
