Rear Lateral Control Rod: Components

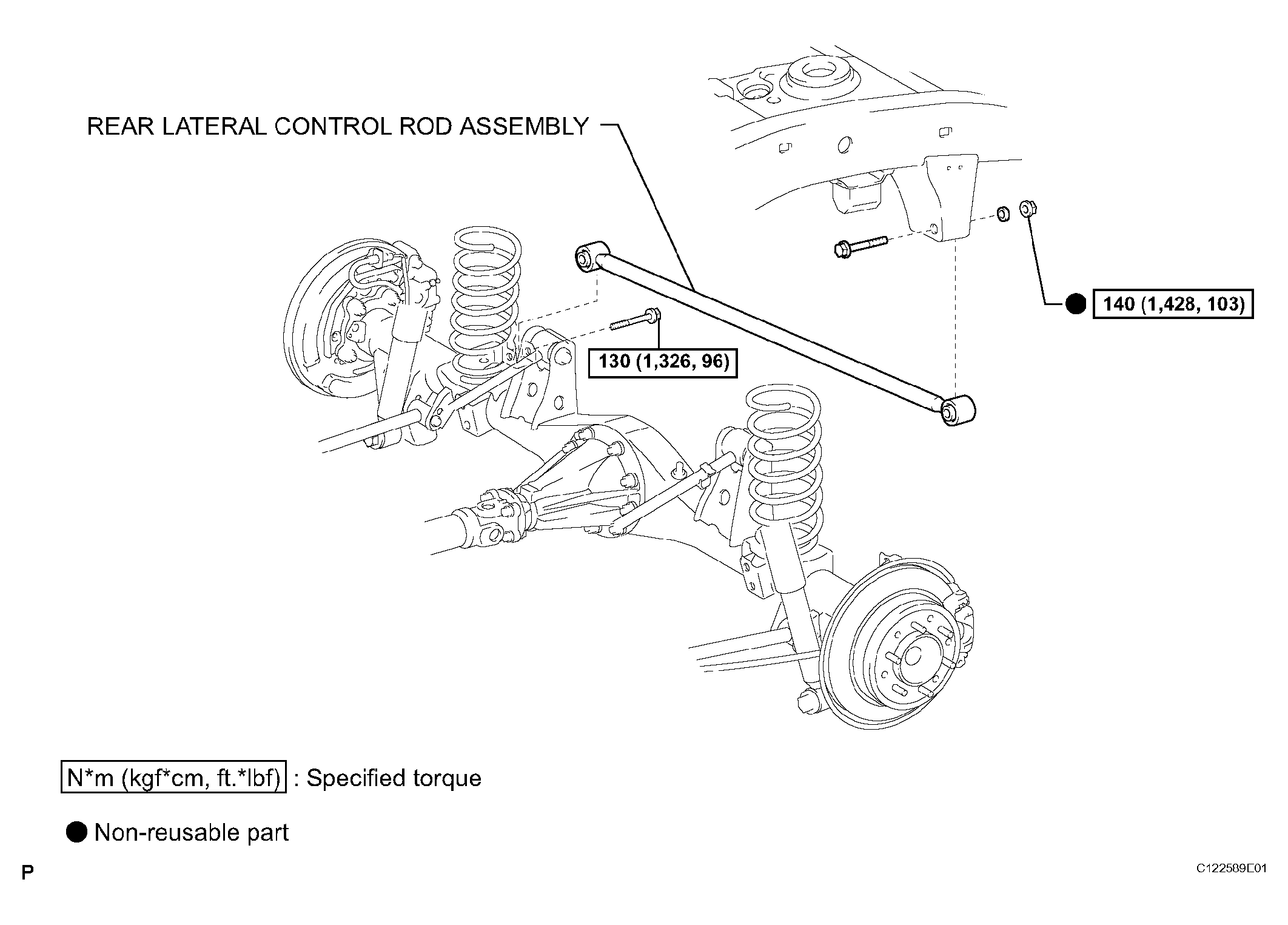

Fig 1: Identifying Rear Lateral Control Rod Components & Replacements

G04509322

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
