Front Wheel Alignment: Adjustment

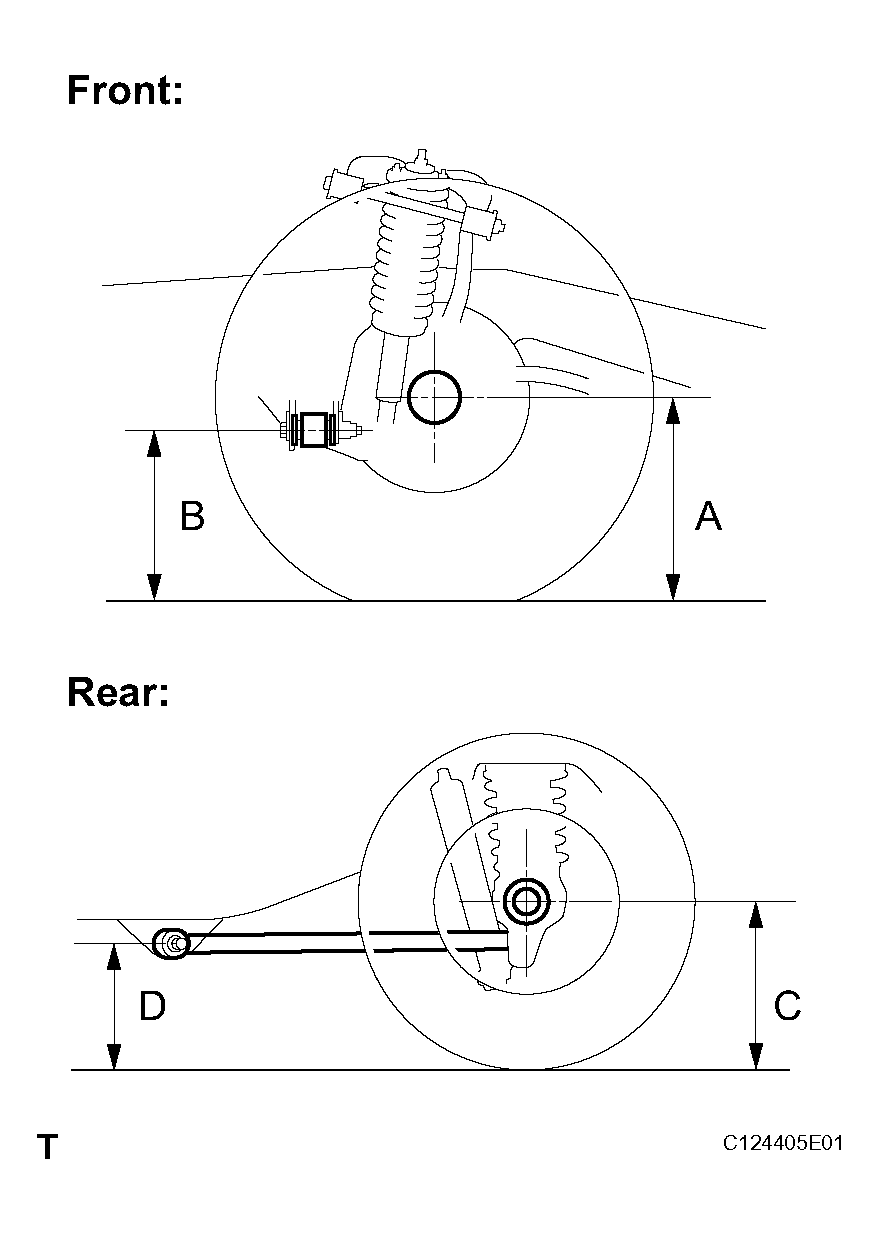

1. Measuring points:

   A: Ground clearance of the front drive shaft center

   B: Ground clearance of the front adjusting cam bolt center

   C: Ground clearance of the rear axle shaft center

   D: Ground clearance of the rear lower control arm front bolt center

   Fig 1: Measuring Vehicle Height

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   NOTE: Vehicle Model code information in the following chart is available in the MODEL CODE IDENTIFICATION article.
   VEHICLE HEIGHT



   Vehicle Model	A - B	C - D
   UCK35L-GKBSKA Tire size: P245/70R16	69.7 mm (2.74 in.)	76.2 mm (3.00 in.)
   UCK35L-GKBSKA Tire size: P265/70R16 and P265/65R17	69.5 mm (2.74 in.)	75.5 mm (2.97 in.)
   UCK35L-GKBLKA	71.6 mm (2.82 in.)	77.3 mm (3.04 in.)
   UCK45L-GKBSKA	61.6 mm (2.43 in.)	63.8 mm (2.51 in.)
   UCK45L-GKBLKA	62.8 mm (2.47 in.)	65.2 mm (2.57 in.)

   Vehicle height (Air suspension models)

   NOTE: Vehicle Model code information in the following chart is available in the MODEL CODE IDENTIFICATION article.
   VEHICLE HEIGHT (AIR SUSPENSION MODELS)



   Vehicle Model	A - B	C - D
   UCK35L-GKBSKA Tire size: P245/70R16	68.5 mm (2.69 in.)	74.8 - 104.8 mm (2.94 - 4.13 in.)
   UCK35L-GKBSKA Tire size: P265/70R16 and P265/65R17	68.3 mm (2.69 in.)	74.1 - 104.1 mm (2.92 - 4.10 in.)
   UCK35L-GKBLKA	70.3 mm (2.77 in.)	74.6 - 104.6 mm (2.94 - 4.12 in.)
   UCK45L-GKBSKA	60.5 mm (2.38 in.)	61.0 - 91.0 mm (2.40 - 3.58 in.)
   UCK45L-GKBLKA	61.8 mm (2.43 in.)	61.3 - 91.3 mm (2.41 - 3.59 in.)

   NOTE: Before inspecting the wheel alignment, adjust the vehicle height to the specified value.

   If the vehicle height is not as specified, try to adjust it by pushing down on or lifting the body.

1. Follow the specific instructions of the equipment manufacturer.

Fig 2: Installing Camber-Caster-Kingpin Gauge Or Position Vehicle On Wheel

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Camber

Caster (Except air suspension models)

Caster (Air suspension models)

Steering axis inclination

If the steering axis inclination is not within the specified values, after the camber and caster have been correctly adjusted, recheck the steering knuckle and front wheel bearing for looseness.

1. Loosen the front and/or rear adjusting cam set bolts.
2. Adjust the camber and caster by turning the front and/or rear adjusting cams (See Fig 4 ).

   HINT:

   Try to adjust the camber and caster to the center of the specified values.

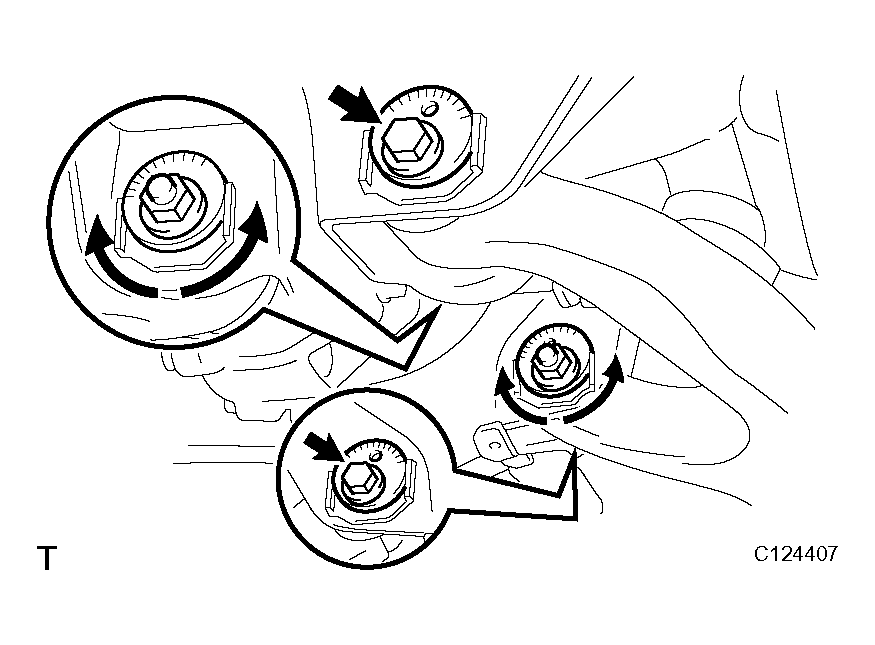

   Fig 3: Adjusting Camber & Caster

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. How to read the adjustment chart (Example).
   1. Find the applicable wheel alignment standard value for the particular model.
   2. Mark the selected standard value on the adjustment chart.

      Example:

      • Camber: 0°08' (0.13°)
      • Caster: 2°59' (2.98°)

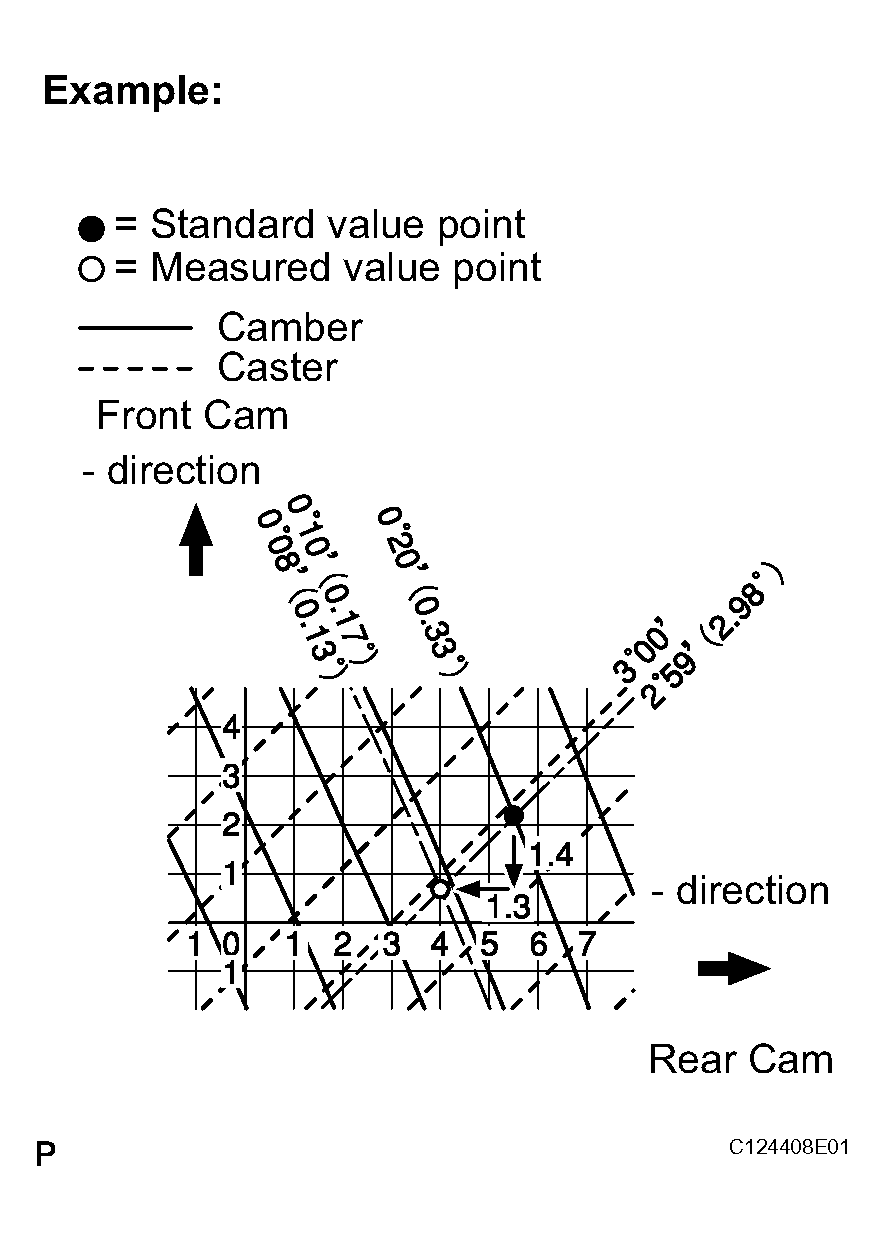

      Fig 4: Example Of Adjustment Chart

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   3. Measure the present wheel alignment value with the vehicle unloaded.
   4. Mark the measured present value on the adjustment chart.

      Example:

      • Camber: 0°20' (0.33°)
      • Caster: 2°59' (2.98°)
   5. As shown in Fig 5 and Fig 6 , read the distance from the measured value to the standard value, and adjust the front and/or rear adjusting cams accordingly.

      Amount to turn the adjusting cams (by graduation):

      Example

      • Front cam: 1.4 (+ direction)
      • Rear cam: 1.3 (+ direction)

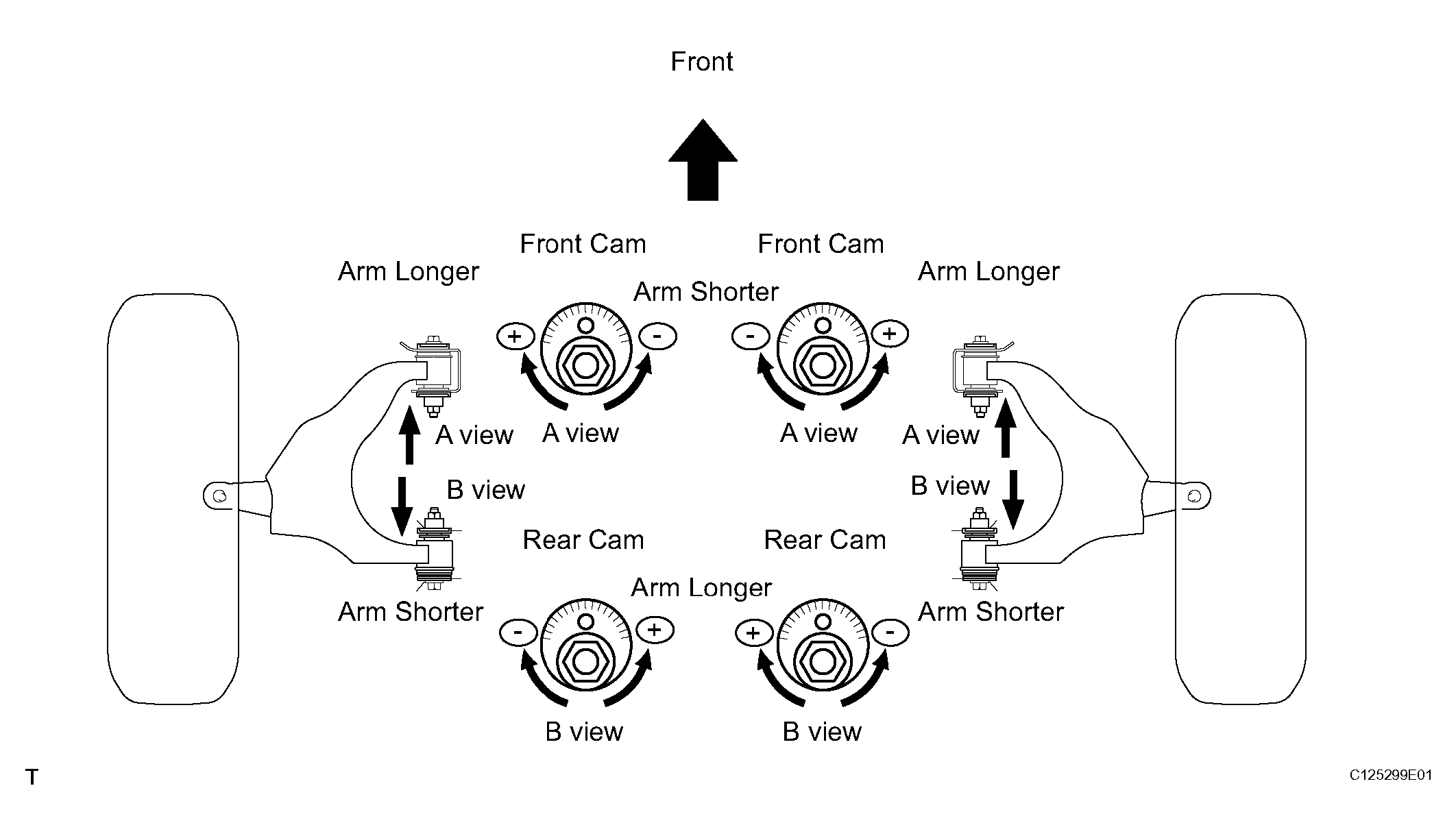

      Fig 5: Adjusting Camber & Caster (1 Of 2)

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

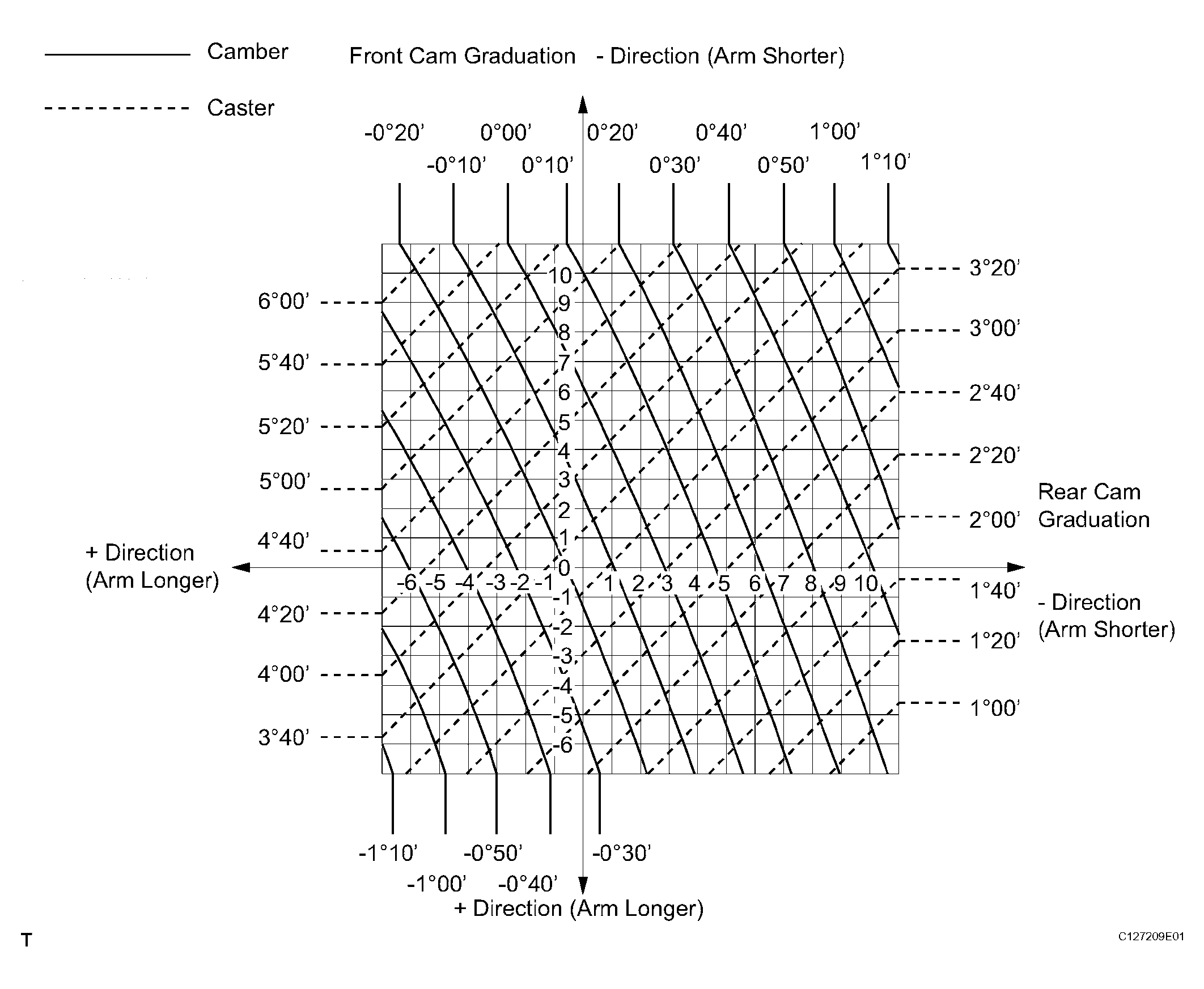

      Fig 6: Adjusting Camber & Caster (2 Of 2)

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Torque the front and/or rear adjusting cam set bolts.

   Torque: 130 N*m (1, 325 kgf*cm, 96 ft.*lbf)

Fig 7: Inspecting Toe-In

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Toe-in (total)

If the toe-in is not within the specified values, adjust the rack ends.

1. Remove the 2 clips.
   Fig 8: Removing Clips

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Loosen the tie rod end lock nuts.
3. Turn the right and left rack ends by an equal amount to adjust the toe-in.

   HINT:

   Try to adjust the toe-in to the center of the specified values.

4. Make sure that the lengths of the right and left rack ends are the same.

   Rack end length difference: 1.5 mm (0.059 in.) or less

   Fig 9: Making Sure Lengths Of Rack Ends Are Same

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
5. Tighten the tie rod end lock nuts.

   Torque: 55 N*m (560 kgf*cm, 41 ft.*lbf)

6. Place the boots on the seats and install the clips.

   HINT:

   Make sure that the boots are not twisted.

7. Inspect the wheel angle.
   1. Turn the steering wheel fully and measure the turning angle.

      Wheel turning angle

      NOTE: Vehicle Model code information in the following chart is available in the MODEL CODE IDENTIFICATION article.
      WHEEL TURNING ANGLE SPECIFICATION



      Model	Inside wheel	Outside wheel: Reference
      UCK35L-GKBSKA	-35°24' (-35.40°)	32°10 (32.16°) 3°154' (31.90°) (1)
      UCK35L-GKBLKA	-35°22' (-35.36°)	32°07' (32.07°)
      UCK45L-GKBSKA	-35°37' (-35.61°)	32°17' (32.28°)
      UCK45L-GKBLKA	-35°35' (-35.59°)	32°16' (32.26°)
      (1) Air suspension model with P265/65R17 tire only.

      Fig 10: Inspecting Wheel Angle

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      If the right and left wheel turning angles differ from the specified values, readjust the toe-in and wheel angle to within the specified values. At this time, make sure that the lengths of the right and left rack ends are the same.

      Rack end length difference: 1.5 mm (0.059 in.) or less
