Front Stabilizer Bar: Installation

1. Install the 2 bushings, retainers and stabilizer bar link to the stabilizer bar.
2. Hold the stabilizer bar link, and install a new nut.

   Torque: 19 N*m (190 kgf*cm, 14 ft.*lbf)

3. Use the same procedures described above to the other side.

1. Install the 2 bushings with their cutout facing to the rearward of the stabilizer bar.
2. Install the stabilizer bar and 2 brackets with the nuts and bolts.

   Torque: 37 N*m (377 kgf*cm, 27 ft.*lbf)

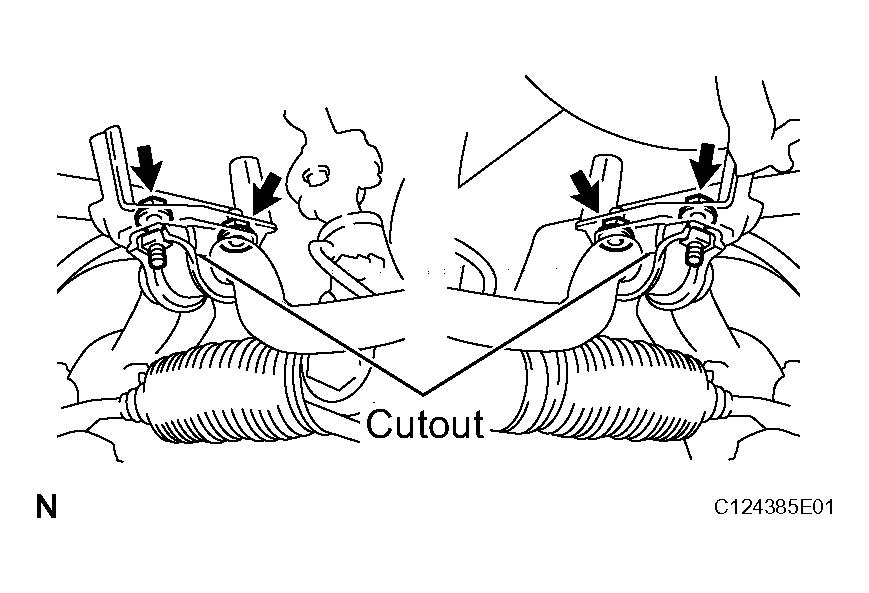

   Fig 1: Installing Front Stabilizer Bar

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Torque: 69 N*m (700 kgf*cm, 51 ft.*lbf)

HINT:

If the ball joint turns together with the nut, use a hexagon (6 mm) wrench to hold the nut.
