Front Stabilizer Bar: Components

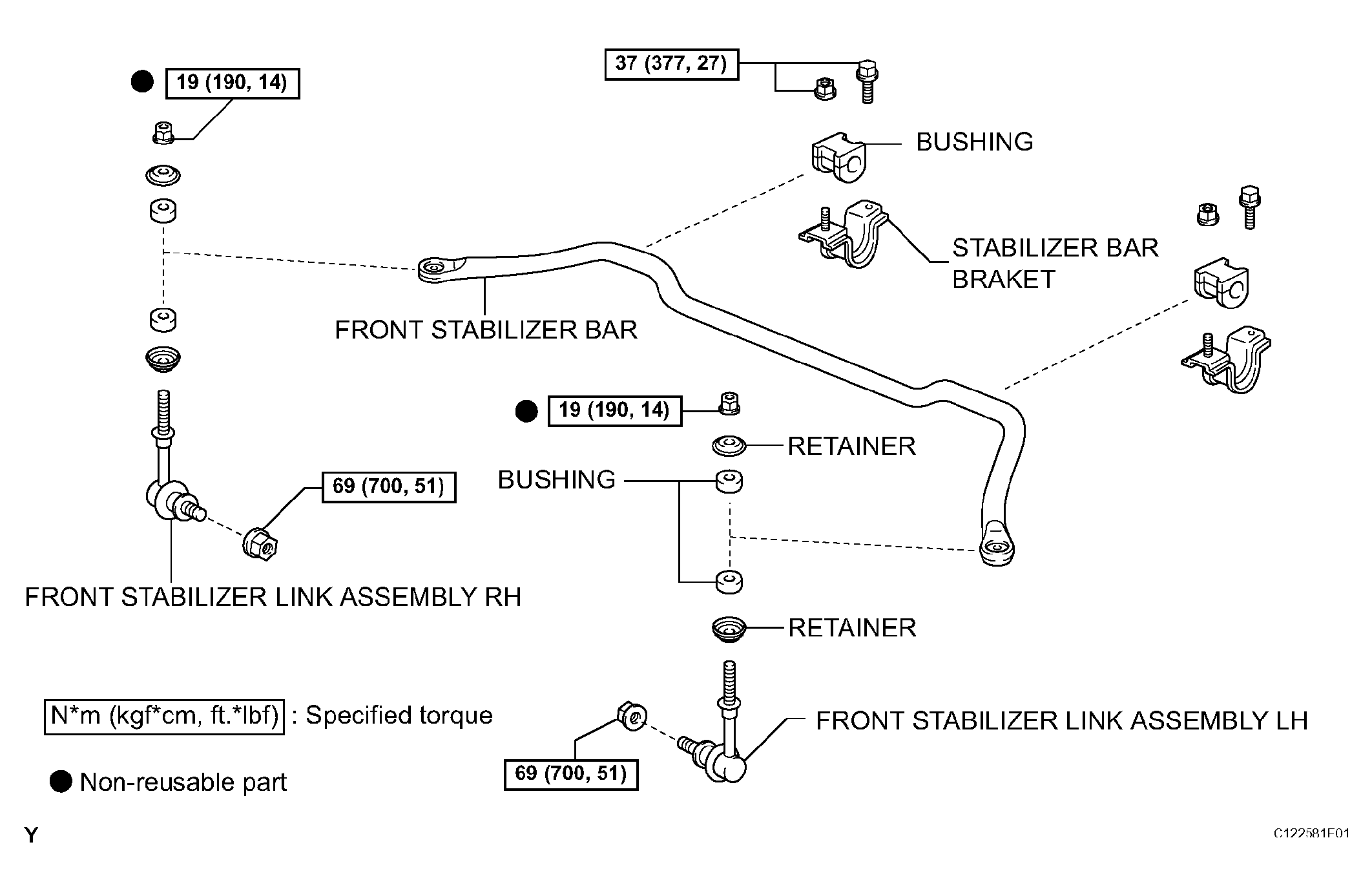

Fig 1: Identifying Front Stabilizer Bar Components & Replacements

G04509294

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
