Front Shock Absorber With Coil Spring: Components

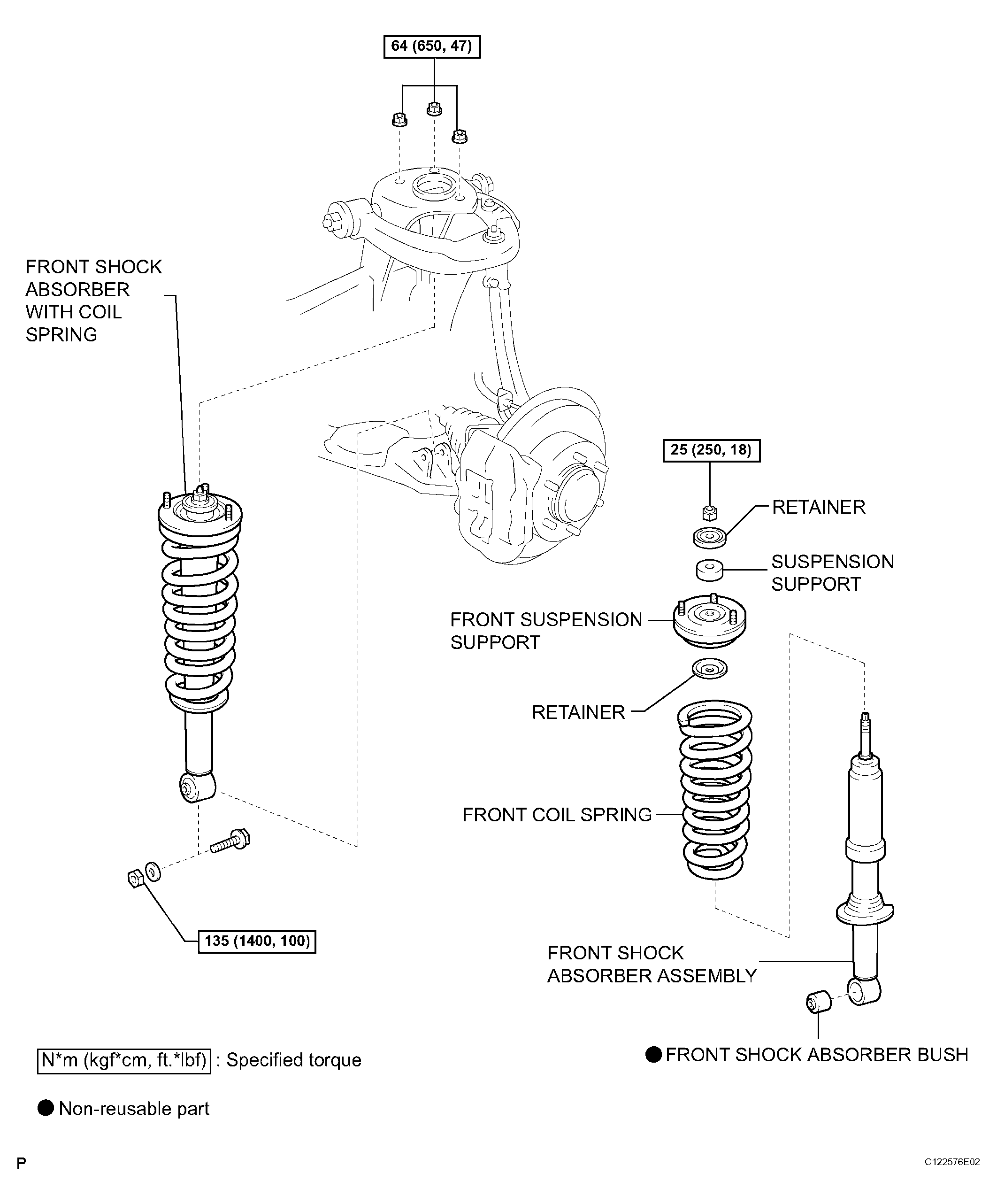

Fig 1: Identifying Front Shock Absorber With Coil Spring Components & Replacements

G04509255

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
