Height Control Sensor: Removal

DISCONNECT CONNECTOR
DISCONNECT HEIGHT CONTROL SENSOR LINK
1. Put matchmarks on the height control sensor link and bracket.
2. Remove the nut and disconnect the sensor link.
  Torque: 5.4 N*m (55 kgf*cm, 48 in.*lbf)

  Fig 1: Putting Matchmarks On Height Control Sensor Link & Bracket
  Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
REMOVE REAR HEIGHT CONTROL SENSOR LH
1. Disconnect the wire harness clamp.
2. Remove the 2 bolts and rear height control sensor.
  Torque: 29 N*m (300 kgf*cm, 21 ft.*lbf)

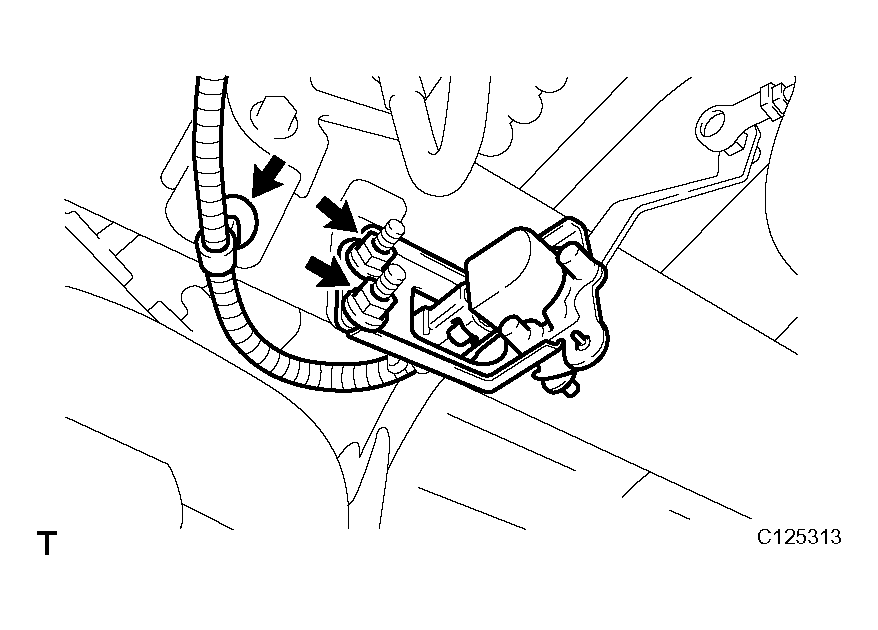

  Fig 2: Removing Bolts & Rear Height Control Sensor
  Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
