Height Control Compressor: Removal

(See REAR BUMPER )

1. Remove the holder.
2. Spread the clip and slowly pull the height control tube straight out.
   NOTE: Do not remove the clip from the union except when replacing it.
3. Remove the O-ring.

   HINT:

   Perform the following before installation:

   • Coat a new O-ring with MP grease.
   • Push the air tube in straight to connect it until the clip makes a "clicking" sound.

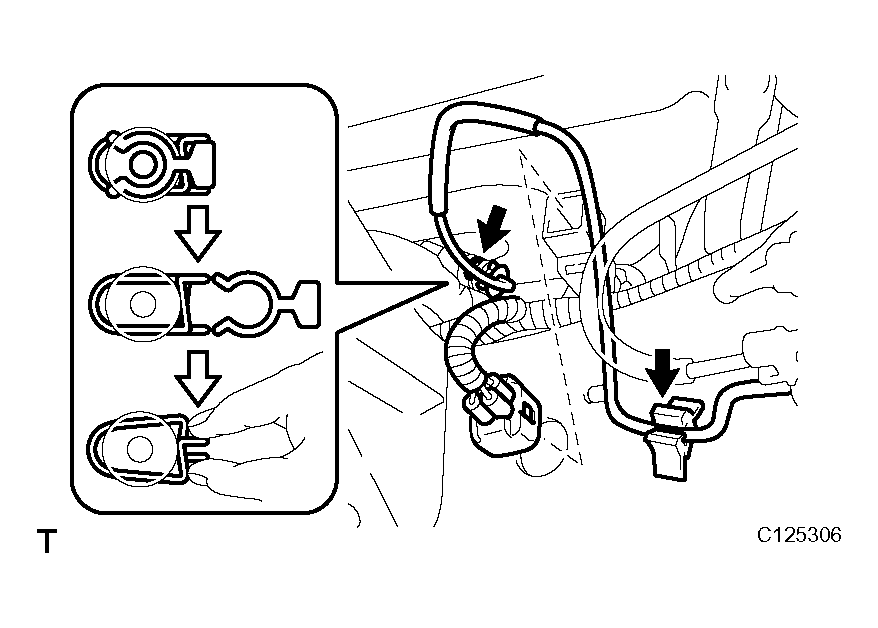

     Fig 1: Removing Height Control Tube No.2

     Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

HINT:

Check for leakage after installation (See PRECAUTION  ).

1. Separate the hose from the compressor cover.
2. Remove the 3 clips and compressor cover.
3. Remove the hose.
4. Disconnect the wire harness from the clamp.
5. Remove the 3 bolts and height control compressor and dryer.

   Torque: 29 N*m (300 kgf*cm, 21 ft.*lbf)

6. Disconnect the 3 wire harness clamps and hose.

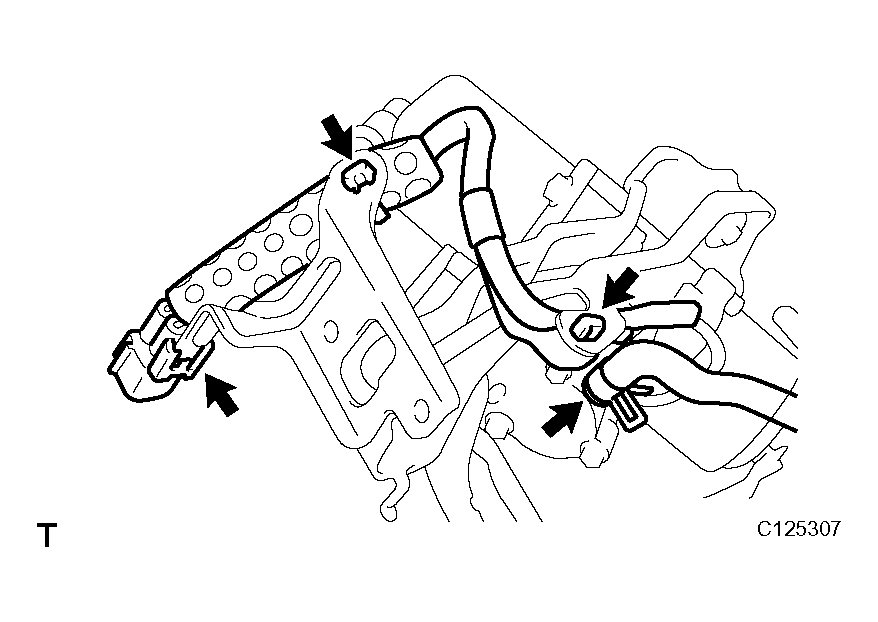

   Fig 2: Disconnecting Wire Harness Clamps & Hose

   Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
7. Remove the 3 bolts, bushing and the bracket from the height control compressor.

   Torque: 5.9 N*m (60 kgf*cm, 52 in.*lbf)

8. Remove the 2 bolts and the filter from the height control compressor.

   Torque: 6.4 N*m (65 kgf*cm, 56 in.*lbf)

   Fig 3: Removing Bolts, Bushing And Bracket From Height Control Compressor

   Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
