Seat Belt System: Components

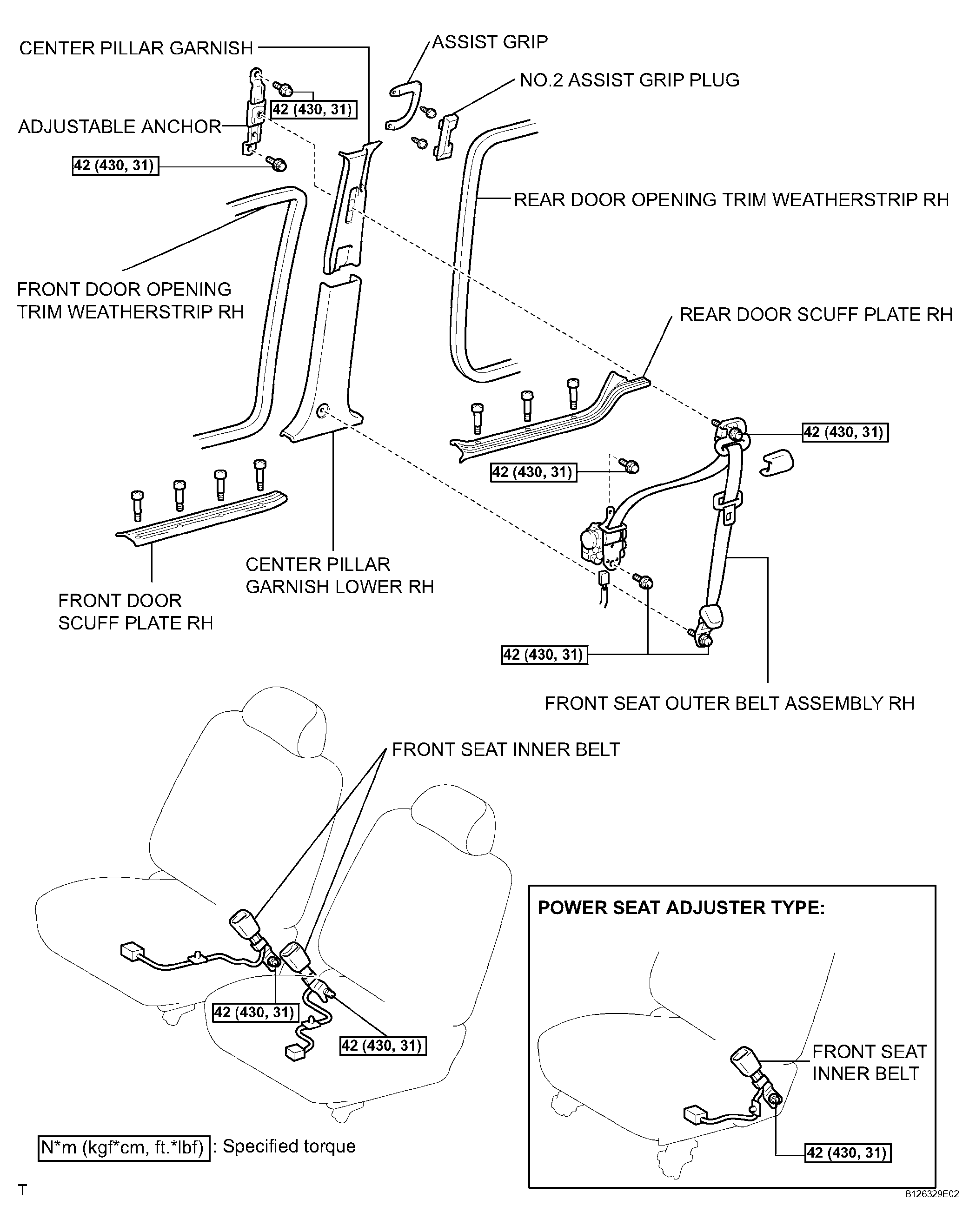

Fig 1: Identifying Seat Belt System Components (1 Of 3)
G04510327Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

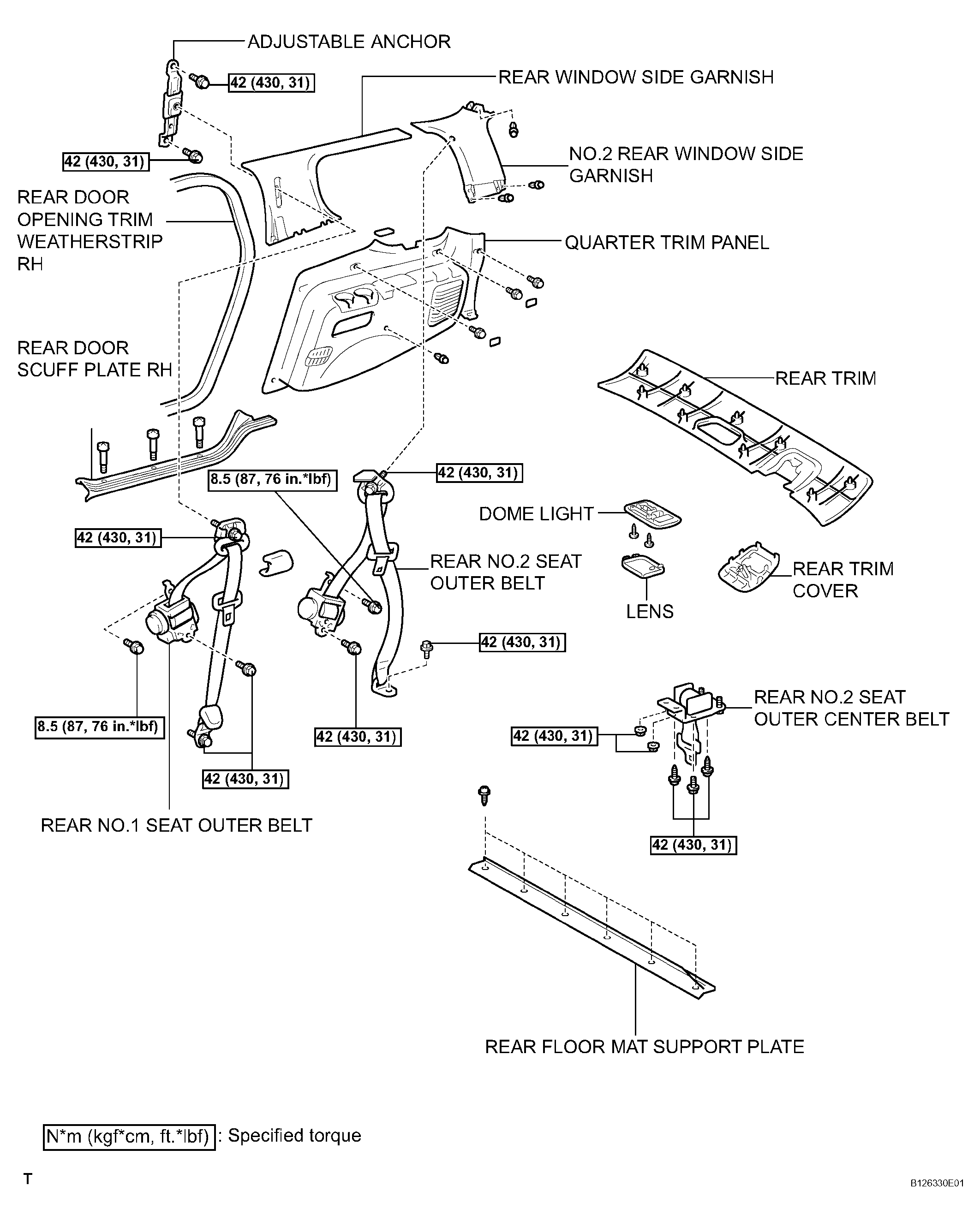

Fig 2: Identifying Seat Belt System Components (2 Of 3)
G04510328Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

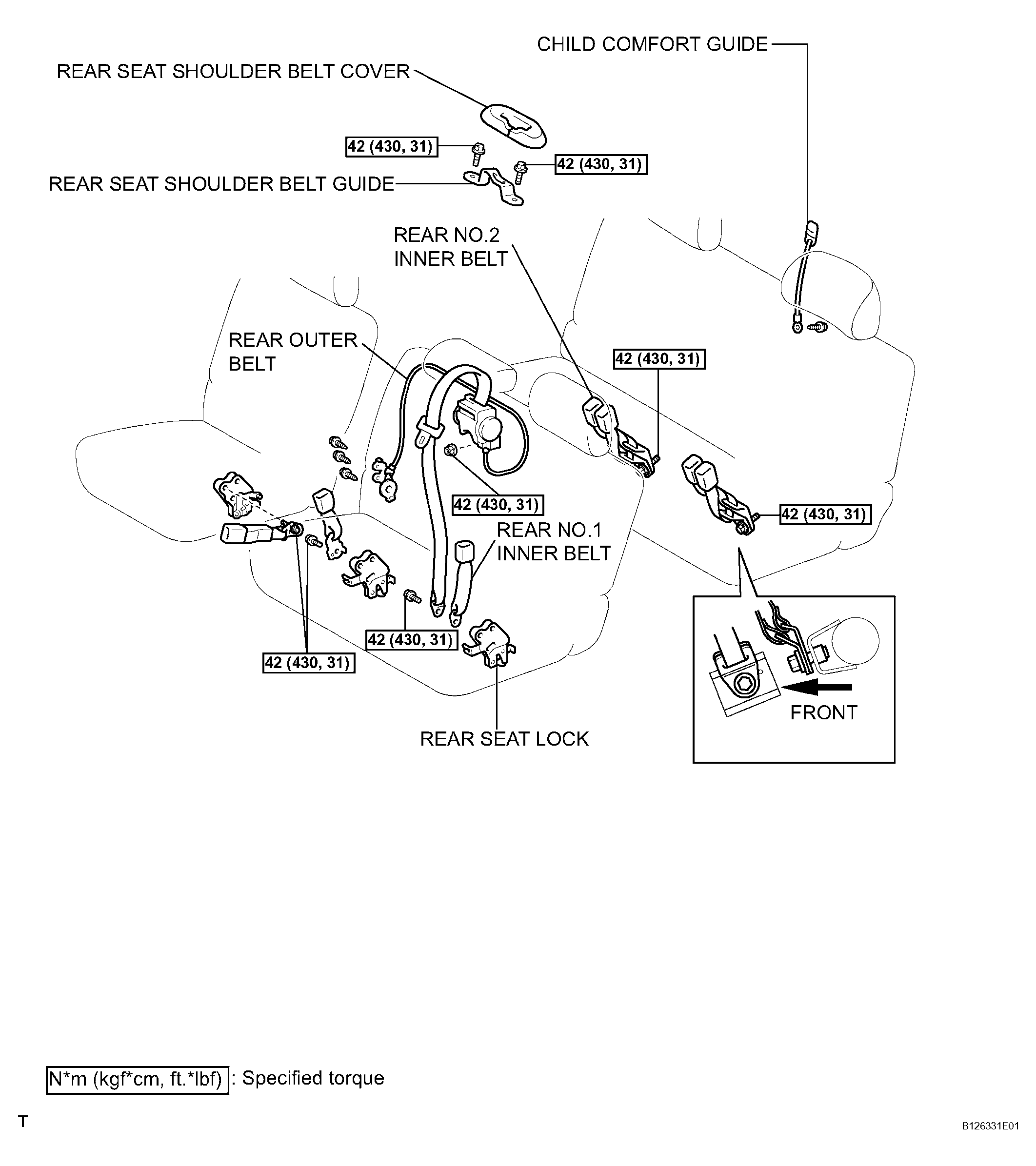

Fig 3: Identifying Seat Belt System Components (3 Of 3)
G04510329Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
