On-Vehicle Inspection

INSPECT FUEL TANK AND LINE
1. Check the fuel lines for cracks or leakage, and all connections for deformation.
2. Check the fuel tank vapor vent system hoses and connections for looseness, sharp bends or damage.
3. Check the fuel tank for deformation, cracks, fuel leakage or tank band looseness.
4. Check the filler neck for damage or fuel leakage.

  Fig 1: Checking Fuel Lines For Cracks Or Leakage
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

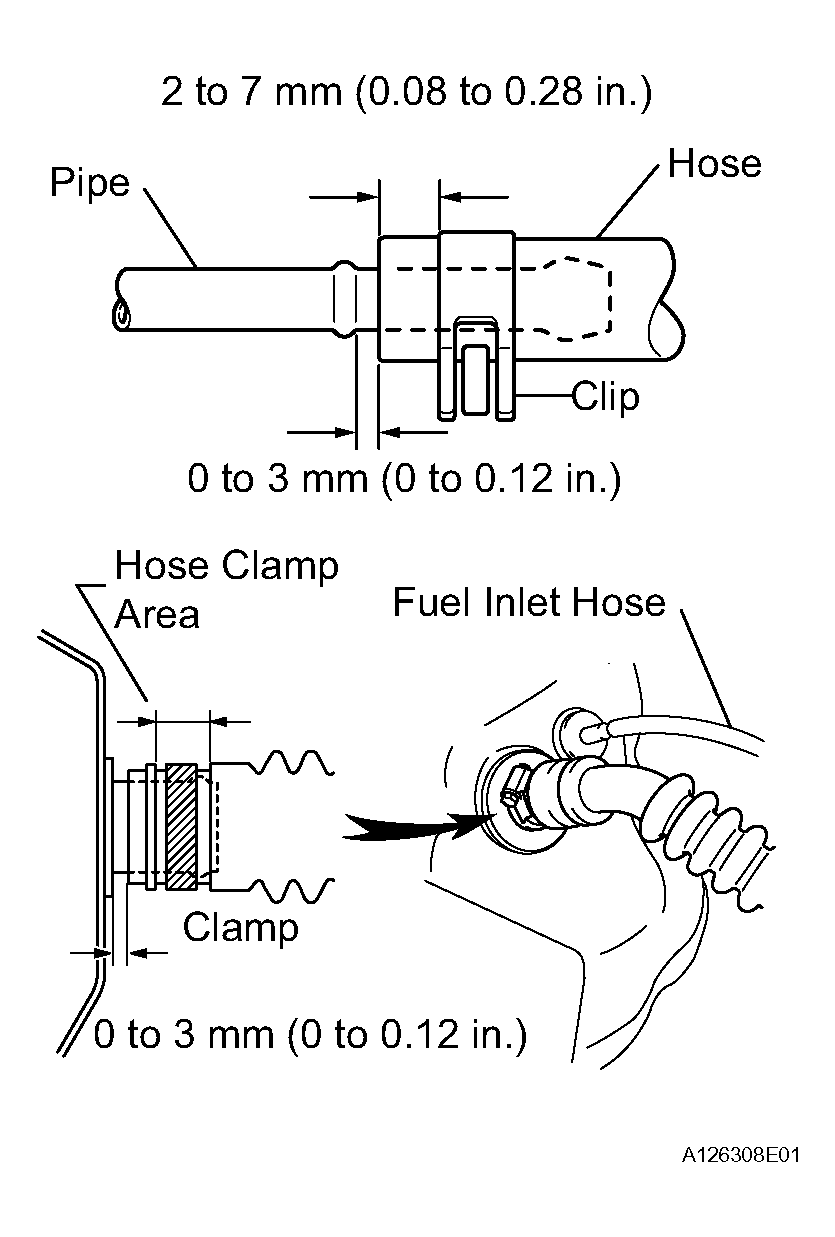

5. Hose and pipe connections are as shown in the illustration.
  If a problem is found, repair or replace the parts as necessary.

  Fig 2: Identifying Hose & Pipe Connections
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
