Fuel Pressure Regulator: Removal

  1. REMOVE FUEL PRESSURE REGULATOR
    1. Disconnect the vacuum hose from intake air resonator.
    2. Disconnect the fuel return hose from the pressure regulator.
      CAUTION: Put a shop towel under the pressure regulator.

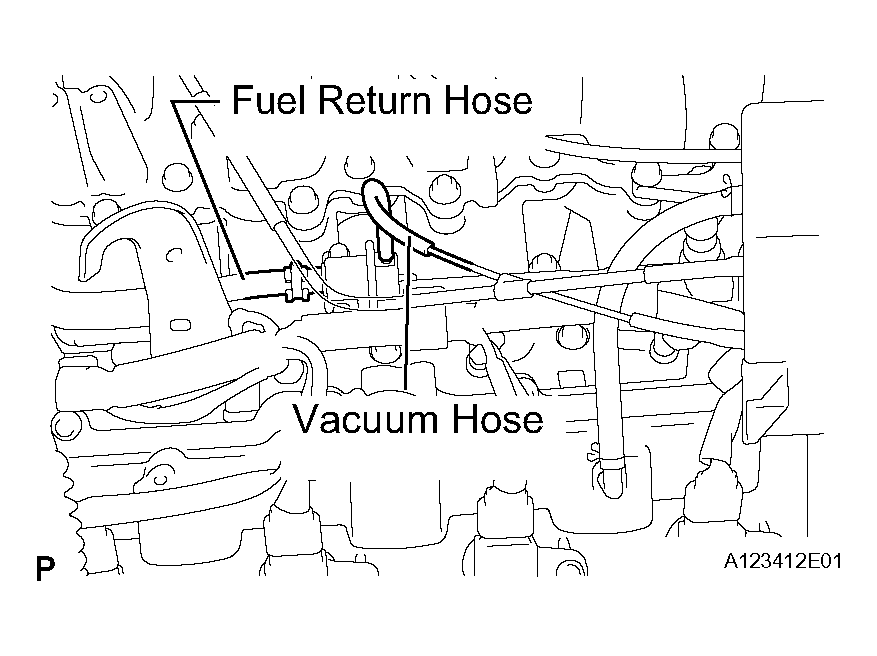

      Fig 1: Disconnecting Fuel Return Hose From Pressure Regulator
      G04507453Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Remove the 2 bolts, and pull out the pressure regulator.
    4. Remove the O-ring from the pressure regulator.
      Fig 2: Removing O-Ring From Pressure Regulator
      G04507454Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
