Home >> Toyota >> 2007 >> Sequoia Limited, RWD >> Repair and Diagnosis >> Engine Mechanical >> Lubrication System >> Engine Lubrication System >> Oil Nozzle >> Components

Oil Nozzle: Components

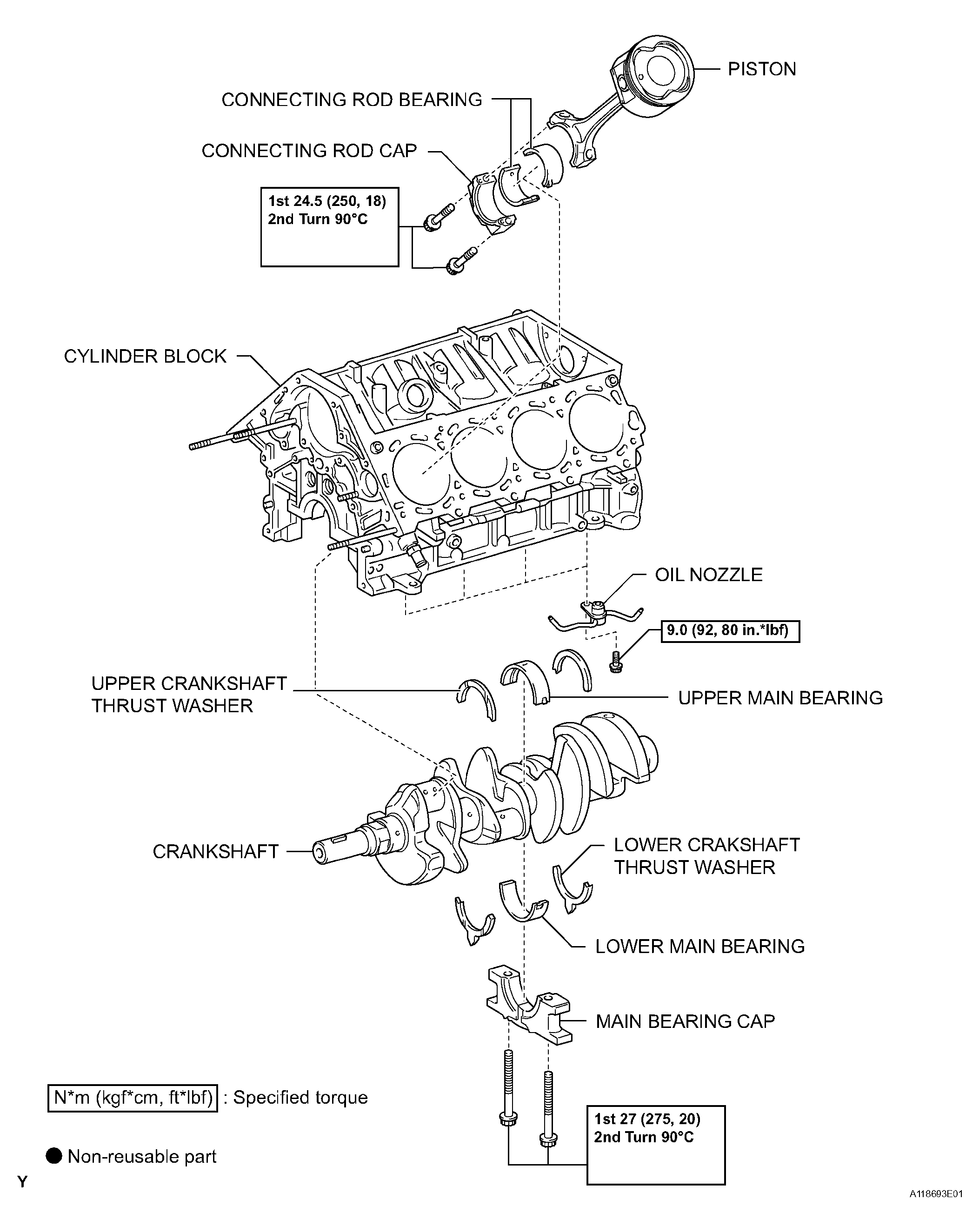

Fig 1: Oil Nozzle Replacement Components & Torque Specification

G04507660

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
