Engine Oil Cooler: Components

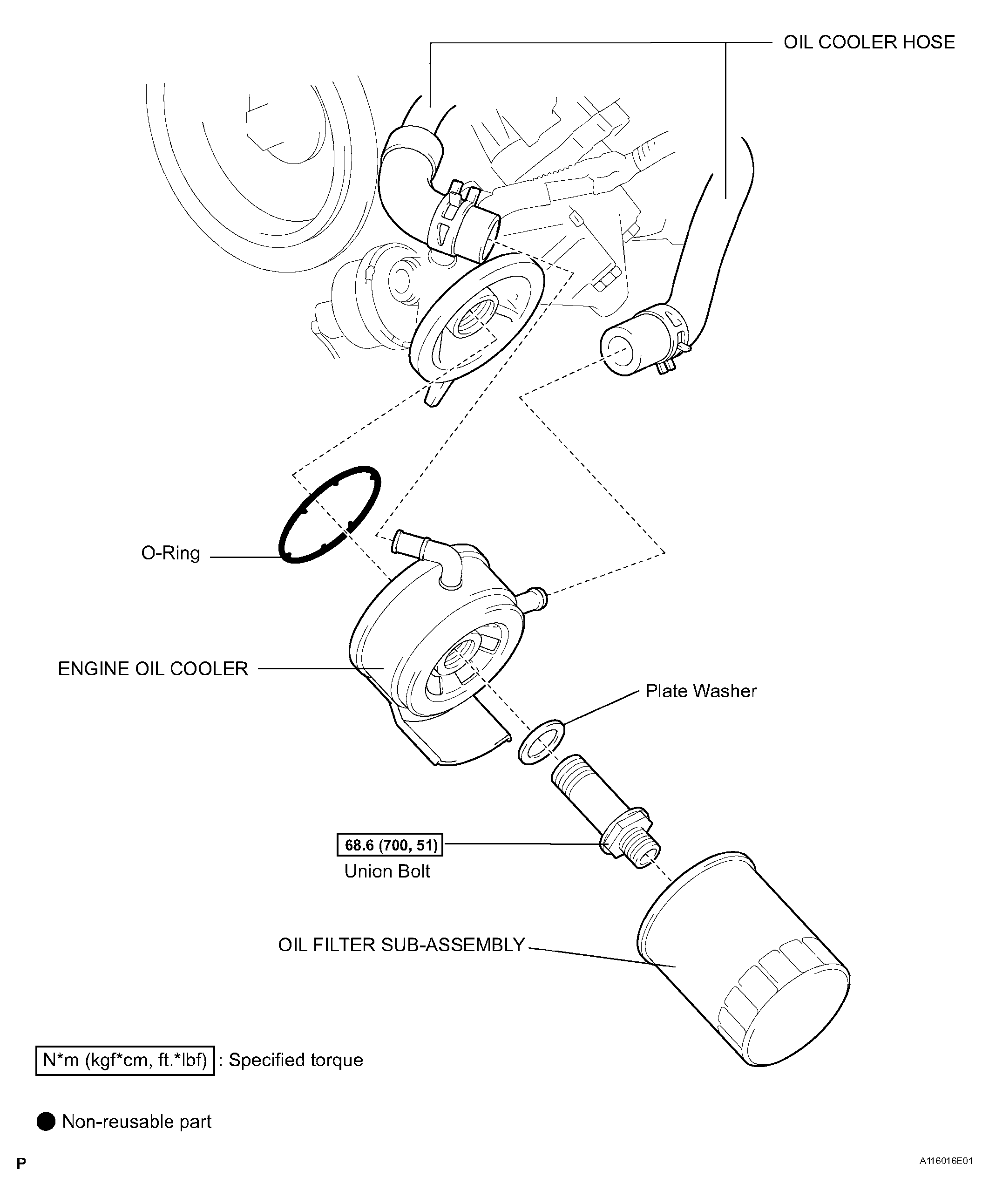

Fig 1: Engine Oil Cooler Replacement Components & Torque Specification

G04507664

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
